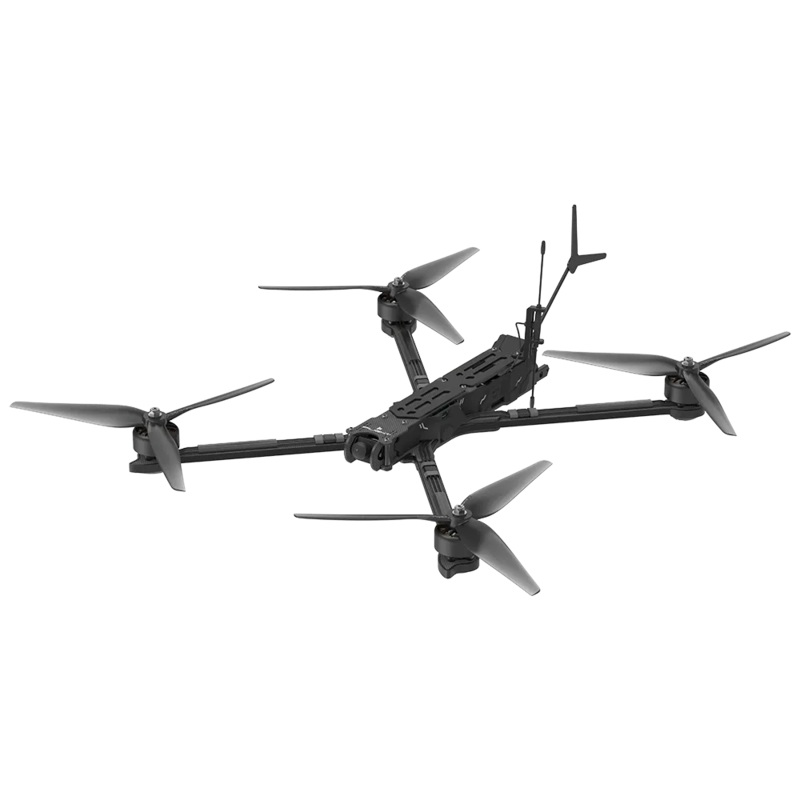

iFlight Chimera CX10 ECO Analog 6S 10inch FPV Drone SPECIFICATIONS

Brand Name: IFLIGHT

Origin: Mainland China

Material: Carbon Fiber

Recommend Age: 14+y

RC Parts & Accs: Antennas

Size: 452mm 10inch

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Certification: CE

Upgrade Parts/Accessories: Frame

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Battery

Quantity: 1 pcs

Technical parameters: Value 2

Model Number: Chimera CX10 ECO

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

Description

• It’s proud to announce the release of theChimera CX10ECOanalog BNF, CX10 6S Analog is a 10″ BNF quadcopter that comes with the BLITZ Whoop 1.6W VTX Video Transmission System, and HQ 10″ 3-Blade propellers. The CX10 has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power; it comes with the XING-E 3110motors, BLITZ ATF435 Flight Controller, and the BLITZ E55S 4-IN-1 ESC, which make this quad a must-have!

Features

• Full 3K Carbon Fiber airframe

• Big size XING-E 3110 with extreme lift and flight performance

• Latest Lightweight Side Panels for Maximum Protection

Not included in BNF Lite Version:

• GPS module

• Anti Spark Filter

Specifications

• Product Name:Chimera CX10ECO Analog 10 inch

• FC: BLITZ ATF435 Flight Controller

• ESC: BLITZ E55S 4-IN-1 2-6S 55A ESC

• Video Transmission: BLITZ Whoop 1.2G 1.6W VTX/BLITZ Whoop 1.6W VTX/ BLITZ Whoop 2.5W VTX

• Frame: 452mm wheelbase

• Motor: XING-E 3110 900KV motors

• Prop: 10X4.5X3 propellers

• Weight: 860g (Without Battery)

• Dimensions (LWH)338x299x34mm

• Max Speed: 140km/h

• Maximum Takeoff Altitude: 6000 m

• Max Hover Time: Approx. 40 mins (with 6S2P 8000mAh no load)

• Payload: 1.5-2.5kg

• Max Wind Speed Resistance: Level 7

• Operating Temperature Range: -10 to 40 C (14 to 104 F)

• Antennas: Single Antenna

• GNSS: No

Video Transmission

BLITZ Whoop 1.2G 1.6W VTX

• Product Name: BLITZ Whoop 1.2G 1.6W VTX

• Output Power: 0-25-400-800-1600mw

• Input Volts: 7-34V

• Working Current: 25mw@12V 410mA, 400mw@12V 470mA, 800mw@12V 490mA, 1600mw@12V 590mA

• Transmission fre: 8CH(1080-1360MHz)

• Antenna Interface: MMCX

• Mounting Hole: 25*25/1.6mm

• Weight: 32g

• Dimensions: 50*30*16mm

BLITZ Whoop 5.8G 1.6W VTX

• Product Name: BLITZ Whoop 5.8G 1.6W VTX

• Output Power: 0-25-400-800-1600mw

• Input Volts: 12V

• Working Current: pit @40mA25mw@150mA400mw@330mA800mw@460mA1600mw@660mA

• Transmission fre: 40CH(A-B-E-F-R)

• Antenna Interface: IPEX

• Mounting Hole: 25*25/1.6mm

• Weight: 16.5g (Antenna not included)

• Dimensions: 37mm*31.5mm*10mm

BLITZ Whoop 5.8G 2.5W VTX

• Product Name: BLITZ Whoop 5.8G 2.5W VTX

• Output Power: 0-25-400-1000-2500mw

• Input Volts: 7-34V

• Wor
