Overview

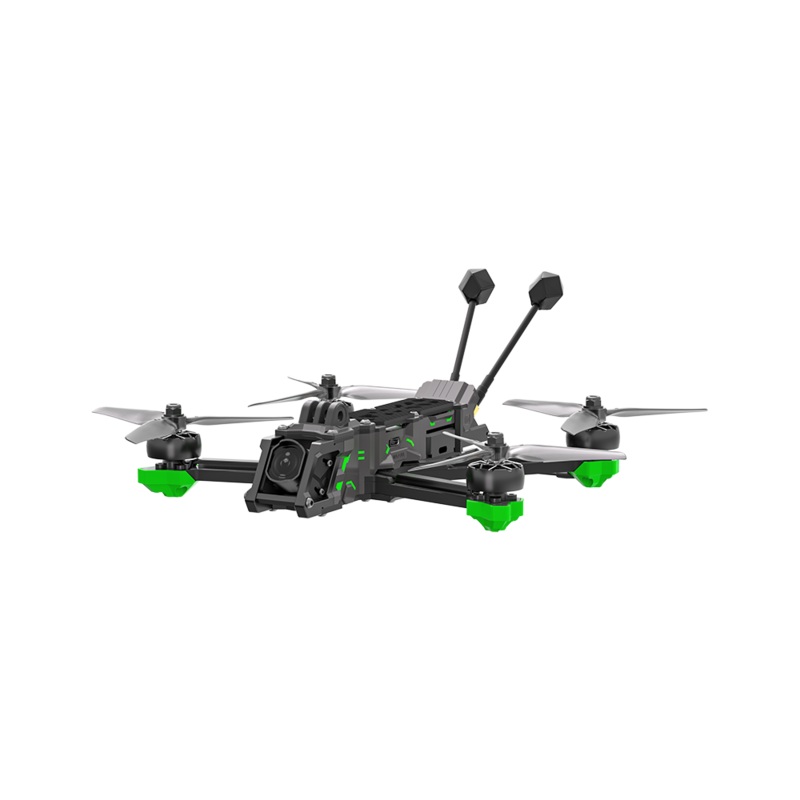

Experience the next generation of FPV performance with the iFlight Nazgul Evoque F5 V2 O4 6S HD. Equipped with DJI’s latest O4 Air Unit Pro, this 5-inch FPV drone features a 1/1.3-inch image sensor, capturing stunning 1080p/100fps video with ultra-low latency. Upgraded frame design, powerful XING2 2207 1750KV motors, and a BLITZ Mini F722 flight stack deliver top-tier flight stability, speed, and durability. Whether you’re racing or filming cinematic footage, the Evoque F5 V2 offers unmatched immersion and reliability.
Key Features
Smooth and Powerful XING2 Motors
-
Durable Unibell construction with titanium alloy shaft.
-
Reinforced 7075 aluminum bell, NSK bearings, and N52H curved arc magnets.
-
XING O-ring protection to enhance crash resistance and motor longevity.
Latest Nazgul Frame Design
-
Protects electronics from dirt and debris.
-
Optimized airflow for better cooling.
-
Illuminated side panels and 360 TPU protection.
DJI O4 Video Transmission
-
Up to 13 km range and 24ms low latency.
-
Crisp 1080p/100fps live view.
-
RockSteady 3.0+ stabilization for ultra-smooth video.
4K Stabilized Video with 155 Ultra-Wide FOV
-
Exceptional low-light imaging with a 1/1.3″ sensor.
-
Supports Normal Mode and D-Log M color profiles.
Secured Battery Plug with Anti-Spark Filter
-
Extends XT60 connector life.
-
Prevents voltage spikes and protects electronic components.
Specifications
| Item | Details |
|---|---|
| Brand | iFlight |
| Product Name | Evoque F5 V2 O4 HD BNF |
| Flight Controller | BLITZ Mini F722 |
| ESC | BLITZ Mini E55 4-IN-1 2-6S 55A ESC |
| Video Transmission | DJI O4 Air Unit Pro |
| Frame Wheelbase | 2232 mm |
| Motor | XING2 2207 1750KV |
| Propellers | Nazgul F5 Props |
| Weight | 4365 g |
| Takeoff Weight | Approx. 69510 g (with 1480mAh battery) |
| Dimensions (LWH) | 190136362 mm |
| Max Speed | 190 km/h |
| Maximum Takeoff Altitude | 3200 m |
| Max Hover Time | Approx. 7.5 minutes (no load, 6S 1480mAh) |
| Max Flight Distance | 5 km |
| Wind Resistance | Level 7 |
| Operating Temperature | -10C to 40C (14F to 104F) |
| GNSS | GPS+SBAS+Galileo+QZSS+Glonass (Optional) |
DJI O4 Air Unit Pro Specifications
| Item | Details |
|---|---|
| Image Sensor | 1/1.3-inch |
| Lens FOV | 155 |
| ISO Range | 10025600 |
| Video Resolution | 1080p/100fps (H.265) |
| Video Format | MP4 |
| Max Bitrate | 130 Mbps |
| Color Modes | Normal / D-Log M |
| Stabilization | RockSteady 3.0+ |
| Live View Quality | 1080p@100fps |
| Operating Frequencies | 5.1705.250 GHz & 5.7255.850 GHz |
| Transmitter Power | 5.1GHz <23dBm (CE), 5.8GHz <33dBm (FCC) |
| Max Transmission Range | 15 km (FCC) / 8 km (CE/SRRC) with DJI Goggles 3/N3 |
| Communication Bandwidth | Max 60 MHz |
| Built-in Storage | 4GB |
| Supported SD Card | Up to 512GB microSD |
| Operating Temperature | -10C to 40C |
| Weight | Approx. 32g (Air Unit + Camera Module) |
| Dimensions | 33.533.513 mm |
Packing List
-
1 Evoque F5 6S O4 HD BNF Drone
-
2 Antennas
-
1 Battery Pad
-
4 Pairs of Nazgul F5 Propellers
-
1 Battery Strap
Compatibility
- DJI Goggles 3 / DJI Goggles N3+ DJI FPV Remote Controller 3
- DJI Goggles 2 / DJI Goggles Integra+ DJI FPV remote control 2
- (Or another Radio to match the RX in the Drone)
The flight control firmware needs to be configured to support the SBUS protocol in order to use the DJI FPV remote controller.
Recommended Accessories
For the best experience with the iFlight Nazgul Evoque F5 V2 O4 6S HD FPV Drone, we recommend the following accessories:
-
Commando 8 ELRS Radio 2.4GHz V2
-
Commando 8 ELRS Radio 868/900MHz V2
-
GoPro 8 TPU Mount
-
GoPro 9/10/11 TPU Mount
-
HOTA D6 Pro Battery Charger (EU Plug)
-
HOTA D6 Pro Battery Charger (US Plug)
-
Nazgul F5 Propellers
Battery Recommendation
-
Fullsend 6S 1480mAh Battery
