Overview

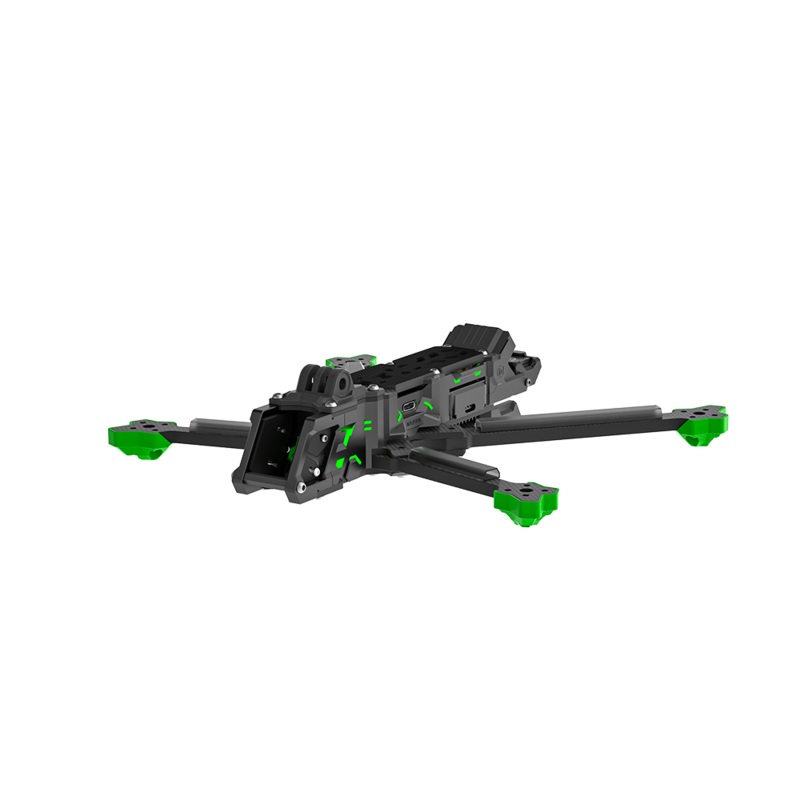

The iFlight Nazgul Evoque F6 V2 O4 Frame Kit is a 6-inch DeadCat-style freestyle and cinematic frame, now fully compatible with the DJI O4 Air Unit Pro. Designed to keep your electronics protected, it features illuminated side panels, enclosed arms, and TPU parts for 360 coverage, reducing debris entry and crash-related damage. Its internal airflow structure promotes better heat dissipation, while the rigid 6mm carbon arms deliver stability and precisionideal for powerful 6S builds and long-range flying.
Key Features
-
DeadCat geometry for unobstructed FPV footage
-
Upgraded O4 compatibility with dedicated camera mount and silicone side panels
-
TPU arm guards and antenna mounts for full-frame protection
-
Enclosed design protects FC and ESC from dirt, grass, and moisture
-
High structural rigidity with 6mm arms and multi-layer plates
Specifications
| Parameter | Details |
|---|---|
| Product Name | Evoque F6 V2 O4 Frame Kit |
| Geometry | DeadCat |
| Wheelbase | 262mm |
| Frame Dimensions | 209 162 36mm |
| Arm Thickness | 6mm |
| Bottom Plate Thickness | 3mm |
| Top Plate Thickness | 2mm |
| Upper Plate Thickness | 3mm |
| Camera Plate Thickness | 3mm |
| Max Flight Stack Height | 22mm |
| Max VTX Height | 22mm |
| FC Mounting | 2020mm (3mm) |
| Motor Mounting | 1616mm (3mm) |
| VTX Mounting | 25.525.5mm (2mm) |
| Weight | 269g 5g |
| Compatibility | DJI O4 Air Unit Pro / DJI O3 Air Unit |
Packing List
-
1 iFlight Evoque F6 V2 O4 Frame Kit
-
2 IPEX to RP-SMA Antenna Pigtails
-
1 Dual Antenna TPU Mount
-
1 GoPro TPU Base Mount
-
1 Screw Bag
-
4 TPU Arm Guards
-
2 Anti-slip Battery Pads
-
2 Battery Straps
