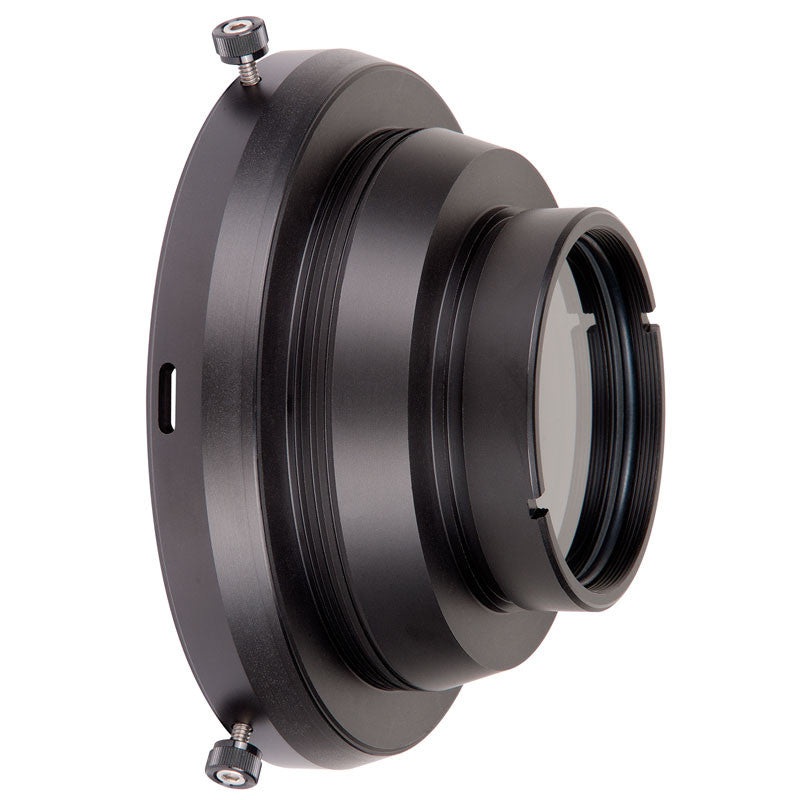

Ikelite DL Macro Flat Port

Ikelite DL Macro Flat Port – IK75301

Ikelite Product Number 75301Product Details

Port with flat optical glass element. 67mm threaded outer front for the attachment of external macro wet lenses. Accepts Ikelite 3.0 diameter filters and accessories.

This port can be attached directly to housings featuring the Dry Lock (DL) port system or combined with DL extensions.

View the DL System Port Chart

What’s Included

• Flat port
• Vinyl cover cover
• Securing thumbscrews

Specifications

• Optical grade glass front
• Acetyl body
• M67 (67mm) threaded front
• Weight 8.1oz (230g)
• 5.5″ diameter x 2.5″ (140 x 64mm)

Spare Parts

• O-ring # 0139.41
• Silicone lubricant # 0184.2
• Thumbscrews (set of 3) # 9249.7
• Vinyl cover # 0200

Documentationcoming soon
