Specification:

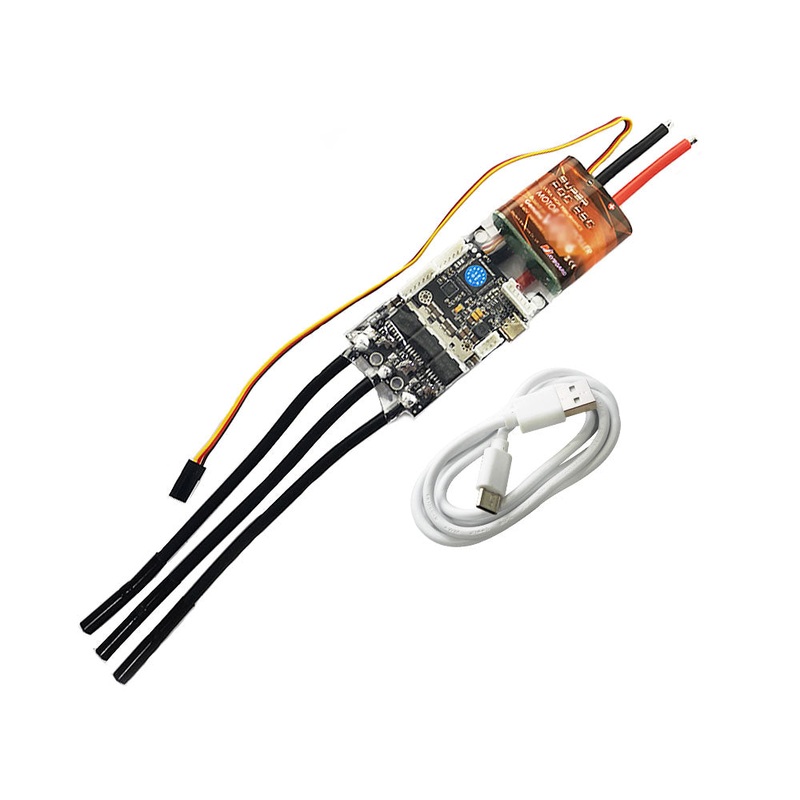

| Model No. | MTSPF6.8 |
| Input Voltage | 3-14S Lipo (12.6V-60V) |
| Hardware | VESC6.0 |
| Firmware | Updatable |
| Cont Current | 50A |
| Burst Current | 240A |
| Software | VESCTOOL Compatible |
| Heat Sink | Without |
| Application | Electric skateboard, elongboard, fighting robots, ebike, escooter, electric vehicles, frictiondriveebike, etc., |
Notice:
NeverconnectonereclevertotwoormoreV6/V75basedSUPERFOCESCsorVESCsinanarray!PermanentdamagemayresultfromY-PPMwiring.
OnlyconnectCANLandCANH!GNDpinsand5VshouldneverbeconnectedinaV6/V75basedSUPERFOCESCsorVESCarray.
Attention Points when you receive the Controller Please:
All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.
- When you receive the controller, please test without load and do not connect motor, first check if thecontroller can successfully connect to your computer, if ok, then connect to motor and you can start to adjust parameters.
- Do not use switching power supply, the instant voltage when switching power supply connect tocontroller is very high, which would easy damage the controller.
- Do not push the throttle too hard when test without load, gently and slowly speed up.
- Be cautious when adjust parameters, if parameters set mistake, would also easy damage the controller.
- Please must remember to change to corresponding modes when you adjust parameters, for example, the controller default mode is BLDC mode, but if you want to detect FOC mode and adjusted FOC parameters, at this time if mode in VESCTOOL didn’t change to FOC mode, then when you push throttle, would easy burn the VESC, same as FOC mode.
- In FOC mode, ERPM suggest to control in 30000-40000; In BLDC moed, ERPM suggest to control in 50000-60000, otherwise driver IC would easy to be damaged. ERPM= motor pole pairs number * KV * Voltage
ERPM= motor pole pairs number * KV * Voltage - If you use UART port, the wire better do not over 0.5m or even shorter, and better use Stranded wire.
- For V4 based controller:
Do not suggest to use FOC mode, suggest to use BLDC mode.
If need to use FOC mode, then must use voltage under 20V.
- The above are only suggestions based on the experience of our engineers. how to actually operate is up to you. Parameters for different setup is also different, please noted
V5 Bluetooth Module:
| Model No. | MTBLEV5 V5 Upgraded version |
| Features | With optocoupler isolation, industrial grade anti-interference, and wired long distance communication |
| Upgrade Function | It supports connection together with receiver TXD and RXD to VESC, so it can automatically switch VESC communication with receiver or bluetooth and you don’t need to unplug connections. When bluetooth module connect to VESCTOOL App, it will automatically disconnect receiver TXD and TXD, really convenient. |
| With 6 LED Lights status | power, communication, data tranmission |
| Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
| Compatible Software | VESCTOOL App |
| Frequency | 2.4Ghz |
| Distance | 15m |
| Input Voltage | 3.3-24V |
| PCB Size | 46mm x 32mm |
V2 Bluetooth Module:
| Model No. | MTBLEV2 V2 Version |
| With 3 LED Lights status | power, communication, database |
| Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
| Compatible Software | VESCTOOL App |
| Frequency | 2.4Ghz |
| ARM Processor | ARMCortex-M032bitprocessor 256kBflash&16kBRAM |
| PCB Size | 41mm x 21mm |
| Net Weight | 5g |
| Antenna Length | 90mm |
