Overview

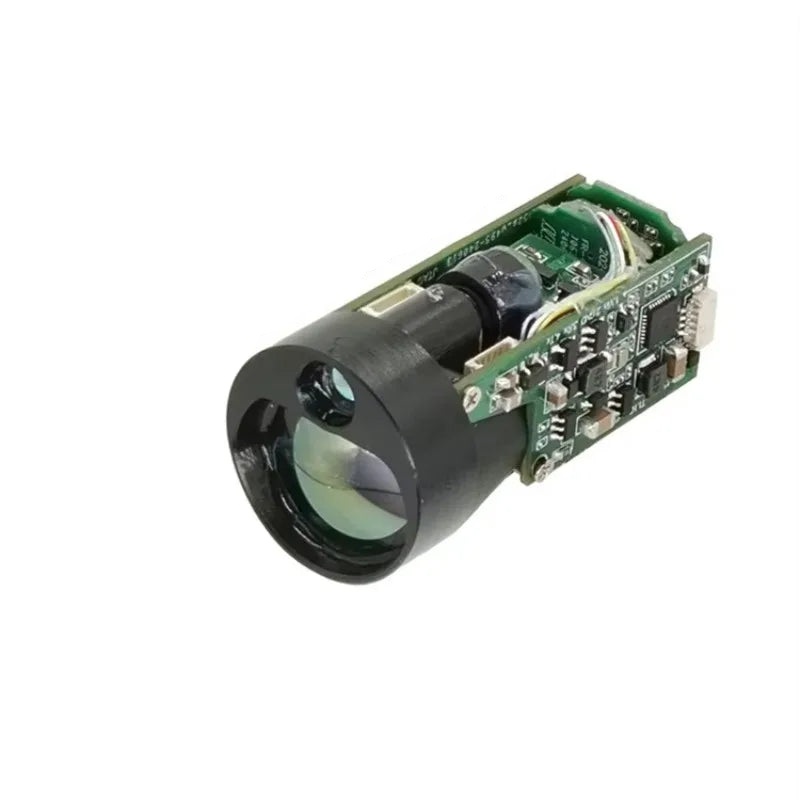

This Lidar Distance Sensor module (JRT TC2X) is a pulse laser rangefinder designed for drone pod rangefinder sensor applications and night vision systems. It measures 5 m to 2000 m with 1 m accuracy and 0.1 m resolution. The module uses a Class 1 905 nm laser (OEM 940 nm available) and communicates via UART-TTL at 1 Hz. Supply voltage is DC 35 V with power consumption 1 W. The compact module measures 232346 mm, weighs 14 g, and operates from 20~55 C.
Key Features
- Long-range lidar distance sensor: 52000 m (table also lists 5~1500 m/2000 m)
- Measurement accuracy: 1 m; resolution: 0.1 m
- Pulse laser ranging; Class I 905 nm laser; OEM 940 nm option
- UART-TTL serial, asynchronous communication; working frequency: 1 Hz
- DC 35 V power input; power consumption 1 W
- Compact and lightweight: 232346 mm; 14 g
- Designed for outdoor use; suitable for night vision integration
- OEM/ODM/OBM customization support (sensor/module/Bluetooth/PLC). Operating temperature customization 10~50 C and analog customization available; voltage can be adapted via power converter LDO.
Specifications
| Product name | 2000m Distance Laser Sensor |
| Brand | JRT (JRT/OEM) |
| Model | TC2X; model number TC2X-250221 |
| Type | Other |
| Ranging method | Pulse Laser Ranging |
| Measure distance | 5 m2000 m |
| Measurement range (table) | 5~1500 m / 2000 m |
| Measurement accuracy | 1 m |
| Resolution | 0.1 m |
| Laser type / class | 905 nm/Class 1; OEM 940 nm |
| Working frequency | 1 Hz |
| Data interface | UART-TTL |
| Output mode | Serial port asynchronous communication, UART |
| Voltage | DC 35 V (table: 3~5 V) |
| Power consumption | 1 W |
| Operating temperature | 20~55 C |
| Size | 232346 mm (table: 23 mm 46 mm) |
| Weight | 14 g (table: 14 g) |
| Material | Plastic |
| Ingress Protection | OEM |
| Magnification | OEM |
| High-concerned chemical | None |
| Origin | Mainland China |
| Place of origin | Sichuan, China |
| Warranty | 1 year |
| Is customized | Yes |
| Customized support | OEM, ODM, OBM, sensor, module, Bluetooth, PLC |
Applications
- Drone/UAV pods and rangefinder sensor integration
- Night vision devices and infrared thermal imaging equipment
- Gun sights and photoelectric pods
- Security monitoring systems
- Thermal imaging ranging
OEM modules can be integrated into handheld thermal imagers to add distance measurement capability. 23 mm diameter small size and spiral design facilitate installation. Class 1 905 nm laser supports outdoor use.
Details
1500m Golf Rangefinder Laser Sensor with Night Vision, Thermal Imaging, Photoelectric Pod, and Golf/Hunting Applications.
JRT Lidar Sensor, 46mm x 23mm, T3.00 board, VCC, GND, RXD, TXD pins defined.
Chengdu JRT Meter Technology Co., Ltd., founded in 2004, specializes in laser distance modules, industrial sensors, and range finders. Offers OEM/ODM services with advanced single transmit/receive technology, focusing on quality, compact size, and competitive pricing.
JRT showcases compact lidar sensors for precise measurements at trade shows. Staff engage visitors, present products, and promote Chengdu JRT Meter Technology Co., Ltd., highlighting innovation and application in distance sensing technology.
JRT Lidar Sensor packing and shipping process with multiple delivery options.
JRT Lidar Distance Sensor certified for CE, ISO 14001, RoHS, FCC, and quality management. Includes test reports and conformity certificates for laser distance meters, ensuring compliance with international standards.
