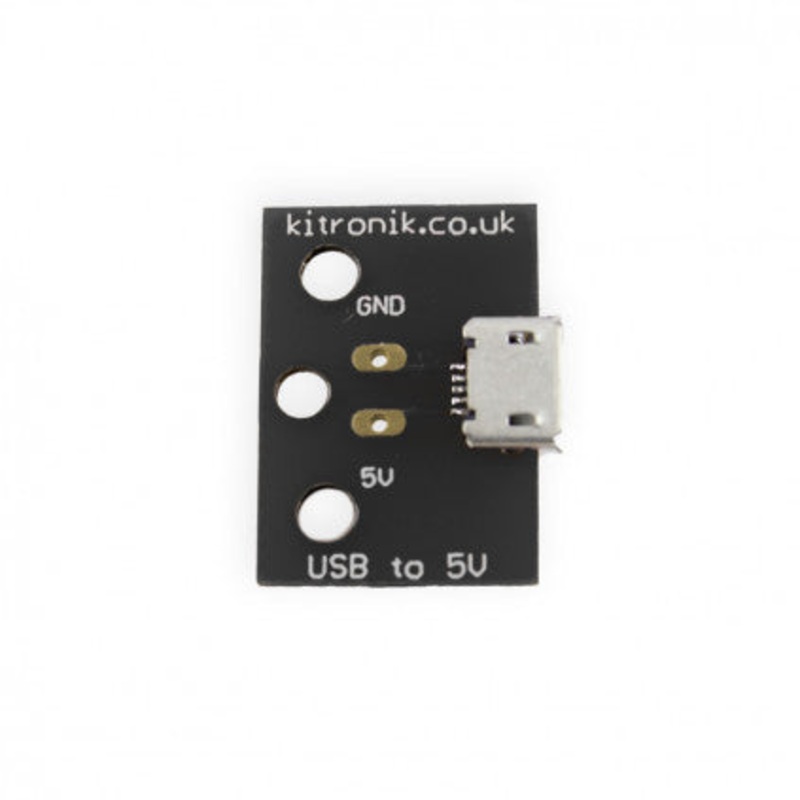

Kitronik Micro USB to 5V breakout

This pre-built USB to 5V breakout board offers a great way of powering projects that require a 5V supply, kits such as our mono amp kit.

connections are two large solder-able pads on the PCB.

This board is ideal for replacing batteries in a variety of circuits such as ourMono Amp kit. It is compatible with Micro USB chargers supplied with most mobile phones and tablets.

Features:

• Power your electronics projects via USB.
• Compatible with projects such as the KitronikMono Amp kit.

Contents:

• 1 x USB to 5V Breakout Board.

Dimensions:

• PCB Length: 22mm.
• PCB width: 16mm.

Requires:

• Soldering Iron.
• Solder.
• Wire Cutters.
• Wire Strippers.

Note:

• Some soldering required to connect the breakout board to your project.
• PC USB ports normally supply 100mA up to an absolute max of 500mA. If you plug anything in that requires a higher current, damage to the USB port is possible.
