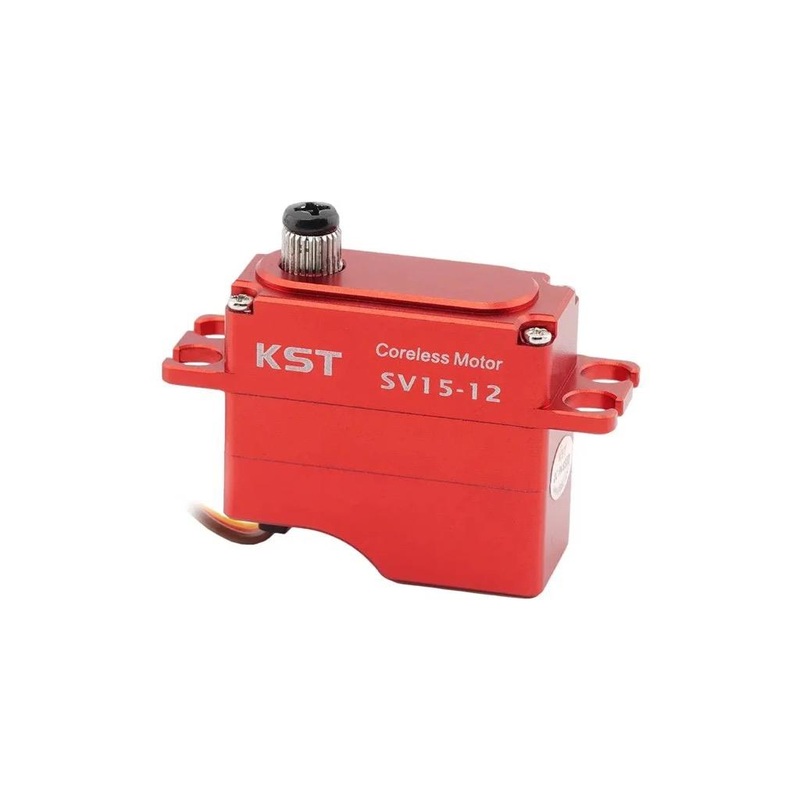

KST SV15-12 SHV Mini Coreless Digital Servo Dual BB 20Kgf.cm 0.10sec/60 : KST-2511
The SV15-12 digital servo is a high-performance, programmable coreless servo designed for RC Helicopters, Robotics and Industrial UAVs. Featuring a hardened steel gear, CNC aluminium alloy case, and dual ball bearings, it ensures exceptional durability, precision, and smooth operation. With a wide voltage range (8.4V-13.0V), it delivers up to 20.0 kgf.cm of torque at 13V and boasts a high-speed response of 0.10sec/60.
Ideal for high-torque and fast-response applications, the SV15-12 servo is the perfect choice for RC enthusiasts and professionals seeking superior servo performance.
Features
- SHV (Super High Voltage) DC 12V or Up to 3S LiPo Direct Drive
- Supports 8.4-13.0V High Voltage
- Programmable
- Dual Ball Bearings
- High Torque & Exceptional Speed
- Compact and Lightweight Design
- High Performance Coreless DC Motor
- Hardened Steel Gear
- Ideal for RC Helicopters, Industrial UAVs & Robotics
Specification
- Item: SV15-12 Servo
- Rated Voltage: DC12.0V
- Voltage Range: DC8.4V-13.0V
- Torque: [email protected] / [email protected] / [email protected]
- Speed: 0.15sec/[email protected] / 0.11sec/[email protected] / 0.10sec/[email protected]
- Start Current: [email protected] / [email protected] / [email protected]
- Working Frequency: 1520s/333Hz
- Default Travel Angle: 60 = 120 Total
- Temperature Range: -10?…….+65?
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB
- Case Dimensions: 33*15*30mm0.2mm
- Weight: 35g10%
Package Includes
- 1 * SV15-12 Servo
- 3 * Plastic Servo Horn
- 1 * Servo Horn Screw
- 4 * Mounting Screw
- 4 * Rubber Grommet
- 4 * Eyelet
