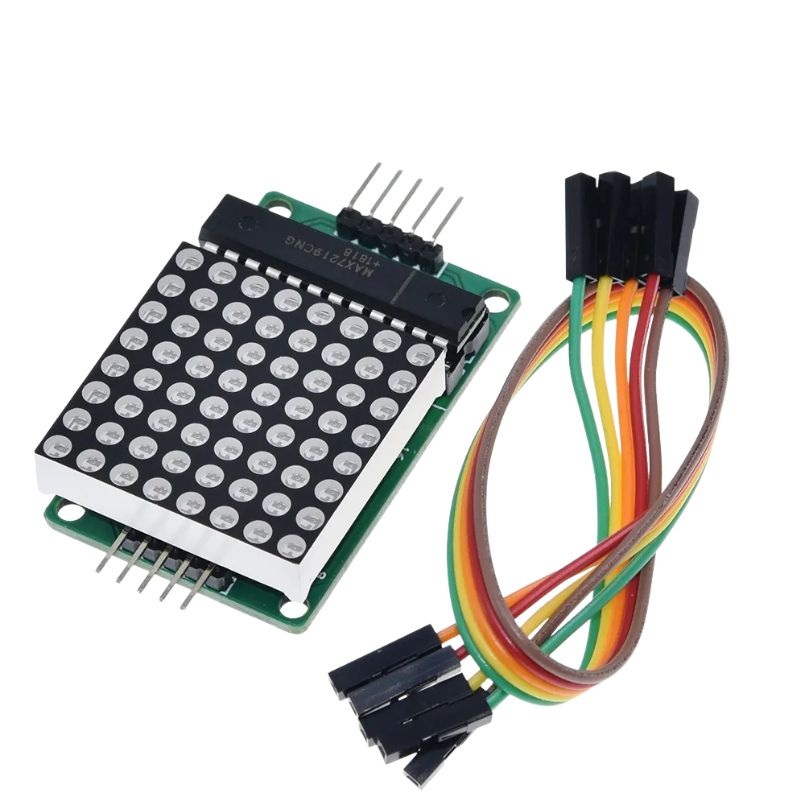

LEDMX-887219 – LED MATRIX 8X8 RED MAX7219 SERIAL CONTROL 5V 320MA

The MAX7219 simplifies driving LED displays making it ideal for applications such as scoreboards clocks and scrolling text displays. Its compact design and ease of use make it a favourite among hobbyists and electronics enthusiasts.

Features:

Integrated Serial Input/Output CommonCathode Display Driver:
The MAX7219 is designed to interface microprocessors (Ps) with 7segment numeric LED displays bargraph displays or individual LEDs.
BCD CodeB Decoder:
Onchip BCD codeB decoder for efficient data handling.
Multiplex Scan Circuitry:
Enables multichannel scanning and word drive.
8×8 Static RAM:
Stores data for each digit.
Segment Current Control:
Only one external register needed to set the segment current for all LEDs.
Serial Interface:
Convenient fourwire serial interface compatible with most generalpurpose microprocessors.
Coding Options:
Allows the user to select coding or noncoding for each data.
LowPower Shutdown Mode:
Contains a 150A lowpower shutdown mode.
Brightness Control:
Analog and digital brightness control.
ScanLimit Register:
Allows displaying from 1 to 8 digits.
LED Light Detection Mode:
Provides an option to light up all LEDs.

Module Parameters:

Common Cathode Lattice:
A single module can drive an 8×8 common cathode lattice.
Operating Voltage:
Module operates at 5V.
Module Size:
Dimensions: 5cm (length) x 3.2cm (width) x 1.5cm (height).
Mounting Holes:
Four screw holes with a 3mm aperture for secure installation.
Cascading Support:
Input and output interfaces allow multiple modules to be cascaded.

Wiring Instructions:

Connect the modules input port (left side) and output port (right side).
For controlling a single module:
Connect the input port directly to the CPU.
For cascading multiple modules:
Input termination module connects to the CPU.
Output termination module connects to the input of the next module.
Repeat this pattern for additional modules.

Example for an MCU (e.g. Arduino UNO):

VCC: Connect to 5V
GND: Connect to GND
DIN: Connect to P22
CS: Connect to P21
CLK: Connect to P20
