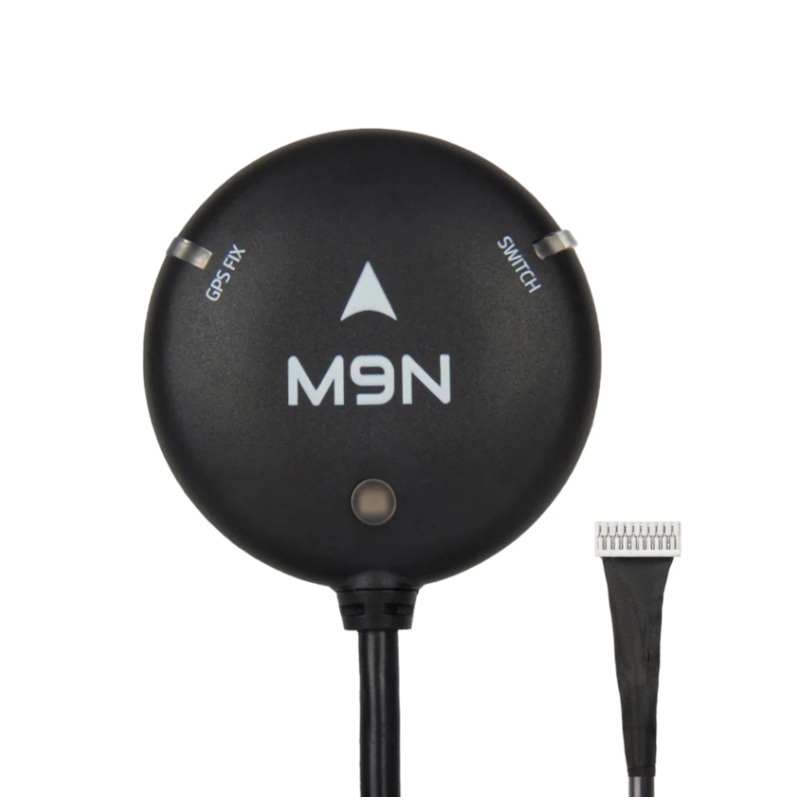

M9N GPS Standard

Description

The M9N GPSuses multi-constellation GNSSpowered by u-blox M9N,a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurrently.

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connector options for different purposes. This module ships with a baud rate of115200 (38400 previously).

The high-gain 25 x 25 mm2 patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.

Feature

• Ublox M9N GNSS Receiver
• Accurate Positioning
• Fast Navigation Update Rate
• IST8310 Compass
• High-gain 25*25*4mm antenna
• Internal Buzzer, Safety switch
• Ultra Bright UI RGB LED

Note

• The Status LED driver has changed. This LED is supported inPX4 1.14, ArduPilot 4.4.0 & later. (More info)

	Holybro M10 GPS	Holybro M9N GPS
GNSS Receiver	Ublox M10	Ublox M9N
Number of Concurrent GNSS	Up to 4 GNSS	Up to 4 GNSS
BeiDou	BeiDou
Galileo	Galileo
GLONASS	GLONASS
GPS	GPS
QZSS	QZSS
Frequency Band	GPS L1	GPS L1
Galileo E1	Galileo E1
GLONASS L1	GLONASS L1
BeiDou B1	BeiDou B1
SBAS L1	SBAS L1
QZSS L1	QZSS L1
Compass	IST8310	IST8310
Output Protocol	UBX (U-blox)	UBX (U-blox)
NMEA	NMEA
Accuracy	2.0m CEP	1.5m CEP
Nav. Update Rate	Up to 25 Hz (single GNSS),	Up to 25 Hz (4 concurrent GNSS)
Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation System	EGNOS, GAGAN, MSAS and WAAS	EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S	QZSS: L1S
Default Baud Rate	115200	115200
Input Voltage	4.7-5.2V	4.7-5.2V
Connector Type	JST-GH-10pin JST-GH-6pin Molex 1.25mm 6pin & 4pin & 3pin
Antenna	25 x 25 x 4 mm ceramic patch antenna
Antenna Gain	1.5dbi
Antenna LNA Gain	22dB
Power consumption	Less than 200mA @ 5V	Less than 200mA @ 5V
Operating Temperature	-40~80C	-40~80C
Dimension	50 x14.4 mm	50 x14.4 mm
Weight	32g	32g
Cable Length	26cm (42cm cable purchase separately)	26cm (42cm cable purchase separately)
Other	Tri-color LED	Tri-color LED
Onboard Buzzer	Onboard Buzzer
Safety Switch	Safety Switch
LNA MAX2659ELT+ RF Amplifier	LNA MAX2659ELT+ RF Amplifier
Rechargeable Farah capacitance	Rechargeable Farah capacitance
Low-noise 3.3V regulator	Low-noise 3.3V regulator

Note

• The Status LED driver has changed. This LED is supported inPX4 1.14, ArduPilot 4.4.0 & later. (More info)
• Ardupilot User:If unable to perform normal compass calibration “compass dance” for any reason, set parameterCOMPASS_ORIENT=6(Yaw270) for proper compass orientation.

PIN MAP

Difference between the three cable options

SKU12027 – HolybroM9 GPS(JSTGHR1.25mm10pincable):

• This option is the most common; it is used on the This connector can be used on Pixhawk Standard Flight Controller 10-pin GPS Module or “GPS1” input port.

SKU12029 -HolybroM9 Secondary GPS (JSTGHR1.25mm6pincable):

• This connector can be used on Pixhawk Standard Flight Controller 6-pinUART & I2C or “GPS2” input port as a secondary GPS. This GPS is also compatible with theCubeFlight ControllerGPS2 Port.

SKU12028– HolybroM9 GPSforPix32 & Pixhawk1/2.4.6/2.4.8 (Molex1.25mm6pin&4pin&3pincable):

• This SKU is no longer in production. For customers who need a GPS with a cable that is compatible with Pix32 & Pix32 & Pixhawk1/2.4.6/2.4.8, please visit theGPS extension cableproduct page to purchase and install the cable separately.

Reference Link:

• Holybro Documentation
• Ardupilot IST8310 Compass Orientation
• Dimension
• 3D CAD File Downloads

Package Includes:

• 1x M9N GPS Module
• 1xFixed Carbon Fiber GPS mount

Spare Parts & Accessories

• GPS Extended Length Cable
