Overview

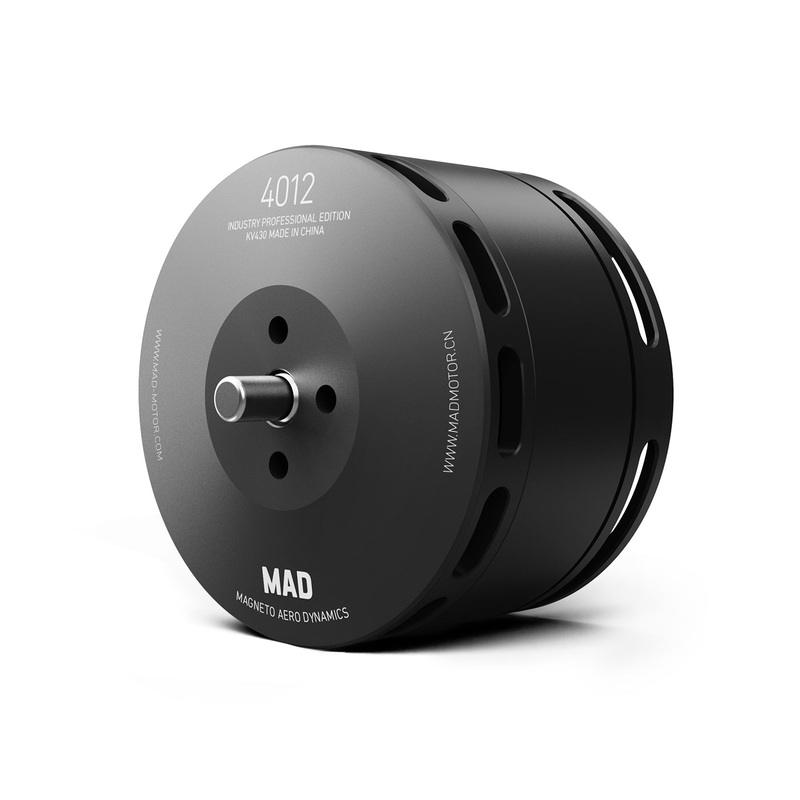

MAD 4012 IPE 430KV is a drone motor designed for 1315″ high-efficiency carbon fiber propellers, with a stated payload capacity of 10001500 g per rotor and max thrust up to 2938 g (2.94 kg) per motor (setup dependent).
Key Features
- 430KV rating (spec sheet: 430KV RPM/V)
- IP35 degree of protection
- Anticorrosive stator
- Centrifugal heat dissipation: YES
- Balance grades: rotor balance 5 mg; motor balance 10 mg
- Propeller compatibility: 1315″ high-efficiency carbon fiber
Specifications
| Motor model | MAD 4012 IPE V1.0 |
| KV / RPM/V | 430KV |
| Number of pole pairs | 12 |
| Motor size | D:44.9 35.7 mm |
| Weight | 153 g (spec sheet: 153.1 g) |
| Payload capacity | 10001500 g/rotor |
| Max thrust | 2938 g (2.94 kg) per motor (spec sheet: 2.9 kg) |
| Recommended hover thrust | 1.01.5 kgf |
| Degree of protection | IP35 |
| Stator | Anticorrosive |
| Varnished wire temperature rating | 150C |
| Magnet temperature rating | 150C |
| Cable length | 600 mm, 18 AWG (black) silicone |
| Shaft diameter | IN: 5 mm |
| Propeller mounting holes | D:12, M34 |
| Motor mounting holes | D:25, M34; D:32, M2.53 |
| Bearing | 685ZZ1 / 695ZZ1 |
| Rotor balance | 5 mg |
| Motor balance | 10 mg |
| Disruptive test | 500 V |
| No-load current | 1.25 A / 20 V |
| Internal resistance | 83 m |
| Nominal voltage | 6S LiPo battery |
| Maximum current | 23.1 A |
| Maximum power | 540 W |
| Maximum torque | 0.51 Nm |
| Recommended ESC | MAD AMPX PRO 40A (26S) |
| Recommended propellers (spec sheet) | 134.4, 144.8, 155.0 |
| Single rotor take-off weight | 1 kg 1.5 kg |
| UAV take-off weight | 6S 14″: 48 kg (Quadcopter 4 kg; Hexacopter 6 kg; Octocopter 8 kg) |
| Product boxed weight | 506.2 g (110 110 55 mm), 2 pcs/box |
Drawing dimensions and mount holes
- Diameter: 44.9
- Length: 29.7
- Front section length: 6
- Mounting patterns noted: 12-M34; 25-M34; 32-M2.53
Analytical graph legend (spec sheet)
I = Current, P = Input Power, = Electrical Efficiency, T = Thrust, N = Rotational Speed. Data measured at input voltage 24 V, temperature 25C, sea level; rotational speed adjusted by throttle.
Performance data (6S, AMPX 40A PRO (26S))
FLUXER PRO 134.4 MATT (6S, max 56C)
| Throttle (%) | Voltage (V) | Current (A) | Input Power (W) | Output Power (W) | Torque (Nm) | RPM | Thrust (gf) | Efficiency (%) | Efficiency (gf/W) |
|---|---|---|---|---|---|---|---|---|---|
| 30 | 23.79 | 0.93 | 22.1 | 13.0 | 0.042 | 2966 | 238 | 62.28 | 11.4 |
| 35 | 23.78 | 1.35 | 32.2 | 19.9 | 0.055 | 3451 | 325 | 61.93 | 10.6 |
| 40 | 23.77 | 1.87 | 44.4 | 29.6 | 0.072 | 3918 | 434 | 69.34 | 10.2 |
| 45 | 23.76 | 2.4 | 57.1 | 39.8 | 0.088 | 4328 | 534 | 72.81 | 9.8 |
| 50 | 23.75 | 3.03 | 72.0 | 51.8 | 0.104 | 4752 | 642 | 74.89 | 9.3 |
| 55 | 23.74 | 3.74 | 88.7 | 64.7 | 0.121 | 5122 | 745 | 75.65 | 8.7 |
| 60 | 23.73 | 4.55 | 107.9 | 81.3 | 0.141 | 5504 | 869 | 78.01 | 8.3 |
| 65 | 23.71 | 5.44 | 129.1 | 98.4 | 0.160 | 5882 | 991 | 78.91 | 7.9 |
| 70 | 23.70 | 6.42 | 152.1 | 118.1 | 0.181 | 6242 | 1117 | 80.31 | 7.6 |
| 75 | 23.68 | 7.57 | 179.2 | 140.2 | 0.203 | 6603 | 1256 | 80.74 | 7.2 |
| 80 | 23.66 | 8.89 | 210.3 | 166.0 | 0.227 | 6978 | 1423 | 81.31 | 7.0 |
| 85 | 23.64 | 10.13 | 239.5 | 189.1 | 0.246 | 7342 | 1561 | 81.27 | 6.7 |
| 90 | 23.61 | 11.54 | 272.4 | 216.9 | 0.269 | 7692 | 1706 | 81.84 | 6.4 |
| 95 | 23.59 | 13.14 | 309.8 | 247.0 | 0.294 | 8027 | 1872 | 81.82 | 6.2 |
| 100 | 23.55 | 15.43 | 363.3 | 290.8 | 0.328 | 8472 | 2087 | 82.00 | 5.9 |
FLUXER PRO 144.8 MATT (6S, max 69C)
| Throttle (%) | Voltage (V) | Current (A) | Input Power (W) | Output Power (W) | Torque (Nm) | RPM | Thrust (gf) | Efficiency (%) | Efficiency (gf/W) |
|---|---|---|---|---|---|---|---|---|---|
| 30 | 23.78 | 1.2 | 28.5 | 16.8 | 0.056 | 2872 | 303 | 62.20 | 11.2 |
| 35 | 23.77 | 1.65 | 39.3 | 24.9 | 0.073 | 3262 | 399 | 66.63 | 10.7 |
| 40 | 23.75 | 2.22 | 52.7 | 35.6 | 0.093 | 3658 | 513 | 70.45 | 10.2 |
| 45 | 23.74 | 3.05 | 72.5 | 51.0 | 0.118 | 4143 | 658 | 73.08 | 9.4 |
| 50 | 23.73 | 3.9 | 92.7 | 67.7 | 0.142 | 4555 | 793 | 75.64 | 8.9 |
| 55 | 23.72 | 4.83 | 114.6 | 84.5 | 0.164 | 4922 | 934 | 76.30 | 8.4 |
| 60 | 23.70 | 5.81 | 137.8 | 104.2 | 0.189 | 5256 | 1069 | 78.29 | 8.0 |
| 65 | 23.68 | 7.0 | 165.8 | 127.0 | 0.215 | 5636 | 1236 | 79.04 | 7.7 |
| 70 | 23.66 | 8.31 | 196.7 | 152.6 | 0.244 | 5984 | 1399 | 79.98 | 7.3 |
| 75 | 23.64 | 9.72 | 229.7 | 178.9 | 0.270 | 6327 | 1547 | 80.16 | 6.9 |
| 80 | 23.61 | 11.25 | 265.6 | 207.3 | 0.297 | 6656 | 1719 | 80.20 | 6.7 |
| 85 | 23.58 | 13.13 | 309.6 | 242.7 | 0.332 | 6972 | 1905 | 80.44 | 6.3 |
| 90 | 23.54 | 14.84 | 349.4 | 273.0 | 0.358 | 7281 | 2054 | 80.08 | 6.0 |
| 95 | 23.52 | 16.83 | 395.9 | 308.8 | 0.389 | 7580 | 2227 | 79.85 | 5.8 |
| 100 | 23.46 | 19.91 | 467.2 | 364.0 | 0.437 | 7964 | 2501 | 79.54 | 5.5 |
FLUXER PRO 155.0 MATT (6S, max 96C)
| Throttle (%) | Voltage (V) | Current (A) | Input Power (W) | Output Power (W) | Torque (Nm) | RPM | Thrust (gf) | Efficiency (%) | Efficiency (gf/W) |
|---|---|---|---|---|---|---|---|---|---|
| 30 | 23.77 | 1.4 | 33.3 | 20.1 | 0.069 | 2792 | 362 | 63.38 | 11.4 |
| 35 | 23.76 | 1.93 | 45.9 | 29.4 | 0.088 | 3173 | 475 | 66.88 | 10.8 |
| 40 | 23.75 | 2.66 | 63.2 | 43.2 | 0.114 | 3602 | 625 | 71.08 | 10.3 |
| 45 | 23.74 | 3.54 | 84.0 | 59.8 | 0.142 | 4022 | 793 | 74.08 | 9.8 |
| 50 | 23.72 | 4.59 | 109.0 | 79.8 | 0.172 | 4419 | 976 | 75.89 | 9.3 |
| 55 | 23.70 | 5.72 | 135.6 | 101.5 | 0.202 | 4790 | 1149 | 77.27 | 8.8 |
| 60 | 23.68 | 6.93 | 164.1 | 123.7 | 0.229 | 5152 | 1301 | 77.79 | 8.2 |
| 65 | 23.65 | 8.38 | 198.3 | 152.1 | 0.265 | 5486 | 1505 | 79.01 | 7.8 |
| 70 | 23.65 | 9.9 | 233.9 | 180.7 | 0.297 | 5808 | 1700 | 79.51 | 7.5 |
| 75 | 23.64 | 11.59 | 273.4 | 211.5 | 0.330 | 6113 | 1883 | 79.52 | 7.1 |
| 80 | 23.57 | 13.32 | 313.9 | 242.8 | 0.361 | 6419 | 2065 | 79.35 | 6.8 |
| 85 | 23.55 | 15.15 | 356.6 | 274.7 | 0.391 | 6708 | 2235 | 78.97 | 6.4 |
| 90 | 23.51 | 17.38 | 408.5 | 313.5 | 0.427 | 7013 | 2455 | 78.50 | 6.0 |
| 95 | 23.47 | 19.81 | 465.0 | 355.2 | 0.466 | 7274 | 2674 | 77.95 | 5.9 |
| 100 | 23.41 | 23.06 | 539.9 | 410.8 | 0.513 | 7650 | 2922 | 76.09 | 5.4 |
Note from spec sheet: The above data are theoretical values when the input voltage is 24 V, for reference only. At room temperature 25C and without additional cooling, current over 23 A is a non-working zone; 2823 A is short-term (about 1030 s) working zone; and below 8 A is a sustainable working zone. Control motor running time according to working environment temperature and heat dissipation conditions.
Whats Included
- Motor 2
- Propeller plate 2
- Prop adapter 2
- Adapter propeller plate 2
- M6 bullet 2
- M36 motor screws 8
- 3.5 mm bullet connector 6
- 46 adapter ring 2
- Heat shrinkable tube 6
- M38 mm prop adapter screws 8
- M310 propeller screws 4
- Sticker 2
Applications
- Cinematic drones (heavy camera setups)
- Industrial UAVs (endurance and payload missions)
- Agricultural drones (spraying and crop monitoring)
For KV options, order configuration confirmation, and bulk purchasing support, contact [email protected] or visit https://rcdrone.top/.
Details
MAD 4012 IPE 430KV motor mounting uses 12 M34 plus 32 M2.53 and 25 M34 bolt patterns, with a 29.7mm body length and 44.9mm diameter.
The MAD 4012 IPE motor set includes prop plates, prop adapters, mounting screws, 3.5mm bullet connectors, and heat-shrink tubing for a cleaner install.
The MAD 4012 IPE 430KV motor is rated for 1015 kg load with up to 29 kg max thrust and efficiency listed above 76%.
