Overview

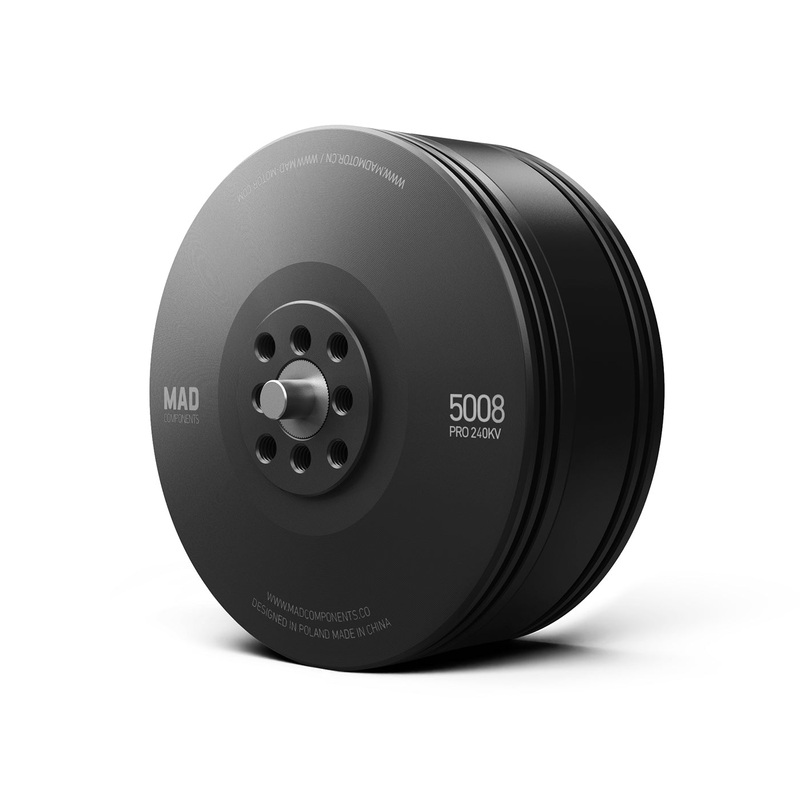

MAD 5008 PRO IPE is a drone motor with an autocenter feathering propeller system designed to return to a horizontal position relative to the wing upon shutdown for streamlined alignment. It is offered in multiple KV options for eVTOL / multirotor propulsion setups.
Key Features
- Autocenter feathering propeller system
- Centrifugal heat dissipation: YES
- Degree of protection: IP45
- Anticorrosive stator
For integration or compatibility questions (ESC, propeller, battery), contact https://rcdrone.top/ or email [email protected].
Specifications
General (from provided description)
| Sustained thrust | 1.2~2.1kg |
| Max thrust | 4.8kg |
| Support voltage | 4S;6S |
| Weight | 176g |
Motor Data (MAD 5008 PRO IPE V1.0)
| Motor model | MAD 5008 PRO IPE V1.0 |
| Number of pole pairs | 14 |
| Stator | Anticorrosive |
| Varnished wire degree | 180C |
| Motor size | D:56 30.4 mm |
| Magnet degree | 150C |
| Degree of protection | IP45 |
| Cable length | 150 mm 16# Awg(Black) silicone |
| Centrifugal heat dissipation | YES |
| Rotor balance | 5 mg |
| Propeller mounting holes | D:12 M34, D:15 M34 |
| Motor balance | 10 mg |
| Shaft diameter | IN: 6 mm |
| Motor mounting holes | D:25 M34 |
| Bearing | 696ZZ*2 |
| Disruptive test | 500 V |
Drawing / Mounting Dimensions (from image)
| Motor diameter | 56 |
| Body length callout | 23.5 |
| Additional callouts | 3.9; 3; 4 |
| Motor mounting holes | 25-M3*4 |
| Propeller mounting holes | 15-M3*4; 12-M3*4 |
| Additional hole callout | 12-2*3.2 |
KV Variant Performance Summaries (from images)
| KV | Recommended hover thrust | Maximum thrust | Optimized weight | Efficiency (shown) |
|---|---|---|---|---|
| 170KV | 1.5~2.0 kgf | 4.8 kgf | 175 g | >81% |
| 240KV | 1.0~2.0 kgf | 4.1 kgf | 176 g | >80% |
| 300KV | 1.0~2.0 kgf | 3.8 kgf | 170 g | >80% |
| 340KV | 1.5~2.0 kgf | 4.0 kgf | 170 g | >79% |
| 400KV | 1.5~2.0 kgf | 4.1 kgf | 175 g | >79% |
170KV Specifications (image panel)
| RPM/V | 170 KV |
| No load current | 0.42A/20V |
| Motor weight | 175 g |
| Maximum current | 20.6 A |
| Maximum thrust | 4.8 kg |
| Recommended ESC | MAD AMPX 40A (5-14S) HV |
| Nominal voltage | 12S lipo battery |
| Internal resistance | 195m |
| Product boxed weight | 334g (110 x 110 x 50 mm) |
| Maximum power | 981W |
| Maximum torque | 1.09 Nm |
| Recommended propellers | 17×5.8, 18×6.1, 18×5.7 |
| Single rotor take-off weight | 1.5kg – 2kg |
| UAV take-off weight | 12S-16″/7kg-Quadcopter; 10.5kg-Hexacopter; 14kg-Octocopter |
240KV Specifications (image panel)
| RPM/V | 240 KV |
| No load current | 0.67A/20V |
| Motor weight | 176 g |
| Maximum current | 29.9 A |
| Maximum thrust | 4.1 kg |
| Recommended ESC | MAD AMPX PRO 40A (2-6S) |
| Nominal voltage | 6-8S lipo battery |
| Internal resistance | 104m |
| Product boxed weight | 335g (110 x 110 x 50 mm) |
| Maximum power | 788W |
| Maximum torque | 1.1 Nm |
| Recommended propellers | 20×6.0, 21×6.3, 22×6.6, 22×7.0, 18×6.1, 18×5.7, 17×5.8 |
| Single rotor take-off weight | 1kg – 2kg |
300KV Specifications (image panel)
| RPM/V | 300 KV |
| No load current | 0.95A/20V |
| Motor weight | 170 g |
| Maximum current | 25.5 A |
| Maximum thrust | 3.8 kg |
| Recommended ESC | MAD AMPX PRO 40A (2-6S) |
| Nominal voltage | 6S lipo battery |
| Internal resistance | 60m |
| Product boxed weight | 325g (110 x 110 x 50 mm) |
| Maximum power | 600W |
| Maximum torque | 0.84 Nm |
| Recommended propellers | 18×5.1, 18×5.7, 19×5.7, 20×6.0 |
| Single rotor take-off weight | 1kg – 2kg |
340KV Specifications (image panel)
| RPM/V | 340KV |
| No load current | 1.1A / 20V |
| Motor weight | 170 g |
| Maximum current | 27.7 A |
| Maximum thrust | 4.0 kg |
| Recommended ESC | MAD AMPX PRO 40A (2-6S) |
| Nominal voltage | 6S lipo battery |
| Internal resistance | 66.4m |
| Product boxed weight | 329g (110 x 110 x 50 mm) |
| Maximum power | 734W |
| Maximum torque | 0.91 Nm |
| Recommended propellers | 17×5.8, 18×5.1, 18×5.7, 19×5.7 |
| Single rotor take-off weight | 1.5kg – 2kg |
400KV Specifications (image panel)
| RPM/V | 400 KV |
| No load current | 1.35A / 20V |
| Motor weight | 175 g |
| Maximum current | 33.3 A |
| Maximum thrust | 4.1 kg |
| Recommended ESC | MAD AMPX PRO 40A (2-6S) |
| Nominal voltage | 6S lipo battery |
| Internal resistance | 44.5m |
| Product boxed weight | 334g (110 x 110 x 50 mm) |
| Maximum power | 776.8W |
| Maximum torque | 0.82 Nm |
| Recommended propellers | 16×5.4, 17×5.8 |
| Single rotor take-off weight | 1.5kg – 2kg |
| UAV take-off weight | 6S-17″/7kg-Quadcopter; 10.5kg-Hexacopter; 14kg-Octocopter |
Whats Included
- Motor x1
- Propeller plate x1
- 3.5mm bullet connector x3
- 46 adapter ring x1
- Heat shrinkable tube x3
- M3*8 motor screws x4
- M3*10 propeller screws x2
- Sticker x2
Applications
- eVTOL airframe propulsion systems using autocenter feathering propellers
- Multirotor UAV platforms requiring high-thrust motor options across multiple KV ratings
Performance Charts (Original Panels)
The following original panels include the full analytical graphs and operating tables for each KV option.
The MAD 5008 PRO 170KV motor spec sheet lists a 175 g weight, recommended 1520 kgf load range, and performance curves for setup planning.
The MAD 5008 PRO 240KV drone motor is rated for 6S setups and lists a 176 g motor weight with over 80% efficiency on the spec sheet.
MAD 5008 PRO IPE performance tables provide quick reference figures across multiple prop and battery configurations.
The MAD 5008 PRO motor performance sheet includes a thrust curve graph and detailed test tables for setup and matching with props and ESCs.
The MAD 5008 PRO 340KV motor includes detailed performance curves and test tables to help choose props and tune thrust on 46S setups.
Drawings & Accessories Images
MAD 5008 PRO IPE motor dimensions and mounting hole pattern help confirm fitment with your drone frame and hardware.
Details
MAD 5008 PRO IPE motor mounting uses multiple M3 bolt patterns with a 56 mm body diameter and 23.5 mm overall length for fit checks.
The MAD 5008 PRO IPE drone motor package includes the motor, propeller plate, connectors, adapter ring, heat-shrink tube, and mounting screws for installation.
The MAD 5008 PRO motor datasheet lists key figures like 170KV, 175 g weight, and efficiency over 81% alongside performance curves and test tables.
The MAD 5008 PRO 240KV motor specs list a 176 g weight and efficiency over 80% for 6S setups.
MAD 5008 PRO IPE performance tables list thrust, current draw, and efficiency across multiple propeller sizes and throttle settings.
MAD 5008 PRO motor test data provides performance curves and detailed tables to help choose a propeller and power setup.
The MAD 5008 PRO motor is listed as an energy-efficient 340KV option with 48S support, 40-inch prop pairing, and up to 1520 kg thrust.
The MAD 5008 PRO 400KV drone motor features a 65 mm housing and a listed weight of 175 g for efficient multirotor setups.
