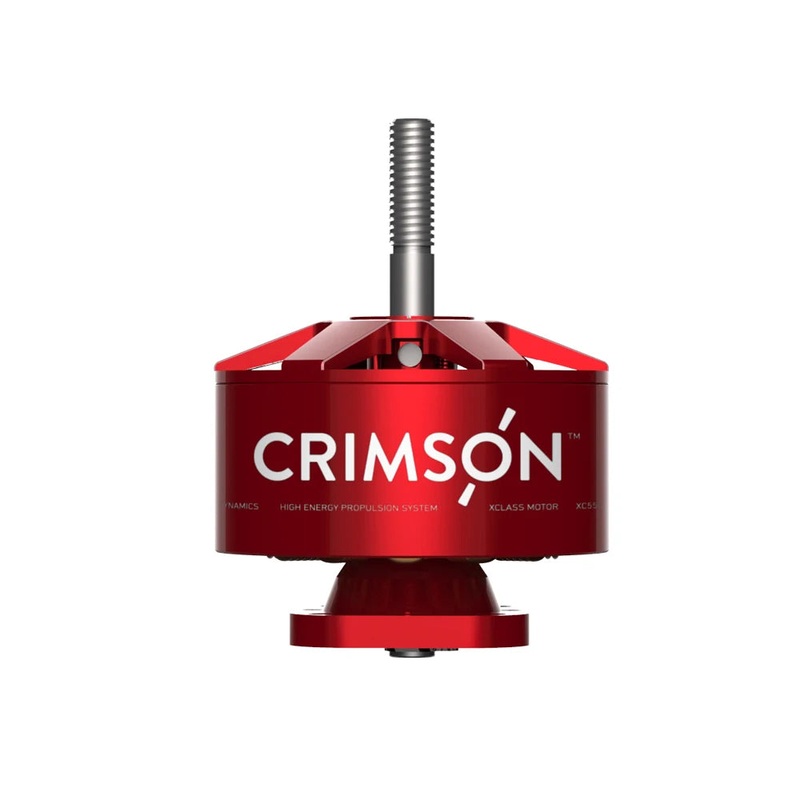

MAD Crimson XC5500 FPV drone electric motor SPECIFICATIONS

Brand Name: MAD COMPONENTS

Is Electric: No battery

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Motors

Size: 110x110x95mm

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Certification: CE

Certification: RoHS

Remote Control Peripherals/Devices: MOTOR

Tool Supplies: Assembled class

Quantity: 1 pcs

Model Number: MAD Crimson XC5500

Four-wheel Drive Attributes: Motors

Wheelbase: Screws

Application: For Xclass Drone FPV Racing

Certificate: CE & ROHS

KV: 505KV & 635KV

Support: 6-10S

Color: Red

Products Description

MAD POLAR XC5000 X Class Racing Motor

* Designed for high-end X Class Drone Racing, i.e.: 800-1200mm multi-rotor aircraft, VTOL aircraft, agricultural copters (2.5-3.5kg loading per rotor).

* Can be used to build the fastest, most durable and stable UAV and high-speed photographic UAV.

* Crimson XC5000 X Class racing motor only weighs 260g with 3 durable bearing. Maximun thrust can reach 6.9kg. Support 8S.

Motor Test Benchmarks

MAX MAD XC5500 505KV Motor Specifications: Nominal Voltage 6-8S, No Load Current 9A, Internal Resistance 31m. The motor operates with an input voltage of 32V at a temperature of 25C and sea level. The data above shows the analytical graph of motor operation, including current (I), input power (P), efficiency (n), thrust (T), and rotational speed (N) at various throttle settings. Motor Details: Motor Model MAD Crimson XC5500 V1.0, Number of Pole Pairs Stator Japan Anticorrosive Varnished Wire, Degree 180. Motor Size: Diameter 50mm, Magnet Degree 150C, Protection Degree Rain protection. Additional Features: Independent Rotor Balance, Centrifugal Heat Dissipation, Propeller Mounting Holes D:12 M3x4 M6 Nut.
