MAD FLUXER VTOL 34.1×13.6 carbon fiber propeller set features an integrated structure design and an optimized eVTOL prop profile to help reduce air resistance during cruise. The larger prop pitch is designed to generate more thrust, with faster response and startup. Reinforced installation areas improve durability and reliability; designed to pair well with MAD brushless motors.
Key Features
- High quality carbon fiber + resin construction
- Surface treatment: polished/matt
- Optimized VTOL/eVTOL prop profile
- Reinforced prop installation positions for improved durability
Specifications
| Model | FLUXER VTOL Props 34.1 x 13.6 |
|---|---|
| Size | 866.14 x 354.44 mm |
| Single weight | 138 g |
| Material | High quality carbon fiber + Resin |
| Surface treatment | Polished/matt |
| Working temperature | -40C~65C |
| Storage temperature | -10C~50C |
| Storage humidity | <85% |
| Optimum RPM | 22503050RPM/min |
| Single thrust limitation | 25 kg |
| Package | Color box |
| Other accessories | 8 x M3*30mm mounting screws, 2 x cover plate |
Test Data
| RPM | Thrust (gf) | Torque (Nm) | Output Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 677 | 680 | 0.3 | 22.5 | 30.25 |
| 1119 | 1747 | 1.2 | 137.6 | 12.70 |
| 1459 | 3257 | 1.4 | 211.5 | 15.40 |
| 1748 | 4530 | 2.2 | 395.1 | 11.46 |
| 1987 | 6079 | 2.6 | 549.6 | 11.06 |
| 2253 | 7684 | 3.5 | 815.5 | 9.42 |
| 2536 | 9964 | 4.3 | 1148.0 | 8.68 |
| 2810 | 12098 | 5.2 | 1529.0 | 7.91 |
| 3093 | 14568 | 6.4 | 2068.3 | 7.04 |
| 3326 | 16650 | 7.4 | 2574.3 | 6.46 |
Whats Included
- 34.1 x 13.6 propellers: 2pcs
- Cover plate: 2pcs
- Hex socket cap head screw M3*30: 8pcs
Applications
- eVTOL / VTOL UAV propulsion systems
For compatibility questions (motor matching, mounting, or setup), contact support at https://rcdrone.top/ or email [email protected].
Details

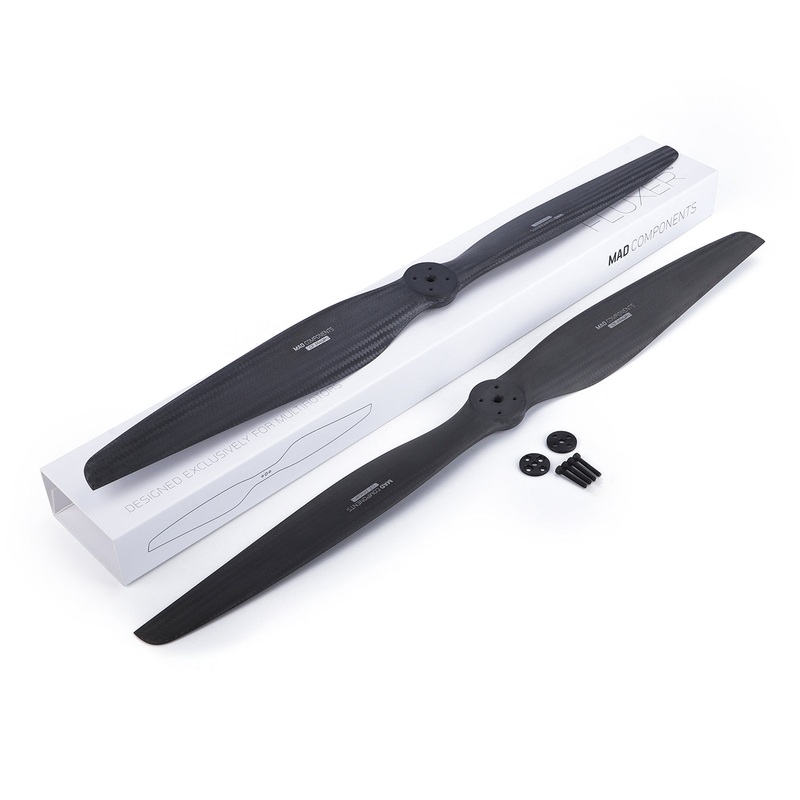

The FLUXER VTOL 34.113.6 carbon fiber prop set includes two props, two cover plates, and mounting hardware for installation.
