Overview

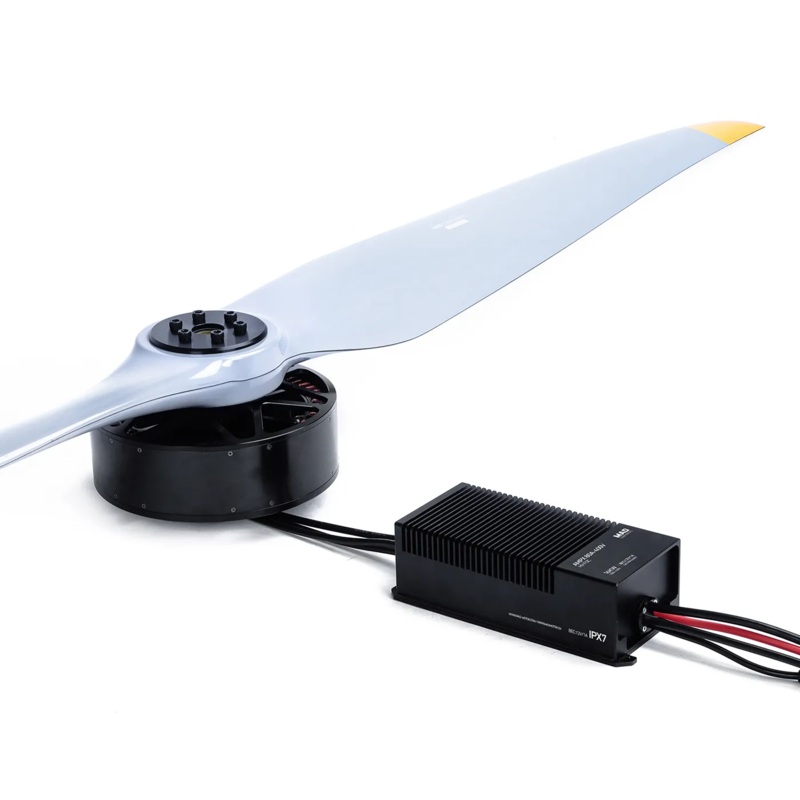

The MAD HB40 drone power combo integrates a motor, FOC ESC, and propeller as a matched propulsion system for large multi-rotor and e-VTOL platforms. The system is rated for 40 kg continuous thrust per rotor and up to 19 kW maximum power, for heavy-load applications. Configuration: MAD M50C35 EEE V2.0 motor + SineSic Pro 80A ESC + FLUXER PRO 63×22 in (glossy) propeller. Recommended operating voltage range: 100-600 V.
Key Features
- Designed for high-capacity multi-rotor and e-VTOL applications (heavy-payload lifting).
- Integrated propulsion unit with matched motor, ESC, and propeller.
- Recommended operating voltage range: 100-600 V.
- High-quality aviation-grade aluminum construction (durability-focused).
- Stable rotation and anti-fall properties supported by Japanese bearing.
- Curved magnets designed for elevated-temperature resistance (performance increase by 5% stated).
Specifications
Motor (MAD M50C35 EEE V2.0)
| RPM/V (KV) | 9 KV |
| Motor size | D:191 x 94 mm |
| Internal resistance | 174.5 m |
| No load current | 0.92 A / 30 V |
| Motor weight | 4200 g |
| Nominal voltage | 354 V-400 V |
| Cable length | 150 mm (extended enameled wires) |
| Maximum current | 53.4 A |
| Maximum power | 19142 W |
| Maximum thrust | 93 kg |
| Recommended continuous thrust | 40 kg |
| Shaft diameter | IN: 25 mm |
| Stator | TAIWAN / Anticorrosive |
ESC (SineSic Pro 80A 16KW (150V~435V))
| ESC model | SineSic Pro 80A 16KW (150V~435V) |
| Size (L*W*H) | 197.0*88.0*59.5 mm |
| Weight | 1400 g |
| Protection level | IP67 |
| Continuous current | 80 A (under good cooling) |
| Instant current | 150 A (under good cooling) |
| PWM input signal voltage | 3.3 V / 5 V |
| Recommended battery | 96~100S LiPo |
| Cable length (input) | 690 mm (10AWG silicone flexible wire) |
| Cable length (output) | 600 mm (10AWG silicone flexible wire) |
| Cable length (signal) | 1250 mm (9-core PVC flexible wire) |
| Cable length (LED wire) | 155 mm (4-core PVC flexible wire with waterproof connector) |
Propeller (FLUXER 63X22 GLOSSY)
| Propeller model | FLUXER 63X22 GLOSSY (1600.2 x 558.8 mm) |
| Material | High quality carbon fiber + resin |
| Type | Fixed |
| Single weight | 1083 g |
ESC Line / Signal Definition (as labeled)
- Power input: Red V+, Black V-
- Motor outputs: Output U, Output V, Output W
- Interfaces/functions labeled: blade positioning/temperature monitoring, connect light board, PWM input, CAN1, CAN2, 12V/1A output
Test Data
Analytical graph/test notes state: data measured at an input voltage of 400 V, at a temperature of 25C and sea level; rotational speed adjusted by the throttle.
354 V Test Table
| Throttle [%] | Voltage [V] | Current [A] | Input Power [W] | Output Power [W] | Torque [N*m] | RPM | Thrust [gf] | Efficiency [%] | Efficiency [gf/W] |
|---|---|---|---|---|---|---|---|---|---|
| 30 | 353.68 | 3.09 | 1092.9 | 908.4 | 8.961 | 968 | 12270 | 83.1 | 11.2 |
| 35 | 353.69 | 4.68 | 1655.3 | 1418.9 | 11.980 | 1131 | 17063 | 85.7 | 10.3 |
| 40 | 353.66 | 6.65 | 2351.8 | 2039.2 | 15.213 | 1280 | 22008 | 86.7 | 9.4 |
| 45 | 353.7 | 9.16 | 3239.9 | 2820.6 | 18.968 | 1420 | 27779 | 87.1 | 8.6 |
| 50 | 353.63 | 12.1 | 4278.9 | 3768.5 | 23.068 | 1560 | 33780 | 88.1 | 7.9 |
| 55 | 353.68 | 15.35 | 5429.0 | 4801.4 | 27.114 | 1691 | 40352 | 88.4 | 7.4 |
| 60 | 353.68 | 19.31 | 6829.6 | 6005.0 | 31.699 | 1809 | 46801 | 87.9 | 6.9 |
| 65 | 353.62 | 23.33 | 8250.0 | 7284.6 | 36.024 | 1931 | 52449 | 88.3 | 6.4 |
| 70 | 353.65 | 27.13 | 9594.5 | 8442.8 | 39.521 | 2040 | 59395 | 88 | 6.2 |
| 75 | 353.68 | 32.18 | 11381.4 | 10026.5 | 44.533 | 2150 | 66751 | 88.1 | 5.9 |
| 80 | 353.59 | 37.55 | 13277.3 | 11705.6 | 49.482 | 2259 | 74365 | 88.2 | 5.6 |
| 85 | 353.56 | 44.12 | 15599.1 | 13613.2 | 55.341 | 2349 | 82174 | 87.3 | 5.3 |
| 90 | 353.59 | 49.34 | 17446.4 | 15225.8 | 59.321 | 2451 | 87230 | 87.3 | 5.0 |
| 95 | 353.59 | 54.14 | 19143.4 | 16569.6 | 63.520 | 2491 | 94370 | 86.6 | 4.9 |
| 100 | 353.59 | 53.4 | 18881.7 | 16349.4 | 62.701 | 2490 | 92954 | 86.6 | 4.9 |
400 V Test Table
| Throttle [%] | Voltage [V] | Current [A] | Input Power [W] | Output Power [W] | Torque [N*m] | RPM | Thrust [gf] | Efficiency [%] | Efficiency [gf/W] |
|---|---|---|---|---|---|---|---|---|---|
| 30 | 399.39 | 2.72 | 1086.3 | 897.2 | 8.869 | 966 | 12248 | 82.6 | 11.3 |
| 35 | 399.44 | 4.18 | 1669.7 | 1384.7 | 11.859 | 1115 | 16823 | 82.9 | 10.1 |
| 40 | 399.39 | 5.99 | 2392.3 | 2057.4 | 15.313 | 1283 | 21335 | 86 | 8.9 |
| 45 | 399.42 | 8.39 | 3351.1 | 2851.2 | 19.448 | 1400 | 28333 | 85.1 | 8.5 |
| 50 | 399.42 | 10.9 | 4353.7 | 3761.3 | 23.143 | 1552 | 33868 | 86.4 | 7.8 |
| 55 | 399.41 | 13.35 | 5332.4 | 4634.4 | 26.264 | 1685 | 39527 | 86.9 | 7.4 |
| 60 | 399.37 | 16.88 | 6741.4 | 5872.9 | 31.105 | 1803 | 45995 | 87.1 | 6.8 |
| 65 | 399.41 | 20.33 | 8120.0 | 7098.4 | 35.140 | 1929 | 52180 | 87.4 | 6.4 |
| 70 | 399.38 | 24.38 | 9736.9 | 8554.7 | 40.045 | 2040 | 59592 | 87.9 | 6.1 |
| 75 | 399.34 | 28.8 | 11501.0 | 10049.6 | 44.698 | 2147 | 66446 | 87.4 | 5.8 |
| 80 | 399.37 | 33.23 | 13271.1 | 11517.0 | 49.098 | 2240 | 72801 | 86.8 | 5.5 |
| 85 | 399.37 | 38.37 | 15323.8 | 13225.2 | 53.764 | 2349 | 79231 | 86.3 | 5.2 |
| 90 | 399.34 | 44.67 | 17838.5 | 15257.3 | 59.982 | 2429 | 89785 | 85.5 | 5.0 |
| 95 | 399.31 | 48.16 | 19230.8 | 16481.5 | 62.829 | 2505 | 93588 | 85.7 | 4.9 |
| 100 | 399.3 | 47.94 | 19142.4 | 16391.8 | 62.462 | 2506 | 92356 | 85.6 | 4.8 |
What’s Included
- MAD M50C35 EEE V2.0 motor (9 KV)
- SineSic Pro 80A ESC (16KW, 150V~435V)
- FLUXER PRO 63×22 in GLOSSY carbon fiber propeller
Applications
- Large multi-rotor drones
- e-VTOL platforms
- Heavy-load aerial platforms
- Delivery drone and urban mobility concepts
For integration/selection questions, contact [email protected] or visit https://rcdrone.top/.
Details
The MAD Hummingbird HB40 power combo pairs a drone motor and ESC with a spec sheet that includes basic parameters and performance curves.
MAD HB40 drone power combo documentation includes motor and ESC dimension diagrams to help plan mounting, stack layout, and wiring.
The MAD HB40 drone power combo includes a clear ESC wiring layout, propeller mounting measurements, and reference test data for setup and tuning.
