Product Overview:
Engineered for 2.55 kg single-axis payloads
Optimized for use with 1824 inch carbon fiber propellers
Supports a broad voltage range from 6S to 12S

Specification

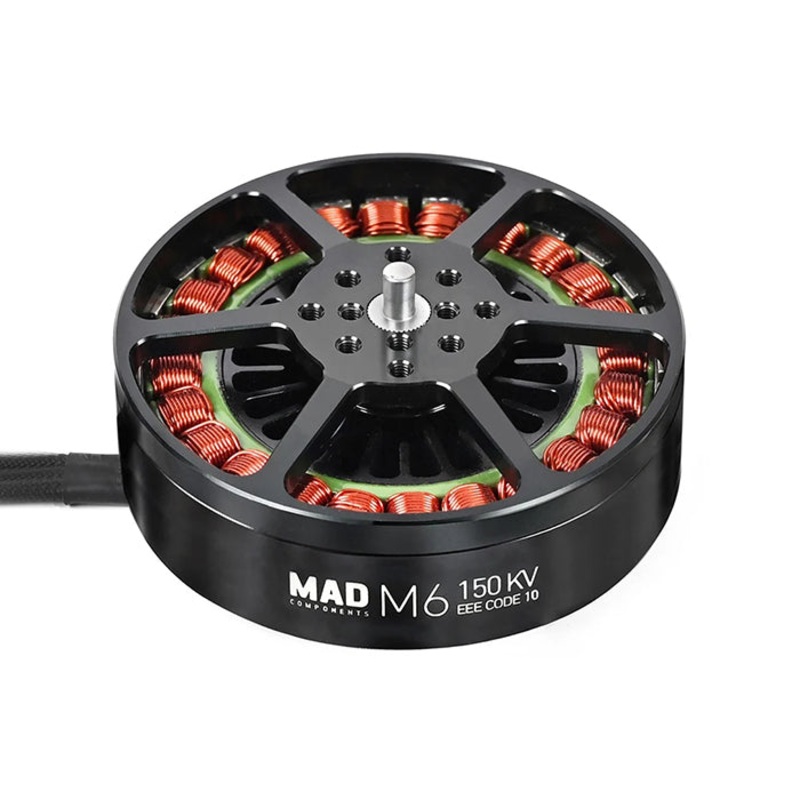

Motor Model	MAD M6C10 EEE V2.0	Number of pole pairs	14
Stator	Anticorrosive	Varnished wire Degree	180C
Motor Size	D:72 31.4 mm	Magnet Degree	150C
Degree of Protection	Rain protection	Cable Length	60 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	Independent	Rotor Balance	5 mg
Propeller Mounting Holes	D:12 M34,D:18 M34,D:22 M34	Motor Balance	10 mg
Shaft Diameter	IN: 6 mm	Motor Mounting Holes	D:25 M34, D:32 M44
Bearing	EZO 696ZZ*2	Disruptive test	500 V

Main Features:
Sustained thrust: 2.5~5kg
Max thrust: 10.4kg
Supported voltage: 150KV/12S; 200KV/12S; 250KV/12S; 300KV/6S
Weight: 209g, 210g, 220g, 213g

Applicable Models:
Medium to heavy-lift multi-rotor drones requiring 2.55 kg payload capacity per motor
Builders focused on efficiency and power in the ANTIMATTER motor lineup

Recommended Accessories:

ESC: AMPX 40A (5-14S) HV, AMPX 60A (5-14S), XROTOR Pro 60A (4-6S)

Propellers: FLUXER PRO 22×6.6 MATT, FLUXER PRO 21X6.3 MATT, CF FLUXER 22.1X7.4 VTOL, HAvOC 22×7.0 folding, FLUXER PRO 24X7.2 MATT, FLUXER PRO 2OX6.0 MATT, FLUXER PRO 19X5.7 MATT, FLUXER PRO 18X6.1 MATT, CF FLUXER 18.1X7.2 VTOL

Selection and Installation Precautions:

Propeller size and pitch should match your aircraft configuration unsuitable propellers will reduce efficiency or cause motor/ESC overload.

Use an appropriately sized ESC and ensure the wiring can handle continuous and peak currents.

Ensure the structural support and connectors can withstand torque and dynamic loads.

Perform balance checks and routine inspections before each manned flight.

Local aviation and manned flight regulations must be followed. Frequently Asked Questions:

Q: Which propeller should I use? A: Propellers: FLUXER PRO 22×6.6 MATT, FLUXER PRO 21X6.3 MATT, CF FLUXER 22.1X7.4 VTOL, HAvOC 22×7.0 folding, FLUXER PRO 24X7.2 MATT, FLUXER PRO 2OX6.0 MATT, FLUXER PRO 19X5.7 MATT, FLUXER PRO 18X6.1 MATT, CF FLUXER 18.1X7.2 VTOL
Q: Which ESCs are compatible?

A: Please use the models provided by the manufacturer: ESCs: AMPX 40A(5-14S)HV, AMPX 60A(5-14S), XROTOR Pro 60A(4-6S)
Q: What is the delivery time?

A: Delivery time is usually 7-14 days, but please confirm current stock and specific delivery time at checkout.
