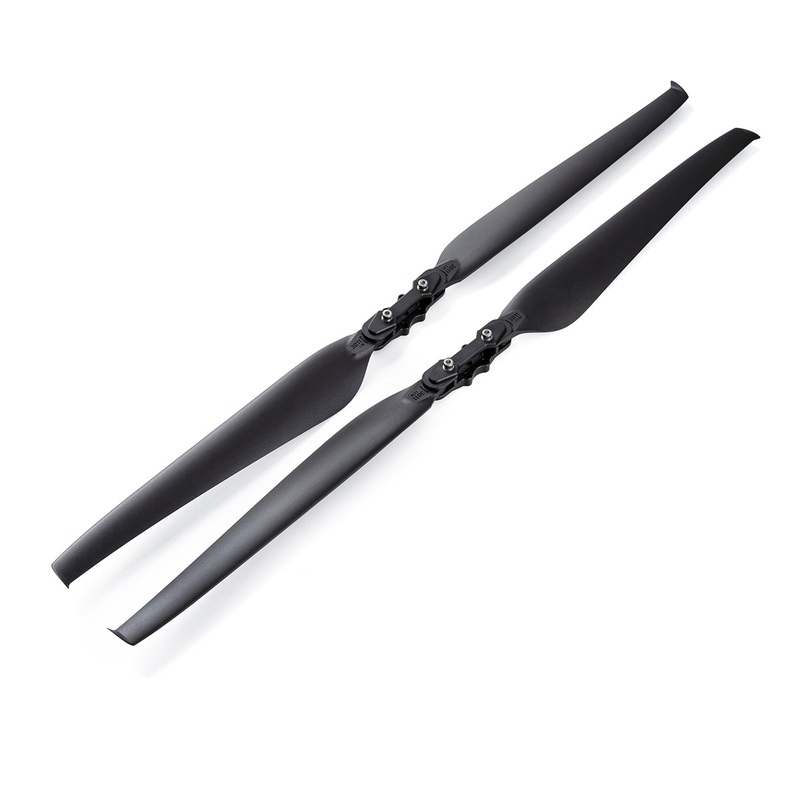

MAD TIPUP 30x11in Drone Folding Propeller Set, Composite Polymer/Carbon Fiber, Lock Mechanism, M3x12

Overview

MAD TIPUP 30x11in drone folding propeller built with composite carbon fiber and engineering plastic for a folding-prop structure intended for endurance flight.

Key Features

• Upward wingtip design to reduce airflow interference for lower vibration and noise
• Optimized moment of inertia for more sensitive, responsive reaction
• Propeller lock mechanism (designed and proved to ensure safety flight)
• Folding design for more compact transport and storage

Specifications

Model	TIPUP 30X11 FOLDING PROP
Size	784 x 279.4 mm
Single Weight	1912 g
Material	Composite carbon fiber and engineering plastic
Structure	Folding propeller
Working Temp	-10C~50C
Storage Humidity	<85%
Recommended Thrust/RPM	5.0~9.0 kg / 2500~4000RPM
Single Thrust Limitation	18 kg
Drawing Dimensions	Length: 784; Hub: 103 / 80 / 48; Holes: 4-3.2; 10; 31

Test Data

RPM	Thrust (gf)	Torque (Nm)	Output Power (W)	Efficiency (gf/W)
479	145	0.1	4.0	36.2
971	731	0.3	33.5	21.8
1415	1822	0.7	108.1	16.8
1808	3154	1.2	227.3	13.9
2218	4821	1.8	418.0	11.5
2642	7033	2.6	722.2	9.7
3003	8931	3.4	1056.8	8.5
3349	10914	4.1	1423.9	7.7
3652	13642	5.2	1973.6	6.9
4029	16697	6.3	2645.5	6.3

Whats Included

• TIPUP FOLDING PROP 30X11: 2pcs
• Hexagon socket head screws M3X12: 8pcs

Applications

• Endurance flight setups
• Mapping
• Routing inspection
• Aerial photography
• Rescue

For compatibility and installation questions, contact [email protected].

Details

The MAD TIPUP 30x11in folding propeller uses an upward wingtip design aimed at reducing airflow interference and vibration.

MAD TIPUP folding propellers are designed for endurance flight and use a propeller lock mechanism to help keep the blades secure in use.

The MAD TIPUP 30×11 folding propeller includes two blades and mounting screws, with a spec and thrust/RPM test table for setup reference.
