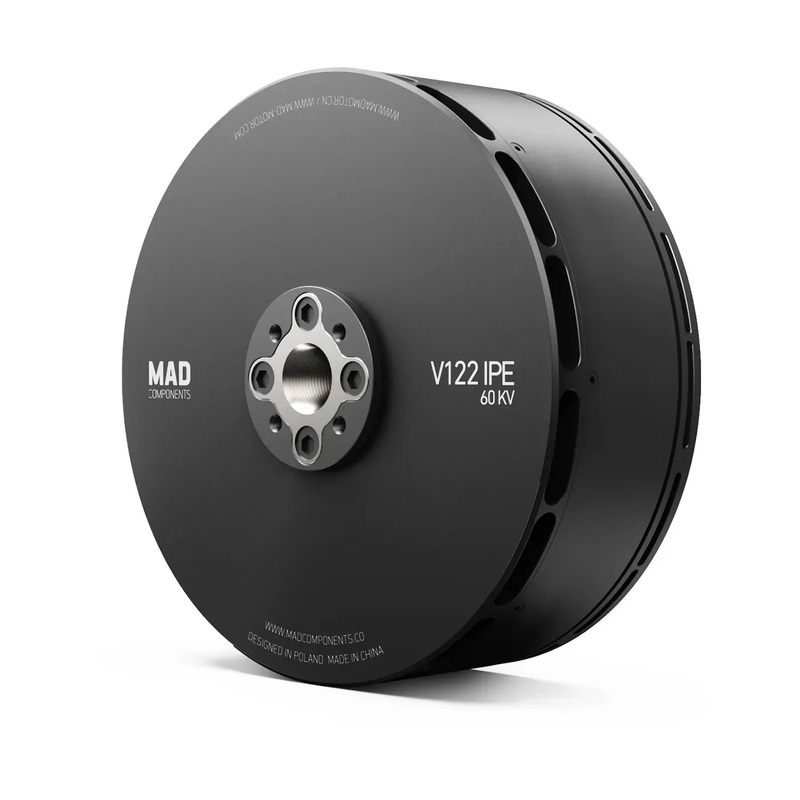

V122 VTOL Drone Motor Overview
The MAD V122 IPE V2.0 motor is a high-performance. anticorrosive motor designed for VTOL drones. With a stator size of D:72 33.5 mm and an IP35 degree of protection. it ensures durability and reliable operation in various conditions. The motor features a 19 pole pair configuration. varnished wire capable of withstanding 220C. and a maximum motor balance temperature of 180C.
Designed for efficient heat dissipation. this motor includes centrifugal heat dissipation and multiple propeller mounting hole configurations (D:24 M44. D:30 M54. and D:50 M64). The shaft diameter is 20 mm. and the motor includes 6904ZZ*2 bearings for smooth operation. Additionally. it supports a cable length of 150 mm with extended enameled wires. ensuring easy connectivity.
With a no-load current of 1.5A/30V. the motor weighs 1600 g and can handle a maximum current of 114 A. delivering a thrust of up to 48 kg. It operates at a nominal voltage of 24S lipo battery. with an internal resistance of 58.6m. and provides a maximum power output of 10248W and maximum torque of 19.8 Nm. The motor is suitable for large UAVs with recommended propellers of 40×13.1 and 42×14. supporting take-off weights up to 76kg for quadcopters and 152kg for octocopters. with a single rotor take-off weight ranging from 16kg to 20kg.
Motor Data Table
| Parameter | Value |
|---|---|
| Motor Model | MAD V122 IPE V2.0 |
| Number of pole pairs | 19 |
| Stator | Anticorrosive |
| Varnished wire Degree | 220C |
| Motor Size | D:72 33.5 mm |
| Degree of Protection | IP35 |
| Centrifugal Heat Dissipation | YES |
| Propeller Mounting Holes | D:24 M44. D:30 M54 |
| Shaft Diameter | IN: 20 mm |
| Bearing | 6904ZZ*2 |
| Motor Balance | 180C |
| Cable Length | 150 mm (extended Enameled wires) |
| Rotor Balance | 10 mg |
| Motor Balance (second mention) | 20 mg |
| Motor Mounting Holes | D:50 M64 |
| Disruptive test | 500 V |
Specifications Table
| Parameter | Value |
|---|---|
| RPM/V | 45 KV |
| No Load Current | 1.5A/30V |
| Motor Weight | 1600 g |
| Maximum Current | 114 A |
| Maximum thrust | 48 kg |
| Recommended ESC | MAD AMPX 200A (12-24S) |
| Nominal Voltage | 24S lipo battery |
| Internal resistance | 58.6m |
| Product Boxed Weight | 2580g (260 x 210 x 120 mm) |
| Maximum Power | 10248W |
| Maximum Torque | 19.8 Nm |
| Recommended Propellers | 40×13.1 . 42×14 |
| UAV take-off weight | 24S:42/ 76kg–Quadcopter 114kg–Hexacopter 152kg–Octocopter |
| Single rotor take-off weight | 16kg ~ 20kg |
