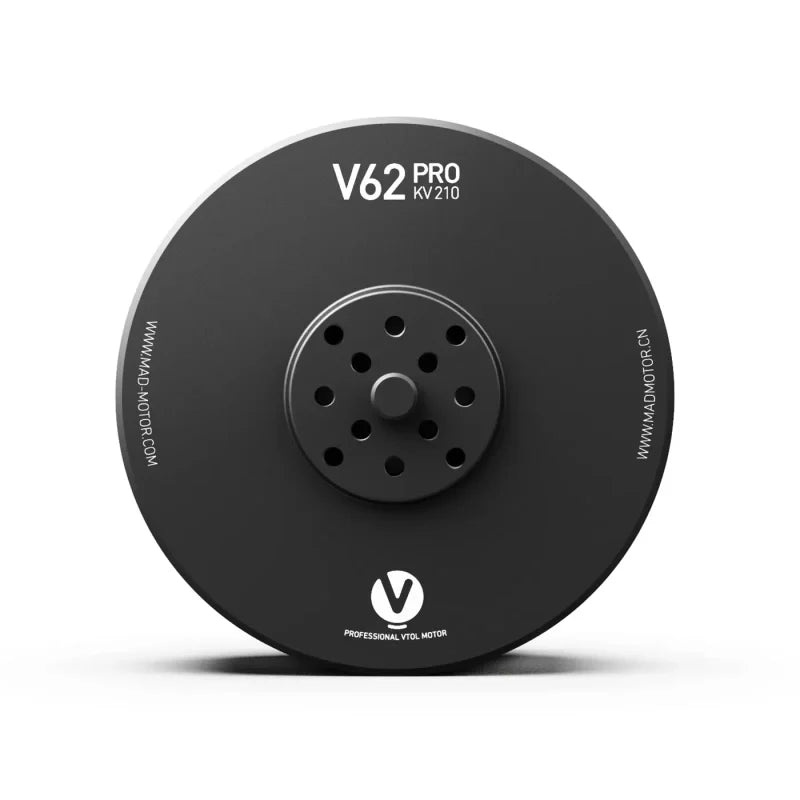

MAD V62 PRO VTOL Drone Motor SPECIFICATIONS
Motor Data
| Motor Model | MAD V62 PRO V1.0 | Number of Pole Pairs | 14 |
|---|---|---|---|
| Stator | Japan / Anticorrosive | Varnished Wire Degree | 180C |
| Motor Size | D:72 x 37.5mm | Magnet Degree | 150C |
| Degree of Protection | Rain Protection | Cable Length | 80 mm (extended Enameled wires) |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | 5 mg |
| Propeller Mounting Holes | D:12 M3x4. D:18 M3x4. D:22 M3x4 | Motor Balance | 10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:25 M3x4. D:30 M3x4 |
| Bearing | EZ0 6801ZZ*2 | Disruptive Test | 500 V |
| Additional Accessories | M6 Propeller Plate 1. 3.5mm Bullet Connector3. Heat Shrinkable Tube3. M310mm 4 Motor Screws. M312mm 2. M318mm 2. Propeller Screws. Sticker1 |
Specifications
| RPM/V | 210KV | Nominal Voltage | 12S lipo battery |
|---|---|---|---|
| No Load Current | 1.8A / 20V | Internal Resistance | 47m |
| Motor Weight | 323 g | Product Boxed Weight | 453g (110 x 110 x 55 mm) |
| Maximum Current | 59.3 A | Maximum Power | 2846W |
| Maximum Thrust | 11.6 kg | Maximum Torque | 3.13Nm |
| Recommended ESC | MAD AMPX 80A (5-14S) | Recommended Propellers | 22.1×7.4 |
| UAV Take-off Weight | 125-22” / 20kg–Quadcopter. 30kg–Hexacopter. 40kg–Octocopter | Single Rotor Take-off Weight | 3.5kg ~ 6.0kg |
MAD V62 PRO VTOL Drone Motor Description
MAD V62 VTOL drone motor designed to carry payloads of 4-5kg per rotor. with 18-22 carbon propeller. Max thrust is up to 11.5kg per rotor. unit motor only weighs 270g.
Built for 15-20kg MTOW professional industrial VTOL fixed-wing UAS. with large pitch VOTL CF propellers. achieving large load. high efficiency and superb reliability. providing reliable power support for various endurance flight of professional aerial photography and industry applications. i.e.: surveying. mapping exploration. security inspection. etc.
