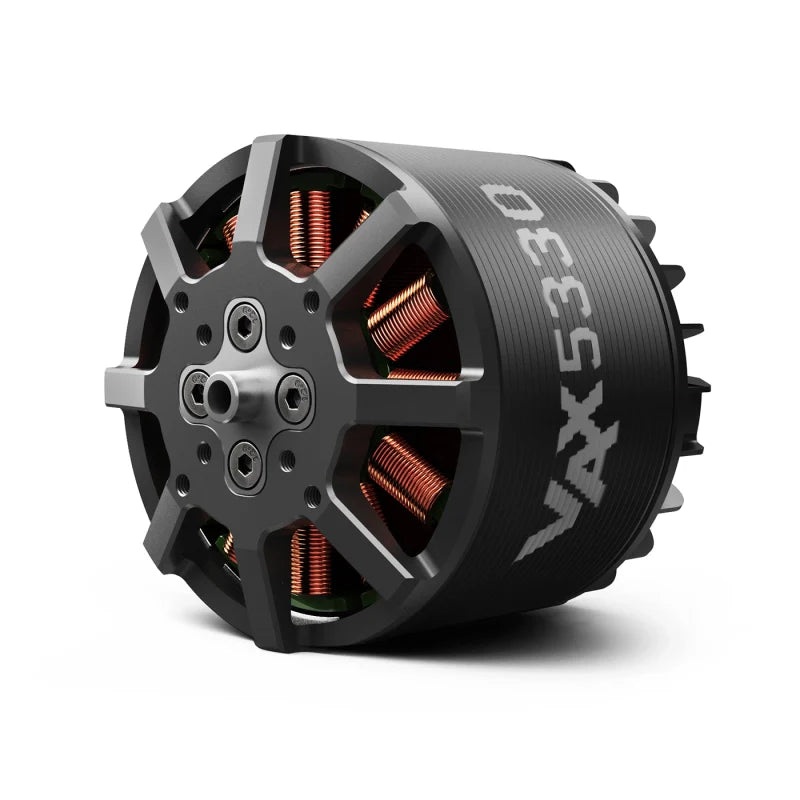

MAD VAX 5330 (short shaft) EVTOL Airplane Drone motor

Product Overview:

1. Designed for EVTOL, AIRCRAFT, XCLASS to carry 4-5 kg, supports 12S voltage. 2. For long range flight. It also retains the excellent features and characteristics of the previous generation and improves the safety and durability of the motor, which fully meets the demanding requirements of various industries.

Motor Data
Motor Model	MAD VAX 5330 EEE V1.0	Number of pole pairs	7
Stator	Anticorrosive	Varnished wire Degree	180C
Motor Size	D:61.1 63 mm	Magnet Degree	150C
Degree of Protection	Rain protection	Cable Length	150 mm 14# Awg(Black) silicone
Centrifugal Heat Dissipation	Independent	Rotor Balance	5 mg
Propeller Mounting Holes	D:31 M34, D:20 M34	Motor Balance	10 mg
Shaft Diameter	IN: 8 mm	Motor Mounting Holes	D:30 M44, D:44 M44
Bearing	688ZZ*2 / 1980*1	Disruptive test	500 V

Key Highlights:

Recommended Hover Thruster: 4.0~5.0 kgf

Maximum Weight: 11.2 kgf

Optimized Weight: 570 g

Suitable for:

eVTOL drones

Recommended Accessories:

ESCs: AMPX 80A (5-14S), AMPX 120A (5-14S)

– Propellers: 22*10, 18*12, 19*10, 20*10

Selection and Installation Notes:

The propeller size and pitch should match your aircraft configurationan incorrect propeller will reduce efficiency or overload the motor/ESC.

Use an ESC with appropriate power rating and wiring harness capable of handling continuous and peak motor current.

Ensure the structural support and couplings can withstand torque and dynamic loads.

Perform a balance check and routine inspection before each manned flight.

Local aviation and manned flight regulations must be followed.

Frequently Asked Questions:

Q: Which propeller should I use?

A: Propellers: 22*10, 18*12, 19*10, 20*10
Q: Which ESC is compatible?

A: Please use the model provided by the manufacturer: ESC: AMPX 80A (5-14S), AMPX 120A (5-14S)
Q: What is the delivery time? A: Delivery time is usually 7-14 days, but please confirm the current inventory and shipping time at checkout.

220KV

260KV
