Overview

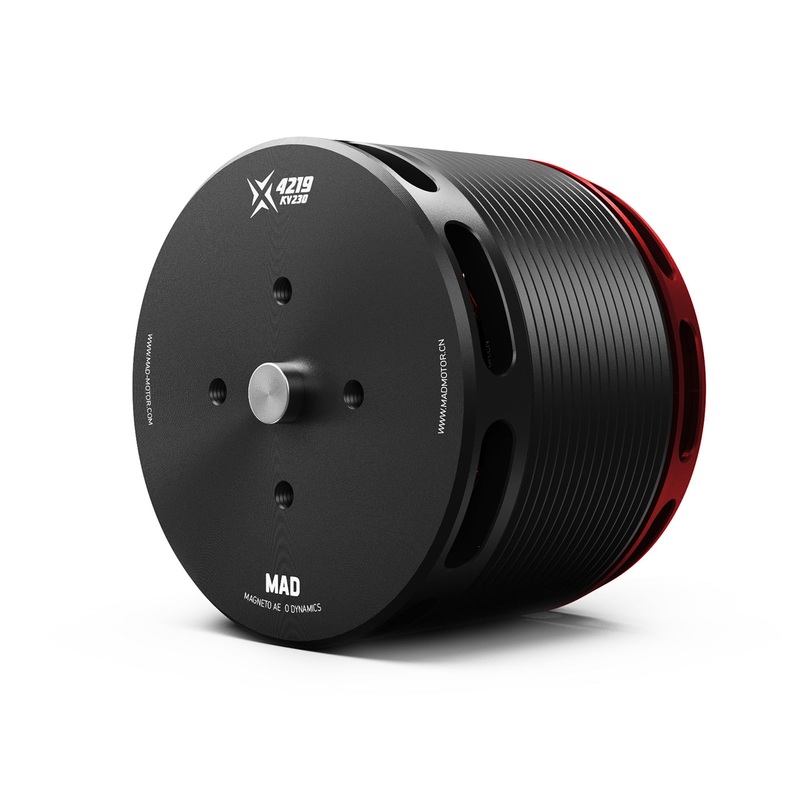

MAD X4219 IPE V1.0 (short shaft) is an eVTOL airplane drone motor designed for endurance flying in harsh conditions. It features IP35 protection and supports multiple KV options (270KV / 550KV / 600KV) with published propeller test data.
Key Features
- Degree of protection: IP35 (water and dust resistant)
- Max thrust (by KV option): 6.8 kgf (270KV), 5.5 kgf (550KV), 5.0 kgf (600KV)
- Recommended hover thrust: 2.03.0 kgf
- Centrifugal heat dissipation: YES
- Anticorrosive stator
- Varnished wire degree: 180C; magnet degree: 150C
- Balance: rotor balance 5 mg; motor balance 10 mg
Specifications
| Motor model | MAD X4219 IPE V1.0 (short shaft) |
| Number of pole pairs | 7 |
| Motor size | D:50 47 mm |
| Degree of protection | IP35 |
| Cable length | 110 mm 14# Awg(Black) silicone |
| Propeller mounting holes | D:20 M34 / M8 Nut |
| Shaft diameter | IN: 6 mm |
| Motor mounting holes | D:30 M44, D:56 M44, D:60 M44 |
| Bearing | STT 696 ZZ |
| Disruptive test | 500 V |
Drawing and mount holes (dimension callouts)
- Prop mount pattern: 20-M34; plate 50
- Motor body diameter: 50
- Overall length callouts: 47 mm / 41 mm / 4 mm
- Shaft callout: 6.1
- Motor mount pattern callout: 30-M44
- Additional callouts shown: 4-6, 4-3.2, 20, 28, 6, 3.5, 28, 18, 8, M8 P1mm, M4, 4-7.8, 4-4.2, 4.1, 60, 56, 70, 15
For integration guidance (prop/ESC matching, mounting compatibility, and wiring questions), contact [email protected] or visit https://rcdrone.top/.
Whats Included
- Motor 1
- Prop Adapter 1
- Propeller Plate 1
- Cross Grating 1
- Support Rod 1
- 4.0mm Bullet Connector 3
- Heat Shrinkable Tube 3
- M410 Motor Screws 4
- M38 Prop Adapter Screws 4
- M410 Countersunk Head Bracket Screw 4
- M3 Machine Screw 1
- M8 Nut 1
- Sticker 2
KV Options & Test Data
270KV (12S)
- Energy efficient 270KV (Industry Professional Edition)
- Recommended hover thrust: 2.03.0 kgf; maximum thrust: 6.8 kgf
- Optimized weight: 280 g; efficiency >80%
- Nominal voltage: 12S lipo battery
- No load current: 0.6A / 20V; internal resistance: 50m
- Maximum current: 52.8 A; maximum power: 2233W; maximum torque: 1.9 Nm
- Recommended ESC: MAD AMPX 80A (5-14S)
- Recommended propellers: 15×8, 16×8
- UAV take-off weight: 12S-16″/ 8kg–Quadcopter; 12kg–Hexacopter; 16kg–Octocopter
- Single rotor take-off weight: 2kg ~ 3kg
- Product boxed weight: 532g (110 x 110 x 95 mm)
550KV (6S)
- Energy efficient 550KV (Industry Professional Edition)
- Recommended hover thrust: 2.03.0 kgf; maximum thrust: 5.5 kgf
- Optimized weight: 282 g; efficiency >76%
- Nominal voltage: 6S lipo battery
- No load current: 1.5A / 10V; internal resistance: 14.2m
- Maximum current: 76.8 A; maximum power: 1498W; maximum torque: 1.3 Nm
- Recommended ESC: MAD AMPX 80A (5-14S)
- Recommended propellers: 15×8, 16×8
- UAV take-off weight: 6S-16″/ 8kg–Quadcopter; 12kg–Hexacopter; 16kg–Octocopter
- Single rotor take-off weight: 2kg ~ 3kg
- Motor weight (spec table): 286 g; product boxed weight: 538g (110 x 110 x 95 mm)
600KV (6S)
- Energy efficient 600KV (Industry Professional Edition)
- Recommended hover thrust: 2.03.0 kgf; maximum thrust: 5.0 kgf
- Optimized weight: 281 g; efficiency >79%
- Nominal voltage: 6S lipo battery
- No load current: 1.6A / 10V; internal resistance: 12.2m
- Maximum current: 78.2 A; maximum power: 1505W; maximum torque: 1.2 Nm
- Recommended ESC: MAD AMPX 80A (5-14S)
- Recommended propellers: 14×7, 15×8
- UAV take-off weight: 6S-15″/ 8kg–Quadcopter; 12kg–Hexacopter; 16kg–Octocopter
- Single rotor take-off weight: 2kg ~ 3kg
- Product boxed weight: 537g (110 x 110 x 95 mm)
Test Data Notes (from provided charts)
- Analytical graph fields: I (Current), P (Input Power), (Electrical Efficiency), T (Thrust), N (Rotational Speed).
- 270KV charts note measurements at 48 V, 25C, sea level; rotational speed adjusted by throttle.
- 550KV/600KV charts note measurements at 24 V, 25C, sea level; rotational speed adjusted by throttle.
Details
The MAD X4219 short shaft motor uses a 50 mm can diameter with clearly dimensioned M3/M4 mounting patterns for straightforward airframe and bracket fitment.
The MAD X4219 IPE V1.0 short-shaft motor package includes the prop adapter, mounting hardware, bullet connectors, and heat-shrink tubing for installation.
The MAD X4219 short shaft motor is listed at 280g and >80% efficiency, with performance curves and test data provided for setup and prop selection.
MAD X4219 short shaft motor test data lists up to 5.5 kgf max thrust, 282 g weight, and efficiency curves for setup planning.
MAD X4219 short shaft eVTOL motor datasheet lists a 600KV option, 281 g weight, and thrust ranges of 2030 kgf and up to 50 kgf.
