SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y,3-6y,6-12y,0-3y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

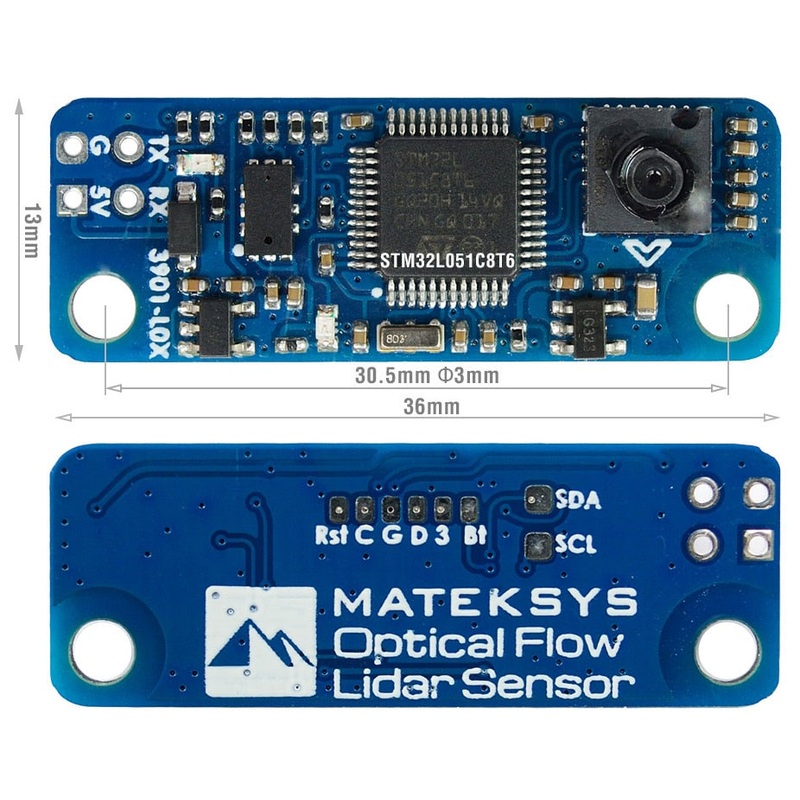

OPTICAL FLOW&LIDAR SENSOR 3901-L0X

Specifications

• Optical Flow: PMW3901

• Lidar: VL53L0X

• Interface UART

• Protocol: MSP

• Working Range: 8cm~200cm

• Field of view: 42 degree(PMW3901), 27 degree(VL53L0X)

• Minimum Illumination >60Lux

• Input voltage: 4.5~5.5V

• Power Consumption: 40mA

• Size: 36*12mm (F051 version), 2g

• Size: 36*13mm (L051 version) 2g

Packing

• Module 3901-L0X, 1pc

Tips

• Make sure Optical Flow lens to ground >2cm for opflow initialization while FC starting up.

• Maximum range of VL53L0X is 2m, Altitude hold 0~2m @ throttle 0~100% if VL53L0X is enabled.

• Any unused UART of FC supports it

• Sonar connection (Trig & Echo) has not been implemented

• If your flight controller doesnt have a barometer detected, you wont be able to select NAV ALTHOLD in modes tab.
