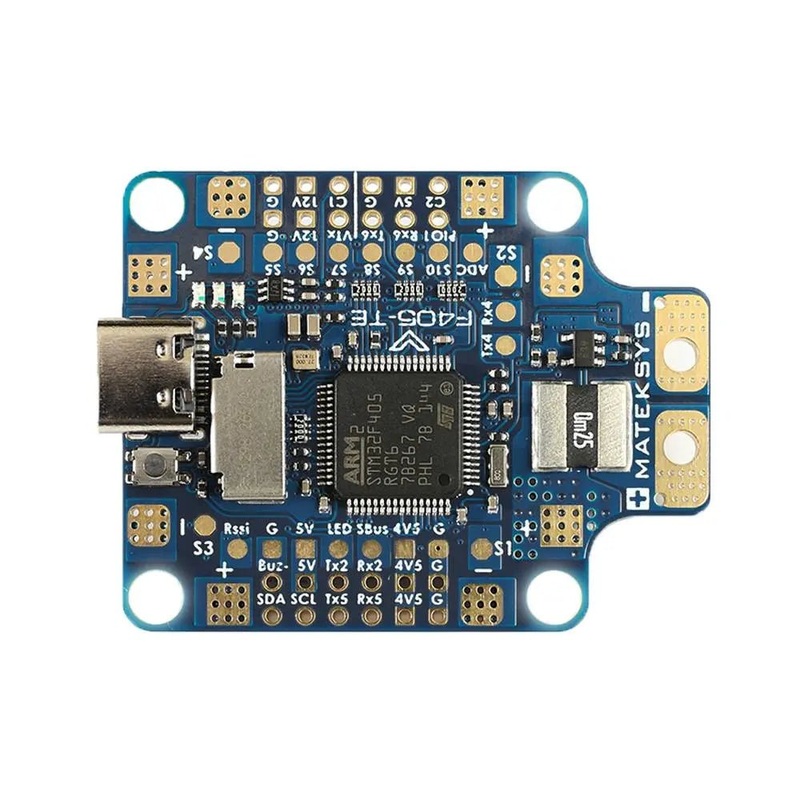

Matek F405-TE 30×30 Flight Controller w/ Built-in PDB

Another feature rich offering from Matek in the 30×30 class. Loaded with features for digital and analog builds. Matek leads the pack when it comes to quality and performance. This flight controller is great for anyone wanting to run 4 individual ESCs due to its built-in PDB.

Check out our30×30 Flight Controllersas well asthe entire Matek selection!

Features

The MATEKSYS F405-TE Flight Controller features a 30.5 x 30.5mm mounting pattern and weighs 10g. It features a Barometer, Micro SD Slot, 6x UARTS, 11x PWM outputs, 9-36V DC IN (3-8S LiPo), 220A Current Sensor, BEC 12V 2A, 5V 1.5A and Dual analog camera signal inputs.

Specifications

• MCU: 168MHz STM32F405RGT6
• IMU: ICM42688-P (SPI)
• Baro: SPL06-001 (I2C)
• OSD: AT7456E (SPI)
• Blackbox: MicroSD slot (SPI)
• 6x UARTs, 1x Softserial_Tx option(INAV/BF)
• 11x PWM outputs (8x Dshot compatible with BF/ArduPilot)
• 1x I2C
• 4x ADC (VBAT, Current, RSSI, Airspeed)
• 1x spare PINIO
• 4x individual ESC power/signal pads
• 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
• Built in inverter on UART2-RX for SBUS input
• Switchable Dual Camera Input

PDB Specifications

• Input: 9~36V (3~8S LiPo)
• PDB: 4x 35A (Max.4x 50A)
• BEC: 5V 1.5A
• BEC: 12V 2A
• LDO 3.3V: 200mA
• Current Senor: 220A, 3.3V ADC (INAV/BF scale 150, ArduPilot 66.7 A/V)
• Battery Voltage divider 1K:20K (INAV scale 2100, BF scale 210, ArduPilot BATT_VOLT_MULT 21.0)

Firmware

• ArduPilot: MatekF405-TE
• INAV: MATEKF405TE_SD
• BetaFlight: MATEKF405TE_SD

Dimensions

• Mounting: 30.5 x 30.5mm, 4mm with Grommets 3mm
• Dimensions: 36 x 46 mm
• Weight: 10g

Includes

• Matek F405-TE Flight Controller
• 6x silicon grommets M4 to M3
• 1x Rubycon ZLH 35V/470uF (Low ESR)
