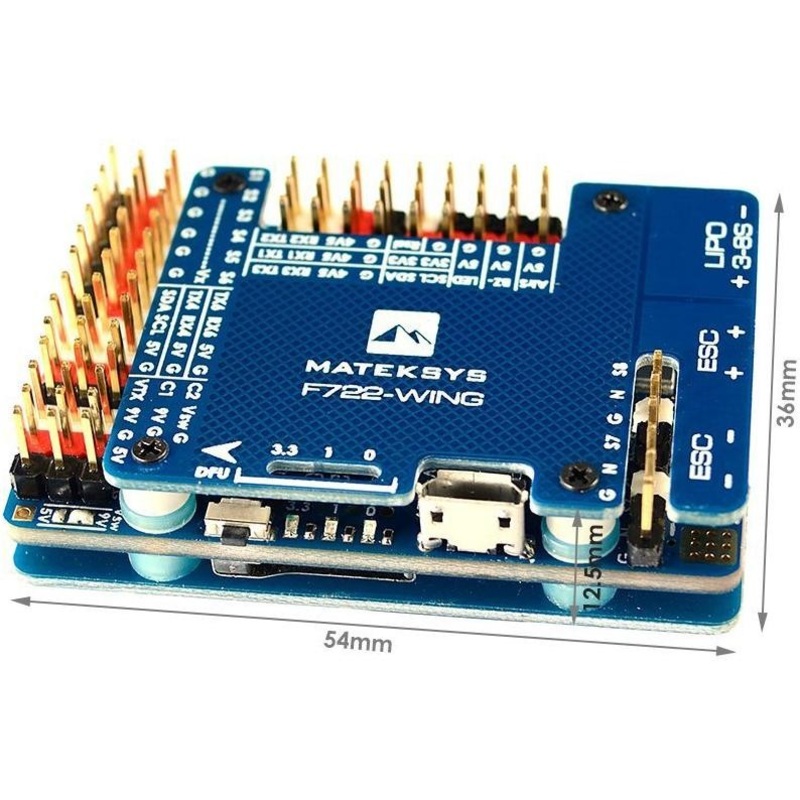

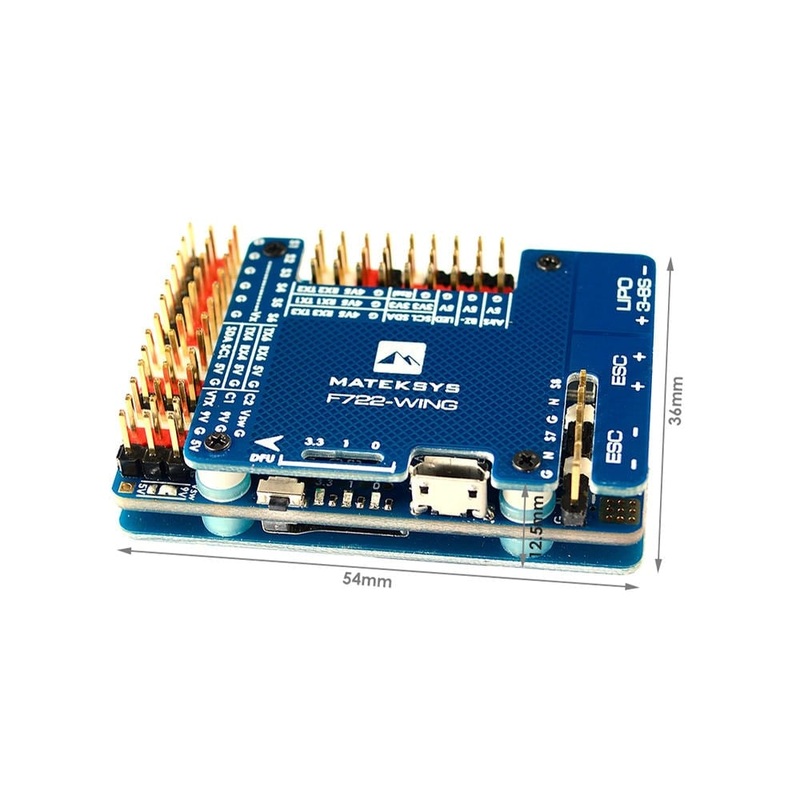

The Matek F722 Wing takes everything you loved about the F405, but beefs up the processor to give you extra processing power to crank up the PID loop speed. The F722 packs in all the sensors you need for fixed wing flight as well as offering high spec BECs to power everything on your drone.

Specifications

• MCU: 216MHz STM32F722RET6
• IMU: MPU6000 (SPI)
• Baro: BMP280 (I2C)
• OSD: AT7456E (SPI)
• Blackbox: MicroSD card slot (SPI)
• 5x Uarts (1,2,3,4,6) with built-in inversion
• 1x Softserial-Tx
• 2x Motors, 6x Servos outputs
• 1x I2C
• 4x ADC (VBAT, Current, RSSI, AirSpeed)
• 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
• Switchable Dual Camera Inputs
• Switchable 5V/9V for Camera/VTX
• High-precision Current Sense
• TR/SA VTX control: Yes
• WS2812 Led Strip : Yes
• Beeper : Yes
• RSSI: Yes
• Analog Airspeed sensor: Yes
• Digital Airspeed sensor: Yes

Firmware Support

• INAV Flight/BetaFlight
• Target: MATEKF722SE
• Arduplane support comming soon

Kit Contents

• 1x Matek F722 Wing Flight Controller
• 3x header Pin rows (no soldered on)

Manual

• Matek-F722-Wing-Manual

F722-WING VS F405/F411-WING

	F722-WING	F405-WING	F411-WING
MCU	216MHz STM32F722	168MHz STM32F405	100MHz STM32F411
IMU	MP6000	MP6000	MP6000
BARO	BMP280	BMP280	BMP280
OSD	AT7456E	AT7456E	AT7456E
BlackBox	MicroSD	MicroSD	/
Firmware	INAV BetaFlight	INAV ArduPilot	INAV BetaFlight
Dual Camera In	Yes	/	/
5V/9V Switcher	Yes	/	/
Current Sense	High precision 132A	104A	78A
Max.Voltage	36V(8S)	30V(6S)	30V(6S)
Motors	2	2	2
Servos	6	7	5
UART	5	6	2
Softserial	1	1	1
Uart Inversion	All	RX2	RX1
5V for FC	2A	2A	2A
9V for VTX	2A	2A	/
Vx for Servos	5A	5A	3A
LDO 3.3V	200mA	500mA	200mA
Size	54×36	56×36	41×28
Weight	25g	25g	12g

PDB

• Input voltage range: 9~36V (3~6S LiPo) w/TVS protection
• 2x ESC power pads
• Battery Voltage Sensor: 1:10 (Scale 1100)
• Current Senor: 132A, 3.3V ADC, Scale 250

BEC 5V output

• Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
• Continuous current: 2 Amps, Max.3A

BEC 9V /12V output

• Designed for Video Transmitter, Camera, Gimbal ect.
• Continuous current: 2 Amps, Max.3A
• 12V option with Jumper pad

BEC Vx output

• Designed for Servos
• Voltage adjustable, 5V Default, 6V or 7.2V via jumper
• Continuous current: 5 Amps, Max.6A
• Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)

BEC 3.3V output

• Designed for Baro / Compass module and Spektrum RX
• Linear Regulator
• Continuous current: 200mA

Physical

• Mounting: 30.5 x 30.5mm, 4mm with Grommets 3mm
• Dimensions: 54 x 36 x 13 mm
• Weight: 25g
