Matek System VTX-1G3SE-9 Transmitter – 1.2G/1.3GHz 9CH INTL 0.1mW/25mW/200mW/800mW FPV Transmitter For racing drone Goggles instead VTX-1G3-9

Matek System VTX-1G3SE-9 TransmitterSPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembled class

Technical parameters: Value 5

Size: As description

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: Radio Systems

Quantity: 1 pcs

Origin: Mainland China

Model Number: MATEKSYS VTX-1G3-9

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Matek System VTX-1G3SE-9 1.2G/1.3GHz 9CH INTL 0.1mW/25mW/200mW/800mW FPV Transmitter For racing drone Goggles instead VTX-1G3-9
Packing Included:1x 1.2/1.3G Video transmitter VTX-1G3SE-9(INTL version)1x Dipole antenna_SMA, center freq 1240MHzFeatures:9CH_INTL version (1080,1120,1160,1200,1240,1280,1320,1360,1258MHz), VTX-1G3SE-9RF power output: 0.1mw(0, pit mode), 25mw(1), 200mw(2), 800mw(3)CMS control via Tramp protocol variant for 1.3GButton control and LED indicatorsBuilt-in AGC microphone6-36V DC IN (2-8S LiPo)
SpecificationsBrand:Matek
Item Name:VTX-1G3SE-9 1.2G/1.3GHz Video transmitterPower Consumption: 40mA(0.1mw), 110mA(25mw), 150mA(200mw), 250mA(800mw) @12V INVideo format: NTSC or PALAudio Subcarrier: 6.5 MHz & 6.0MHz, onboard microphone on 6.5MHzRF Connector: SMAWeight: 9g ( w/o antanna)Size: board 36*21.5mm
Pads+ IN-: 6-36V DC input with reverse polarity protectionVID: Video inputG: Ground5V: onboard regulator output, Max. 1.5A load on this padA6.0: Audio 6.0MHz inputRX: CMS control via Tramp protocolTX & RX: UART for firmware update
SettingsPress button-A to select RF output levels, 0 (blue LED)= 0.1mw pitmode, 1=25mw. 2=200mw, 3=800mwPress and hold the button-B for 2 seconds to enter the frequency setting. Frequency LED blinksPress the button-B to select the frequency (only 1258 and 1280 can be selected on US 2CH version)When the LED blinks at new frequency, no RF output on this frequency.New frequency and output will be enabled if no button action within 3 seconds
CMS controlConnect RX to any spare UART-TX of flight controller, enable VTX(Tramp) protocol on corresponding UART.Copy and paste following command into CLI of BF4.1 or later releasevtxtable bands 2vtxtable channels 8vtxtable band 1 1G3_A A 1080 1120 1160 1200 1240 1280 1320 1360vtxtable band 2 1G3_B B 1080 1120 1160 1200 1258 1280 1320 1360vtxtable powerlevels 3vtxtable powervalues 25 200 800vtxtable powerlabels 25 200 800When CMS control is enabled, button control will be overridden.only 1258 and 1280 can be enabled via CMS control on 2CH version.INAV doesnt support 1.3G CMS control via Tamp protocol for now.

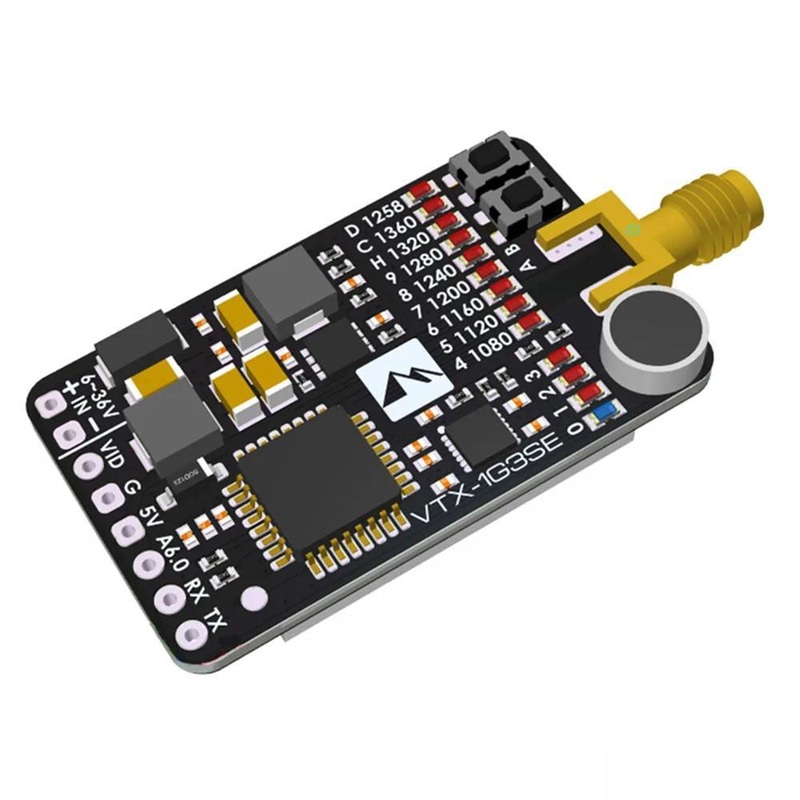

MATEKSYS 1.2/1.3GHz Video Transmitter VTX-1G3SE 9CH & 2CH INTL ver. (1O8OMHz – 1360MHz , 9CH) Built-in AGC microphone 6-36V DC IN PCB size: 36*21.5mm, 9g .
