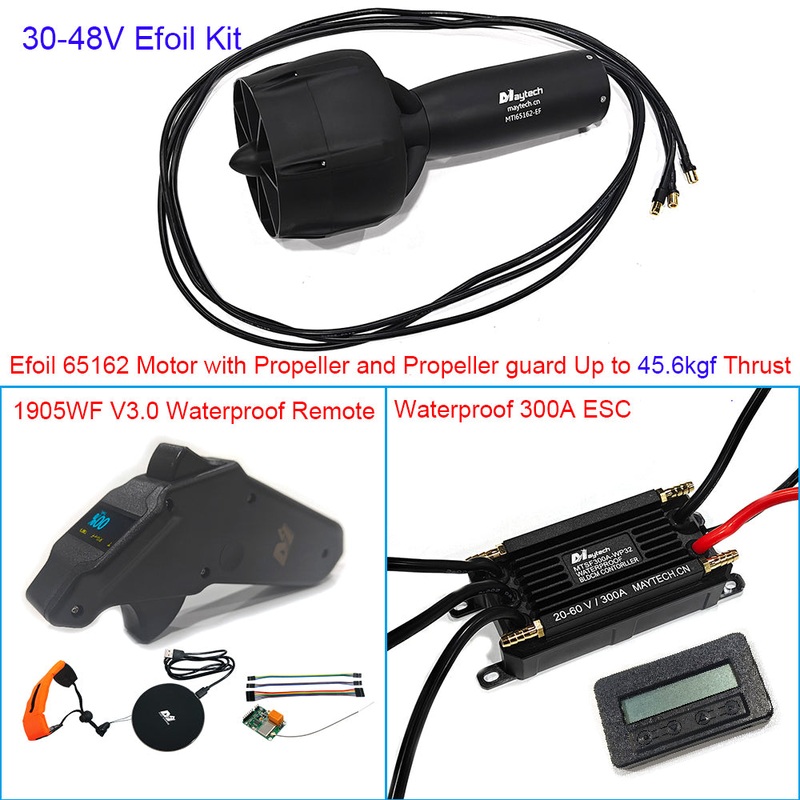

Maytech 30-48V Efoil Kit 65162 65161 Waterproof Motor With Propeller + 300A 32Bit ESC + 1905WF Remote + MTS2009AS Switch + 12V 30W Water Pump
Item1: MTED65 Efoil Waterproof Motor with Propeller and Propeller Guard
| Model No | MTED65 | Application | Efoil, Electric SUP, Electric Kayak, etc. |
| Motor KV | 103.6 | Motor | Maytech 65162 Inrunner motor |
| Size | 65x 161.5mm | Propeller | CNC 4-blade Aluminum Propeller with Oxidation |
| Max Lipo Cell | 30-48V (7-12S LipO) | Propeller guard | Plastic |
| Max Current | 114A | Weight | 3.45kg |
| Max Thrust | 45.6Kgf | Max Power | 5.5KW |
Item 2: 1pcsMaytech New 32Bit 300A ESC 60V or 75V Waterproof Electric Speed Controller for Eletric Surfboard Efoil Boat(New Updated 32Bit ESC)
Model No.:MTSF300A-WP32Input Voltage:6-14S Lipo (20-60V); In this kit, Max voltage is 48V.Waterproof Rank: IP68Cont Current: 300APeak Current (at 10S): 320AWith 5V BECWeight: 585gSize: 122*62*40mm (150*62*40mminlcuding mounting holes)Cable Guage: 8AWGMax ERPM: 100000Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.
32BIT Micropprocessor
Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature,
speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
Fully sealed, IP68 water-proof (water-proof version ESC)
8-layer 3oz PCB plate, 3.4mm, support high current
Compact size, high efficiency, low heat.
Only use geniune US and Japan imported electric components.
Over-heat, over-voltage, over-current, low voltage protection.
100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.Please download 32bit 300A ESC manual here.
Wiring for NEW version from 14th Nov, 2024:
| Item 3: 1PCS Maytech MTSKR1905WF New Updated version waterproof remote for efoil electric surfboard DIY skateboard longboard (Click for more remote details) | |||
| Model no | MTSKR1905WF updated version | Packing | cartons box |
| Function | wireless charging | Display screen | Yes |
| Accessory | receiver and charging pad | Signal type | PWM |
| FREE Accessory | Strip (color is random) | Esurf mode | with cruise control |
| Batt voltage display | 3-18S | Esk8 mode | with brake |
New remote updated functions:1. New version updates from April 2024: with 3 adjustable speed modes; with throttle lock function for safety; with Eco and Pro modes for different signal strength; compatible to Maytech new 32bit MTSF300A-WP32/MTSF300A-WP32-HV ESC to ready current/votlage/rpm datas, etc; add a page to display main battery voltage percentage; This version contains functions of old firmware versions V1.32.1 (or V1.31.1) and V2.32.2(or V2.32.1). etc.2. Display shows more:Besides remote battery and main battery voltage, it can show motor RPM; if use it with VESC controllers, it can show current, speed(esk8 mode), temperature.3. Signal:Remote and receiver signal strength is enhenced to avoid some signal interference nearby.4. Waterproof function is updated:Two layers of nanometer-coating are added to remote.5. Remote can wirelessly control two switches:Remote can control two switches, such as light, pump.6. Receiver supports double-souce powersupply:Receiver can accepts 5V/3.3V power .Item 4: MTS2009AS 300AAnti-spark switch
| Brand | Maytech | Model Number | MTS2009AS |
| Application | Electric Skateboard, Efoil, surfboard, boat, motorcycle, robotics, etc | Connector | Ring Terminal |
| Max Current | 300A | Voltage range | 20-85V |
| Max voltage | 85V (20S lipo) | Color | Black |
| Switch Type | Use NMOS to realize switching on/off Power positive | Size | about 97*56*25mm |
| Features | Switch comes with LED light indicator; Shutdown current less than 1uA; Suitable for load: three phase motor speed controller; Boot soft start; Automatic short circuit protection when boot; Over temperature protection (The switchmosfet PCBexceeds the rated value of110 for more than 20us), which is equivalent to overload protection; |
Application : waterproof remote control eletric surfboard hydrofoil surfboard esc with surfboard battery.
Notice:
Please disconnect MTS2009AS Anti-spark Switch When You Charge Your Battery!!
It will damage anti-spark switch if you charge battery through anti-spark switch output side!!
Item 5: MTWP30W+MTUBEC75VT12V Waterpump with UBEC
MTWP30WWater pump specification
Notice: The pump cannot work continuously for a long time. It is best to stop it for about an hour; Long working hours will affect the life of the pump.
Power : 30W 12V
Maximum Flow : 8L/min
Outlet : 6mm / 8mm / 10mm
Water Intake : 35mm
MTUBEC75VT12VDC-DC module specification:
Input: 18-75V DC
Output: 12V DC
