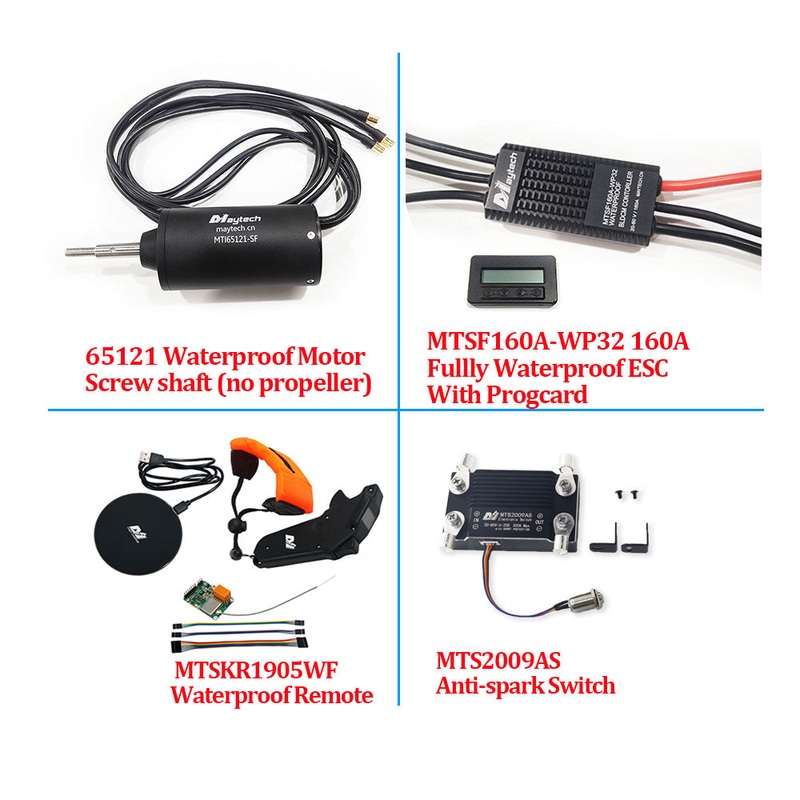

Maytech Efoil Kayak Assist Kit ( 65121 3.7KW Waterproof Motor + Waterproof 160A ESC+ V2 Remote ) With or Without Anti-spark switch
Stocks quantity is limited, please confirm order asap to get earlier order arrangement.
Item 1:Maytech 65121 130KV Waterproof Inrunner Motor For Efoil Elecitrc Boat Underwater ThrusterModel No.: MTI65121-130-SF
Brand: Maytech
KV: 130
Waterproof: IP68
Shaft: Screw shaft
Size:D65.5XL121.5
Construction (Slot/Pole): 18N6P
Max Power:3.7KW
Max Current: 100A
Input Voltage: 6-20S(22.2- 84V)
Max torque: 6N*M
Cable Length: 1.2m
Weight: 1.6kg
Connector: 8.0mm gold-plated male connector
Customize: Logo, cable length, connector, cover, shaft, etc., pls contact us
Item 2:1pcs Maytech New 32Bit 160A ESC Waterproof Speed Controller for Light Weight Efoil (Click for more ESC details)Model No.:MTSF160A-WP32Waterproof Rank: IP68Cont Current: 160APeak Current (at 10S): 180AInput Voltage: 6-14S Lipo (22.2V-58.8V)Without BECSize:92*46*23mmWith Progcard32 for programming the ESCSuitable for: MTI65162-120-SF Waterproof motor/MTI65121-130-SF Waterproof Motor or MTO6384-140-WPCWaterproof Motor and MTO6374-150-WPC/2 Waterproof motor. 32BIT Micropprocessor
Fully sealed, IP68 water-proof (water-proof version ESC)
8-layer 3oz PCB plate, 3.4mm, support high current
Compact size, high efficiency, low heat.
Only use geniune US and Japan imported electric components.
Low voltage protection.
100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.
Please download Manual Here for orders before Oct, 2024.
Please Download Manual Here for orders from 11th Oct, 2024.
Application: Efoil, electric surfboard, electric hydrofoil, underwater thruster, ROV, electric outboard, elcetric sup board, underwater robots, trolling mtor system, bow thruster, underwater jetpack, etc.
| Item 3:1PCS Maytech MTSKR1905WF New Updated version waterproof remote for efoil electric surfboard DIY skateboard longboard (Click for more remote details) | |||
| Model no | MTSKR1905WF updated version |
Packing | cartons box |
| Function | wireless charging | Display screen | Yes |
| Accessory | receiver and charging pad | Signal type | PWM |
| FREE Accessory | Strip (color is random) | Esurf mode | with cruise control |
| Batt voltage display | 3-18S | Esk8 mode | with brake |
New remote updated functions:1. New version updates from April 2024: with 3 adjustable speed modes; with throttle lock function for safety; with Eco and Pro modes for different signal strength; compatible to Maytech new 32bit MTSF300A-WP32/MTSF300A-WP32-HV ESC to ready current/votlage/rpm datas, etc; add a page to display main battery voltage percentage; This version contains functions of old firmware versions V1.32.1 (or V1.31.1) and V2.32.2(or V2.32.1). etc.2. Display shows more:Besides remote battery and main battery voltage, it can show motor RPM; if use it with VESC controllers, it can show current, speed(esk8 mode), temperature.3. Signal:Remote and receiver signal strength is enhenced to avoid some signal interference nearby.4. Waterproof function is updated:Two layers of nanometer-coating are added to remote.5. Remote can wirelessly control two switches:Remote can control two switches, such as light, pump.6. Receiver supports double-souce powersupply:Receiver can accepts 5V/3.3V power .
Item 4. 1pcsMaytech 300A 85V antispark switch battery cut off switch with short circuit protection for electric hydrofoil surfboard efoil (click for more switch details)
| Brand | Maytech | Model Number | MTS2009AS |
| Application | Electric Skateboard, Efoil, surfboard, boat, motorcycle, etc | Connector | Ring Terminal |
| Max Current | 300A | Brand | Maytech |
| Max voltage | 85V (20S lipo) | Color | Black |
| Switch Type | Use NMOS to realize switching on/off Power positive | Size | about 97*56*25mm |
| Features | Switch comes with LED light indicator; | ||
| Shutdown current less than 1uA; | |||
| Suitable for load: three phase motor speed controller; | |||
| Boot soft start; | |||
| Automatic short circuit protection when boot; | |||
| Automatic short circuit protection when work. |
Application : waterproof remote control eletric surfboard hydrofoil surfboard esc with surfboard battery.Because the switch is electric switch. It has a Step-down circuit inside to convert high voltage to low voltage to power itself. This circuit must have capacitors.When connect and disconnect the switch from battery, it will have small spark. But after connection, when turn on or off switch button, it won’t have spark. Please note this.
