Micro Motor Warehouse CL-0820-15 coreless brushed motor

This is the direct drive version of the 0820-15and 8cm wires.
Note: this isNOTthe Alias Plug’n’Play version of the 0820-15 motor.
For Alias Plug’n’Play motors, please click here.

The 0820-15 motor – a classic, yet one of Benedikt favourite motors to this day!
Watch this ancient video, this is how the micro motor story began:

compatible to:
– AlienWii flight controller (plug’n’play)
– Hubsan 107C, 107D
– all other micro quads with 8.5mm motor holders

performance data:

• speed: 15.000Kv
• operating voltage: 1.5-3.7V
• max. thrust: 40g (direct drive, Hubsan X4 propeller)
• 2.75Amax. load current at 3.7V (Hubsan X4 propeller)
• factory lifetime rating: 5-6 hours

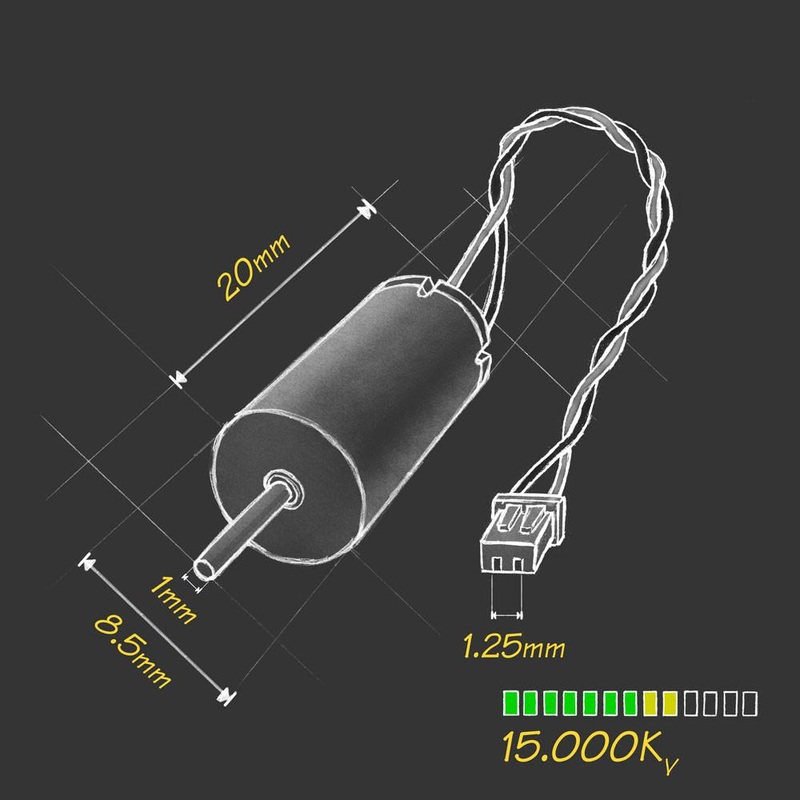

dimensions:

• can diameter: 8.5mm
• can length: 20mm
• shaft diameter: 1mm
• shaft length: 5mm
• weight: 4.9g

All motor packs contain equal amounts of clockwise and counter clockwise motors.To maximise performance and life span, dont run them in reverse!

Motor rotation and correct polarity is indicated by the wire color:
clockwise:red+, blue –
counter clockwise:white+, black –

Link to reviews and comparison to other micro motors on rcgroups:
1s micro/mini brushed quadcopter specifications and performance data
