Overview

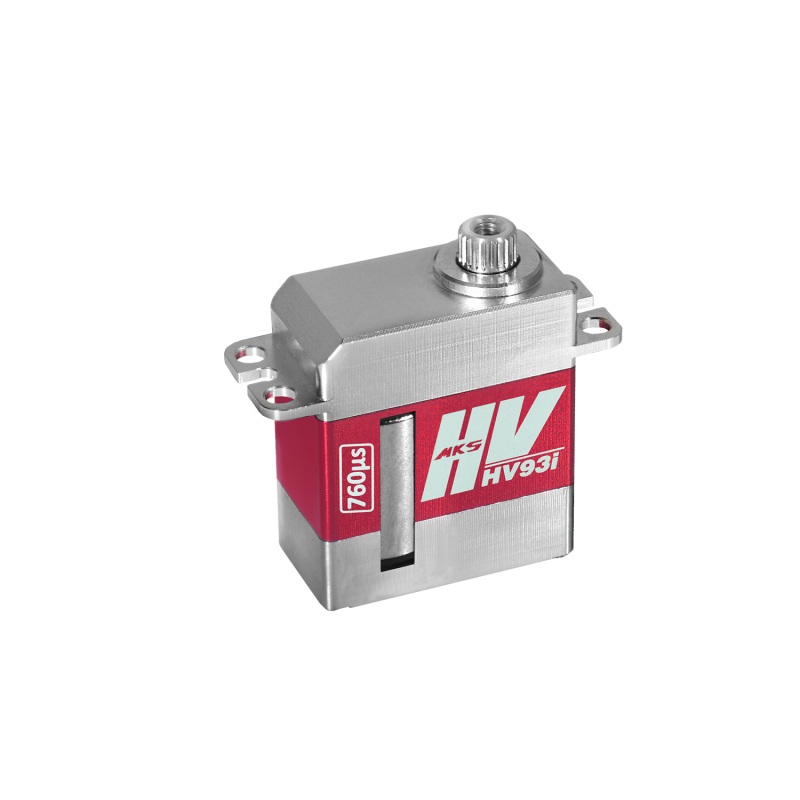

The MKS HV93i is an HV micro tail Servo Motor designed for gyro-equipped RC helicopter tail control. It supports high-voltage operation and provides fast response for tail holding performance.
Key Features
- HV working voltage: 6.0V ~ 8.4V DC Volt
- Coreless motor
- Metal alloy gear
- 2* ball bearing
- Working frequency: 760us / 560Hz
- Dead band: 0.0005 ms (Default)
Customer service: https://rcdrone.top/ or [email protected]
Specifications
| Stall Torque (kg-cm) | 1.8 (6.0V) / 2.3 (7.4V) / 2.6 (8.2V) |
| Stall Torque (oz-in) | 25 (6.0V) / 31.9 (7.4V) / 36.1 (8.2V) |
| No-load Speed | 0.043 s (6.0V) / 0.035 s (7.4V) / 0.031 s (8.2V) |
| Stall Current | 2.4A (6.0V) / 2.9A (7.4V) / 3.2A (8.2V) |
| Working Voltage | 6.0V ~ 8.4V DC Volt |
| Working Frequency | 760us / 560Hz |
| Dead Band | 0.0005 ms (Default) |
| Bearing | 2* Ball Bearing |
| Gear | Metal Alloy Gear |
| Motor | Coreless Motor |
| Weight | 19.87 g (0.7 oz) |
| Dimension | 23 x 12 x 27.25 mm |
Compatible Gyros (Recommended)
Spartan DS760, Spartan Quark, Futaba GY611, GY601, GY520, ALIGN GP700, GP750, Mikado V-Bar Tail, CSM SL720, Curtis Youngblood Mini-G, Solid G, Thunder Tiger TG-7000, BeastX Mircobeast
Applications
- RC helicopter tail rotor control with compatible gyro systems
