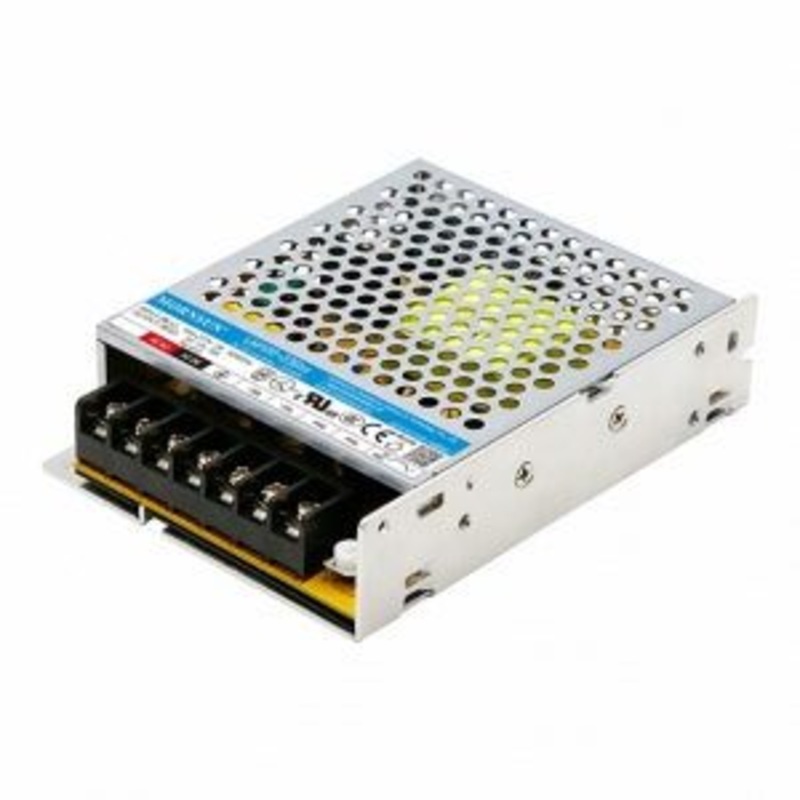

Mornsun LM100-23B48 AC/DC 100W Enclosed Switching Power Supply

Mornsun LM100-23B48 AC/DC 100W Enclosed Switching Power Supply

The LM100-23B48 is a 110.4 watt, 48 volt AC/DC power supply from Mornsun. It is a closed-frame, convection-cooled unit with a universal input voltage range of 85 to 305 VAC or 120 to 430 VDC. The output voltage is regulated to within +/-0.5% and the output current is limited to 2.3 amps. The LM100-23B48 features a number of safety protections, including overvoltage, undervoltage, overcurrent, and overtemperature protection. It is also RoHS compliant and has a UL safety listing.

Features:

• Closed-frame, convection-cooled design
• Universal input voltage range of 85 to 305 VAC or 120 to 430 VDC
• 110.4 watt output power
• 48 volt output voltage
• +/-0.5% output voltage regulation
• 2.3 amp output current limit
• Overvoltage, undervoltage, overcurrent, and overtemperature protection
• RoHS compliant
• UL safety listing

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company’s corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed intothe final equipment. All EMC tests should be confirmed with the final equipment
