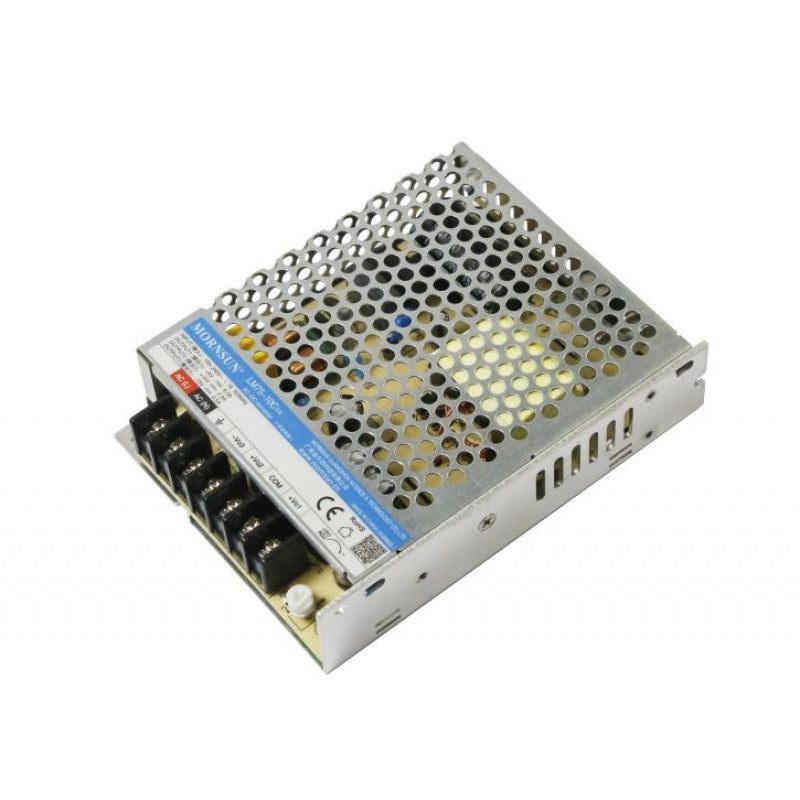

Mornsun LM75-10C051212-28 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-10C051212-28 AC/DC 75W Enclosed Switching Power Supply

The LM75-10C051212-28 is a power converter with three output versions that can independently supply three different loads in a system. It can be used in harsh environments with a temperature range of -30 to 70 degrees Celsius, and does not require a fan for cooling. The converter meets the requirements of IEC61000, CISPR32/EN55032, class B, and IEC/EN/UL62368, EN60335, GB4943 safety standards. It also features a variety of protection features and offers a high-performance to low-cost ratio. This makes it a good choice for a variety of industries, such as industrial control equipment, instrumentation, and smart home and building equipment.

check out :Mornsun LM35-10C051212-10 AC/DC 35W Enclosed Switching Power Supply

Features

• Three output versions
• Independent load supply
• Wide temperature range
• No fan required
• Meets safety standards
• Variety of protection features
• High-performance to low-cost ratio

This makes it a versatile and reliable power solution for a variety of applications.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company’s corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed intothe final equipment. All EMC tests should be confirmed with the final equipment
