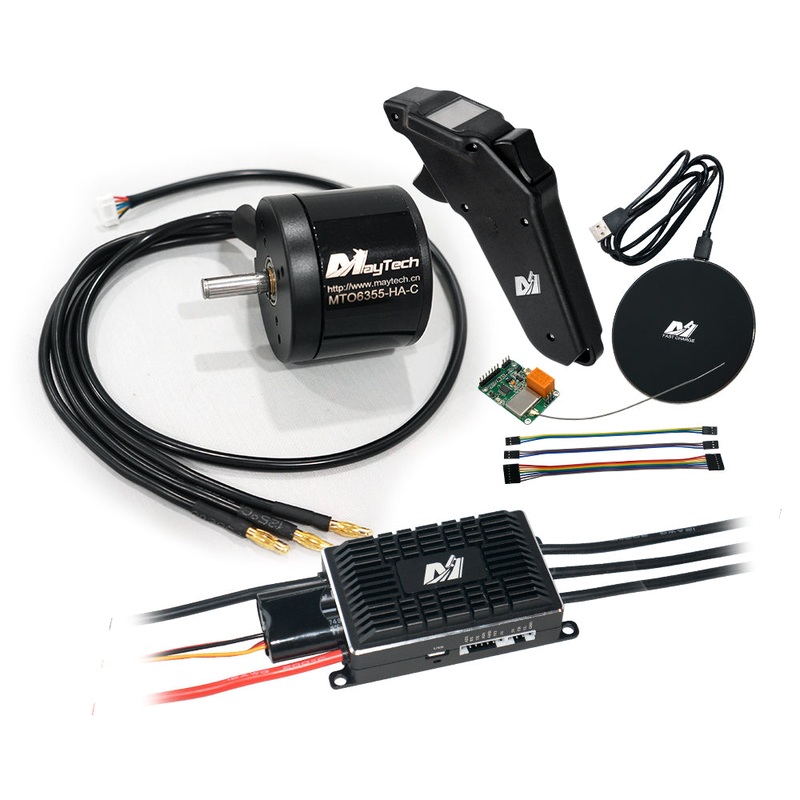

(Motor+ESC+Remote) Offroad electric skateboard kit 100A VESC based Speed Controller and Brushless Black Sealed Motor (BATTLE-HARDENED) and Remote
Price includes 1pcs ESC and 1pcs motor
1.Specifications of VESC100A 100A ESC based on VESC speed controller:
|
Application |
electric skateboard longboard fighting robots combat robots |
|
BEC |
5V BEC |
|
Lipo |
3-12Cells |
|
Voltage |
8V-60V |
|
Hardware version |
based on 4.12 |
|
Firmware version |
3.40 |
|
Cont. Current |
100A |
|
Burst Current |
280A |
|
Capacitors |
With high quality aluminum case, better heat dissipation |
|
Case Size |
71.5mm(L)x45.8mm(W)x18mm(H) |
|
Power wire |
Silicon wire |
|
Accessory |
USB programming cable |
Features:
With 4.0mm golden connectors for motors, without connector for battery.
With high quality aluminum case, better heat dissipation;
Dustproof and splashproof;
Compatible with sensor or sensorless motor;
Sensored or Sensorless operation;
Great startup torque with sensorless motors;
Softswitching to reduce the losses in power electronic switches;
Separation of low power electronics from the high power electronics, make it more reliable.
2.Motor specifications
First Generation Maytech sealed cover HALL SENSOR Motor
|
Model No. |
MTO6355-170-HA-C |
MTO6365-170-HA-C |
MTO6374-170-HA-C |
|
KV |
170 |
170 |
170 |
|
Idle Current |
1.0A |
0.8A |
0.8A |
|
Max. Current |
65A |
65A |
65A |
|
Input Volt |
2-12s Lipo |
2-12s Lipo |
2-12s Lipo |
|
Max. Output Watt |
3510W |
3520W |
3550W |
|
Max. Pull |
12000g |
9700g |
13000g |
|
Rated Current |
55A |
60A |
60A |
|
Motor Weight |
605g |
760g |
830g |
|
Shaft |
8mm |
8mm |
8mm |
|
Output shaft length |
26mm |
26mm |
26mm |
|
Resistance |
0.0441 |
0.0402 |
0.0402 |
Second Generation Maytech sealed cover HALL SENSOR Motor
|
Model No. |
MTO6355-170-HA-C2 |
MTO6365-170-HA-C2 |
MTO6374-170-HA-C2 |
|
KV |
170 |
170 |
170 |
|
Idle Current |
1.0A |
0.8A |
0.8A |
|
Max. Current |
65A |
65A |
65A |
|
Input Volt |
2-12s Lipo |
2-12s Lipo |
2-12s Lipo |
|
Max. Output Watt |
3510W |
3520W |
3550W |
|
Max. Pull |
12000g |
9700g |
13000g |
|
Rated Current |
55A |
60A |
60A |
|
Motor Weight |
610g |
765g |
860g |
|
Shaft |
10mm |
10mm |
10mm |
|
Output shaft length |
34mm |
34mm |
34mm |
|
Resistance |
0.0441 |
0.0402 |
0.0402 |
Third Generation Maytech sealed cover HALL SENSOR Motorwith extra big bearing (more durable)
|
Model No. |
MTO6880-190-HA-C3 |
MTO6396-190-HA-C3 |
|
KV |
190 |
190 |
|
Idle Current |
0.8A |
2A |
|
Max. Current |
65A |
80A |
|
Input Volt |
2-12S Lipo |
2-12S Lipo |
|
Max. Output Watt |
3550W |
4550W |
|
Max. Pull |
13000g |
13500g |
|
Rated Current |
60A |
65A |
|
Motor Weight |
1200g |
1280g |
|
Shaft |
10mm |
10mm |
|
Output shaft length |
45.5mm |
34mm |
|
Resistance |
0.0402 |
0.0200 |
3.Specification of MTSKR20WFV2 waterproof Remote controller with screen and receiver:
| Model No. | MTSKR2005WF (MTSKR20WFV2) | Waterproof Rank | IP66 |
| Control Mode | New Esk8 | Application | Only for Electric skateboard, elongboard, mountainboard |
| Speed Display | Yes | Travel Mileage | Yes |
| Throttle and brake Display | 100% | VESC Control Mode | Duty Cycle/ Current Mode |
| Speed Mode |
3 speed modes, each mode can adjust speed from 1%-100% throttle |
Accessories | Wireless charging pad; receiver; 3pcs dupont cable |
| Charger |
QC 2.0 wireless |
Wireless Frequency | 2.4GHz wireless with 40 channels |
| Display Screen |
OLED yellow & blue screen |
Triggers | 2x high senstive triggers |
| Throttle and Brake Signal Output Range |
1.5ms-2ms for throttle; 1.5ms-1ms for brake |
Telemeter Data by Receiver | Motor RPM; main battery voltage |
| Voltage Display |
Remote & main battery voltage level (lithium iron; lithium ion battery optional) |
Telemeter Data by VESC | ESC voltage/ current/ temp; Motor temp/ RPM |
| Compatible ESCs |
VESCTOOL/ Focbox/ Other PWM ESCs that has same signal output range with the remote |
Receiver Built-in Switch for Esk8 Light / Esurf Water Pump |
1x 30V 3A mechanical relay switch; 1x 20V 2A transistor electronic switch |
