| Parameter | Specification |
|---|---|
| Product Name | NEMA 34 Hybrid Stepper Motor (8686118 mm) |
| Motor Type | 2-Phase Bipolar Hybrid Stepper Motor |
| Frame Size | NEMA 34 (86 86 mm) |
| Step Angle | 1.8 per step |
| Rated Current / Phase | 6.0 A |
| Phase Resistance | ~0.8 |
| Phase Inductance | ~8 mH |
| Holding Torque | ~8.5 Nm |
| Rotor Inertia | ~8500 gcm |
| Number of Leads | 4 wires (A+, A, B+, B) |
| Shaft Type | Keyed shaft |
| Shaft Diameter | ~14 mm |
| Shaft Length | ~32 mm |
| Body Length | ~118 mm |
| Lead Wire Length | ~400 mm |
| Weight | ~3.8 kg |
| Insulation Class | Class B |
| Operating Temperature | 20 C to +50 C |
| Typical Applications | CNC machinery, automation, robotics, motion control |
Sale!

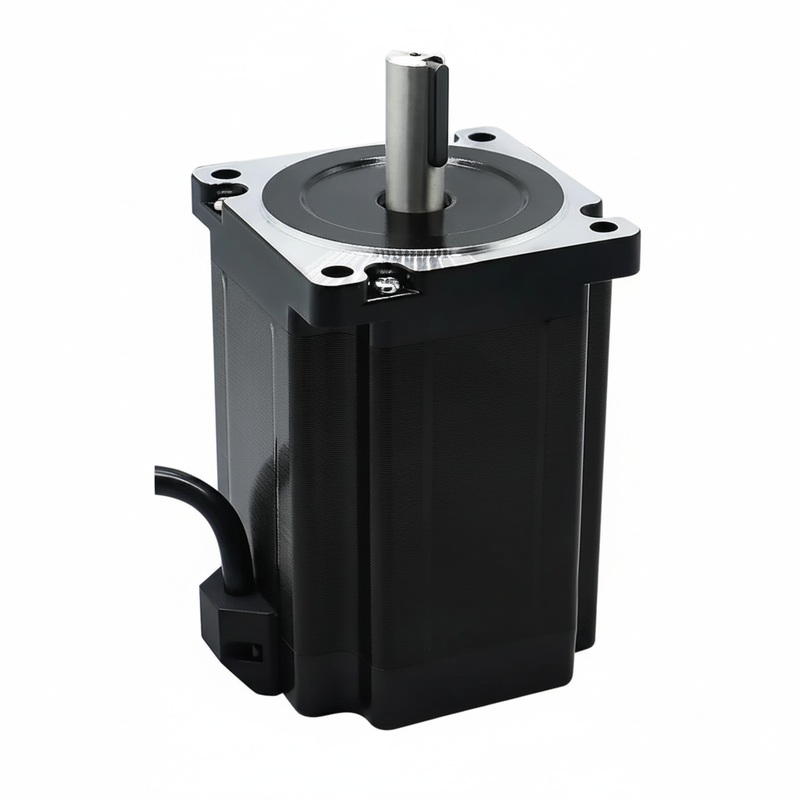

NEMA34 85Kgcm STEPPER MOTOR With Key-Shaft Waterproof Motor
Original price was: $49.99.$29.99Current price is: $29.99.
