Overview

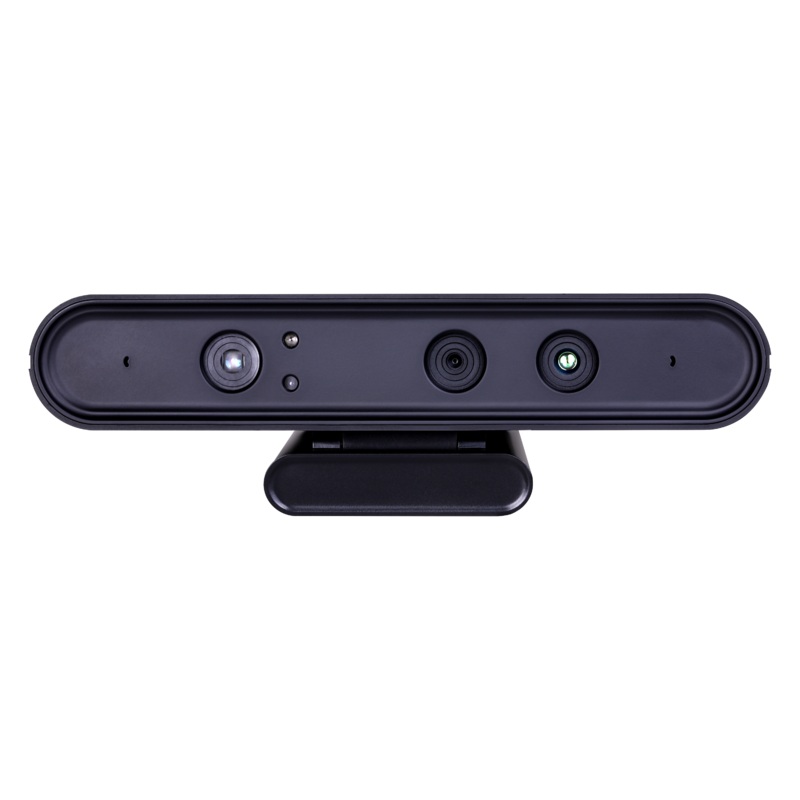

Orbbec Astra S is a short-range structured light 3D camera designed for reliable indoor depth sensing with single-cable USB 2.0 power and connectivity. It delivers high-quality depth at 640X480@30fps within a 0.42 m range and features a depth Field of View of 58.4H x 45.5V. The camera integrates an Orbbec-designed ASIC for high-quality depth processing and works with the Orbbec OpenNI SDK for accurate, dependable data. As part of the Astra series (Astra long-range, Astra S short-range, and Astra Pro Plus high-resolution RGB), the lineup offers developers flexibility: series-level depth output spans 0.48 m depending on camera model, and Astra Pro Plus supports up to 30 fps at 1280X720 RGB.
Key Features
- Field of View at 58.4 Horizontal and 45.5 Vertical
- High quality depth data output from 0.4-8m (depending on camera model)
- Astra S depth range: *0.4-2m
- Up to 30 fps at 640X480 for depth
- Up to 30 fps at 1280X720 RGB resolution (Astra Pro Plus)
- Support USB 2.0 power and data operation
- Structured Light depth technology (850nm wavelength)
- Spatial precision 3mm @ 1m
- Orbbec OpenNI SDK for in-door operation
- Orbbec ASIC for high-quality depth processing
Specifications
| Operating Environment | 10 – 40; Indoor; 10%-85%RH |
| Depth Technology | Structured Light |
| Depth Range | *0.4-2m |
| Wavelength | 850nm |
| Processor | Orbbec ASIC |
| IMU | N/A |
| SDK | Orbbec OpenNI SDK |
| Spatial Precision | 3mm @ 1m |
| Depth FoV | 58.4H x 45.5V |
| Depth Resolution and Frame Rate | 640X480@30fps |
| RGB FoV | H63.1 V49.4 |
| RGB Resolution and Frame Rate | 640X480@30fps |
| Power Consumption | Average <2.4W |
| Connector | USB 2.0 Type-A |
| Weight | 310 5g |
| Dimensions (W*H*D) | 165mm x 48mm x 40mm |
| Installation | Bottom |
Whats Included
- Astra S 3D Camera
