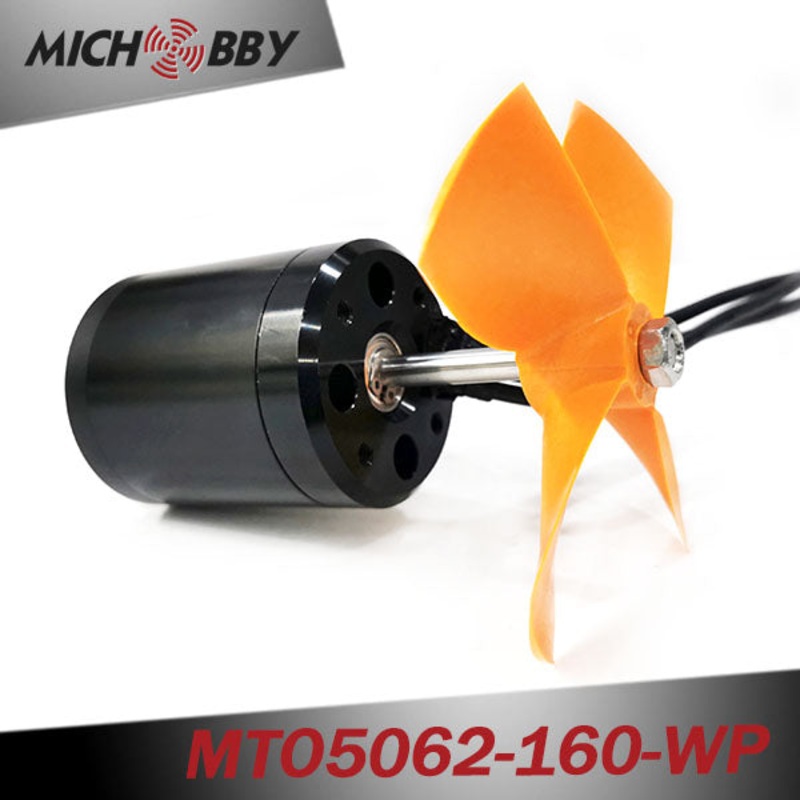

Outrunner fully waterproof bldc motor 5062 160KV with propeller for Electric Boat
| Model No | MTO5062-160-WP with propellerMax power 750W | Application | electric boat, electric surfboard, efoil, e-SUP, etc. |
| KV | 160,KV can be customized | Shaft | 6mm with screws |
| Size | 50x 62mm | Motor type | Outrunner motor |
| Max Lipo Cell | 24V/ 2-6s Lipo | Motor Weight | 390g |
| Max Current | 30A | Idle Current @8.4Vwithout Loading: | 0.35A |
| Waterproof | Fully water-proof IP68 | Sensor | without hall sensor |
Advantages:
- Applying high thermal conductive material into the vacuum glue sealing coil for waterproof treatment, which can protect the copper wire and silicon steel sheet from seawater corrosion effectively.
- Adopting special stainless steel bearing and lubricating grease. Salt spray test can reach 144 hours.
- The upper and lower positions of the magnets have the rings to lock the magnets and prevent the magnet from falling off.
- The motor shaft is made of 316 stainless steel, which can work in seawater for a long time.
- The solder joints of the motor leads are potted inside the motor, which can meet the 200m suppression test.
Drawing:
Reviews
There are no reviews yet.
