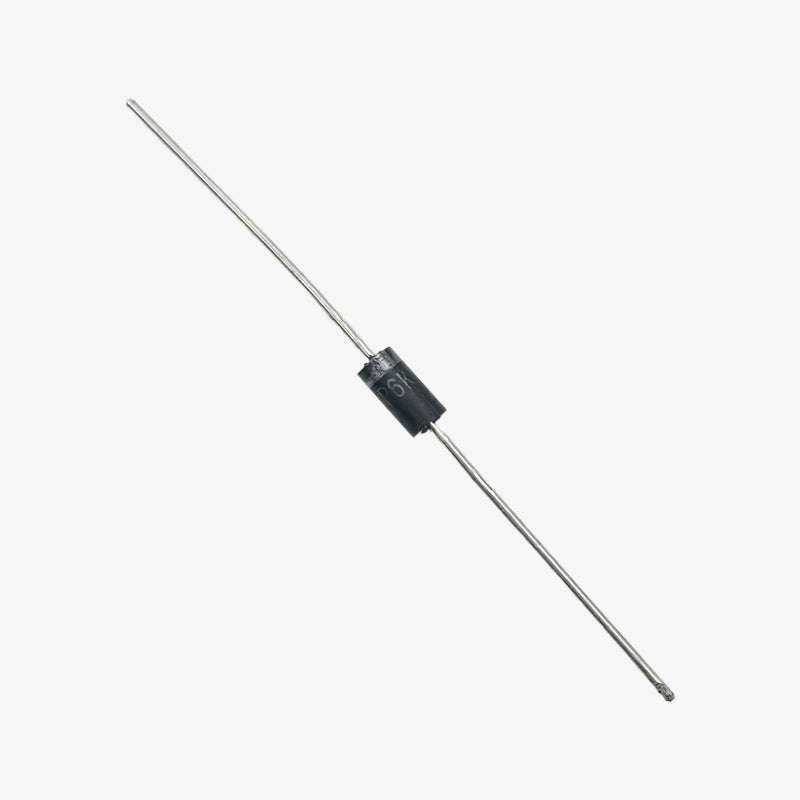

P6KE540A Transient Voltage Suppressor Diode – DO-15

The P6KE540A Transient Voltage Suppressor Diode – DO-15 is designed to protect sensitive electronic equipment from voltage surges caused by lightning, inductive switching, and other transient events. With its robust glass-passivated junction and rapid clamping action, it ensures reliable protection for industrial, automotive, and telecommunication systems. Ideal for safeguarding ICs, MOSFETs, and signal lines in high-voltage applications.

CLICK HERE FOR DATASHEET

Features:

1. 600 W peak pulse power capability with 10/1000 s waveform
2. Glass passivated chip junction for superior stability
3. Fast response time and excellent clamping performance
4. Low incremental surge resistance for consistent operation
5. Halogen-free, RoHS compliant, and AEC-Q101 qualified

Specifications:

• Reverse Stand-off Voltage (VR): 459.0 V
• Breakdown Voltage (VBR): 513.0 V to 567.0 V
• Test Current (IT): 1 mA
• Maximum Clamping Voltage (VC): 740.0 V
• Maximum Peak Pulse Current (Ipp): 0.81 A
• Maximum Reverse Leakage (IR): 1 A
• Peak Pulse Power Dissipation (PPPM): 600 W
• Operating Junction Temperature (TJ): -55C to +175C
• Storage Temperature (TSTG): -55C to +175C

Package Includes:

1 P6KE540A Transient Voltage Suppressor Diode – DO-15
