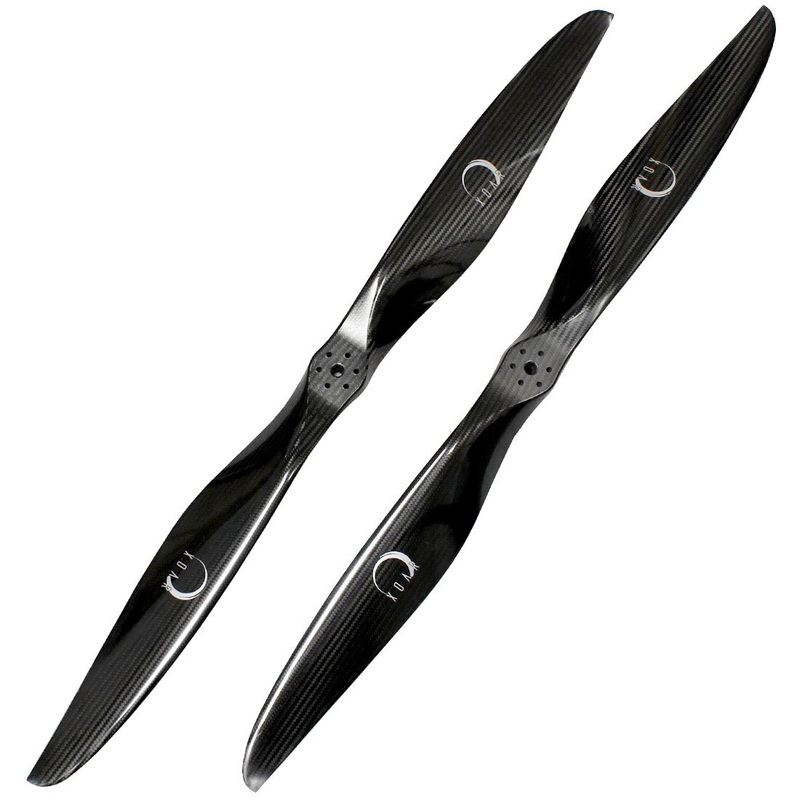

PJP-T-L 50×10 Precision Pair Carbon Fiber Propellers for Multicopter

XOAR Carbon Fiber Precision Pair Propellers for UAVs, Multicopters, and Drones with great efficiency and accuracy.

DESCRIPTION

DESIGN

Genuine Xoar Props’soriginally designedblade profiles optimizes your multicopter flying experience.

PREMIUM MATERIAL

XOAR Carbon Fiber Precision Pairs are made of premium Carbon Fiber fabric and a special resin system that offers ultra light weight to maximize efficiency and torque for Aerial Applications with low Kv brushless motors such as Aerial Cinematography, Security, Agriculture, Survey & Mapping, Research & Rescue, Mining, Traffic Monitoring and more. XOAR Propellers are the perfect enhancement for the Multicopters.

ADVANCED DESIGN AND CRAFTSMANSHIP

XOAR PJP-T-L Carbon Fiber Precision Pair Quadcopter Propellers are designed and engineered with a unique blade shape and thin hub. The pairs have the same pitch and same weight for accurate, responsive, and stable performance. The maximum tolerance of weight difference for each pair is 15 grams; this guarantees consistent performance – the same torque is produced by the motors on each pair of opposite arms.

PERFORMANCE

XOAR’s Carbon Fiber Quadcopter Propellers are constructed to offer maximum strength and endurance by its unique structural design. The superior strength reduces the flexing of the tips in Drone flight which greatly lowers noise and vibration to yield a responsive, smooth, and quieter flight.

INSTALLATION

1. Before tightening the screws, please confirm the propellers are rotating in the same direction as the brushless motors before flight. (The leading edge is facing the same direction of the motors rotation)
2. Please check for loose caps and tighten them before each flight
3. Do not screw right on the propeller. Do not over-tighten screws. Use washers.
4. Please Note: A final balance check is suggested before flight due to external factors such as temperature, and handling during transit may vary the balance of the propeller.

What’s included

• 1 x Xoar PJP-T-L 50×10 Carbon Fiber Precision Pair Propeller CW
• 1 x Xoar PJP-T-L 50×10 Carbon Fiber Precision Pair Propeller CCW

Do not over-tighten cap. Specifications

• Diameter: 50″
• Pitch: 10
• Average Net Weight: 830g 20 g Per Prop
• Bore Size: 10 mm
• Side Holes Diameter: M5 x 6
• Distance Between Centers of Side holes:45 mm
• Hub Dimensions:65 x 30 mm
• Type: CW/CCW Propeller
• Suggested Max. RPM: 3500
• Life Span: 200 hours
