| Parameter | Specification |
|---|---|
| Model | PX86 Series |
| Gearbox Type | Planetary Gearbox |
| Frame Size | 86 86 mm |
| Compatible Motor | NEMA 34 Stepper Motor |
| Gear Ratio Options | 10:1 |
| Rated Torque | 50 Nm |
| Maximum Torque | 80 Nm |
| Efficiency | 90% |
| Backlash | 30 arcmin |
| Rated Input Speed | 3000 rpm |
| Protection Level | IP65 |
| Average Life Span | 20,000 hours |
| Noise Level | 60 dB / 65 dB / 75 dB |
| Gearbox Length | 95 mm |
| Output Shaft Diameter | 16 mm |
| Output Shaft Length | 35 mm |
| Key Length | 30 mm |
| Input Shaft Diameter | 16 mm Key Shaft Type |
| Weight | 2.15 kg |
| Installation Method | Flange Mount |
Sale!

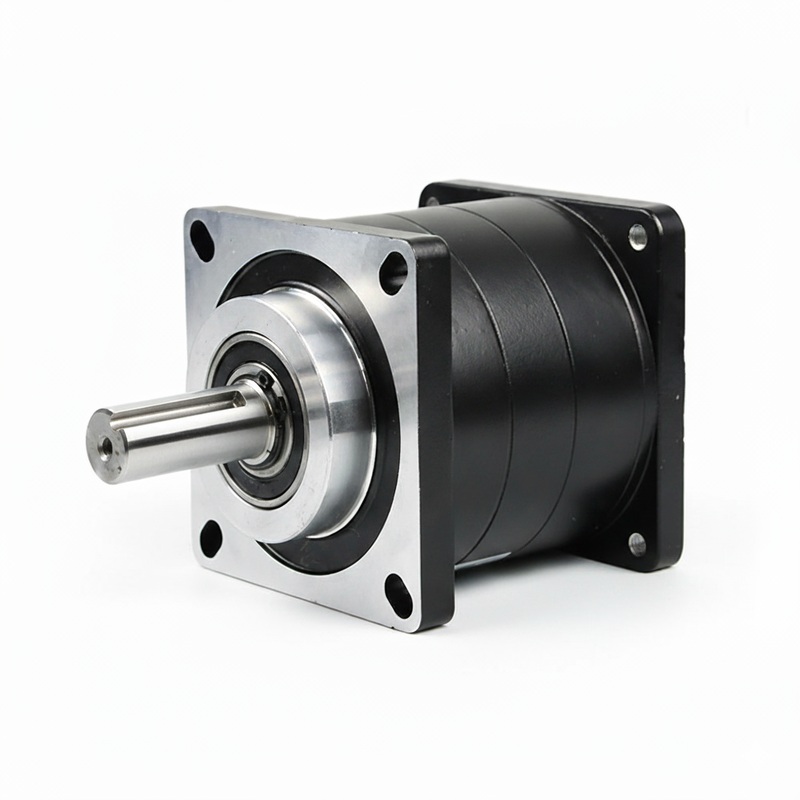

Planetary Gear Speed Reducer for NEMA34 (86mm) with 1:10 gear ratio
Original price was: $64.99.$32.50Current price is: $32.50.
Reviews
There are no reviews yet.
