Description

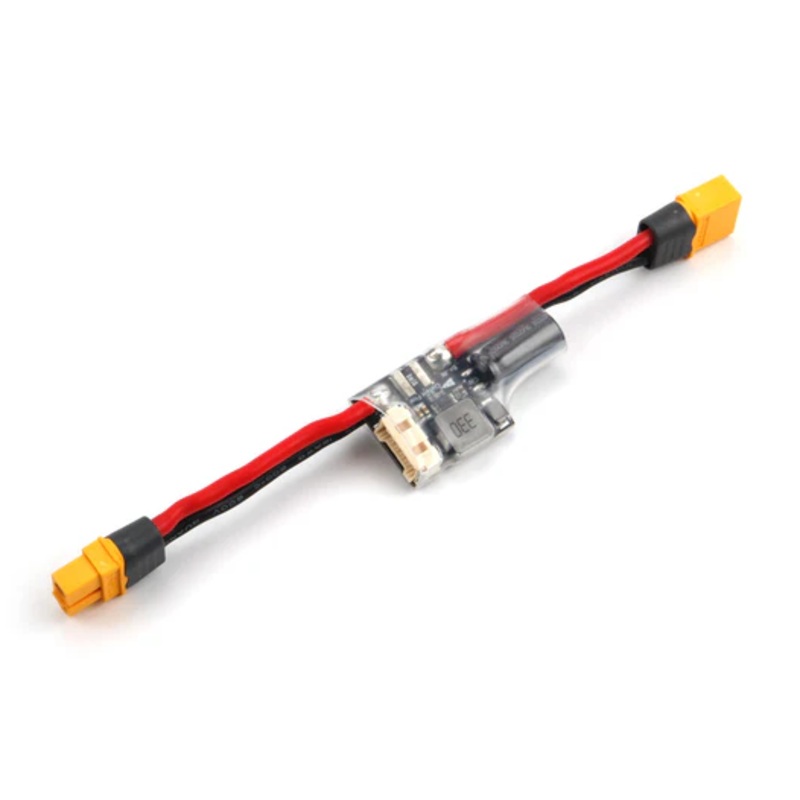

PM02D provides regulated power supply for your Pixhawk 5X & 6X from thebattery,as well as current consumption and battery voltage measurements, all through a 6pin cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from LiPo batteries up to 12S (HV). The Power Module comes completely assembled with XT60 connectors, wrapped in shrink tubing for physical damage protection.
It is not designed to power servos, please use your aircraft’s ESC/BEC for that. The Molex 2.00mm pitch CLIK-Mate Wire-to-Board connector is rated for 3.0A current per contact.
Specification
- Input voltage
- LV: 2S-6S (Discontinued)
- HV: 2S-12S
- PCB Cont.Current Rating: 60A
- PCB BurstCurrent Rating: 100A (<60 Sec)
- Max current sensing:
- LV: 164A(Discontinued)
- HV:327A
- Voltage and current monitor with I2C compatible interface
- Outputs 5.2V and 3A max
- Weight: 20g
Current Rating:
The PM02D comes with XT60 plugs with 14 AWG silicone wiresrated for 30A continuous current and 60A burst current (<1 minute). If a higher current is needed, the plug type and wire size should be changed accordingly. You can refer tothis chartas reference.
PIN MAP:
Setup:
If you are using thePM02D HV version, you must setSENS_EN_INA228to enable.
Full setup guide can be foundhere.
Package Includes
1x PM02D Power Module1x 6pin 2.00mm pitch cable
