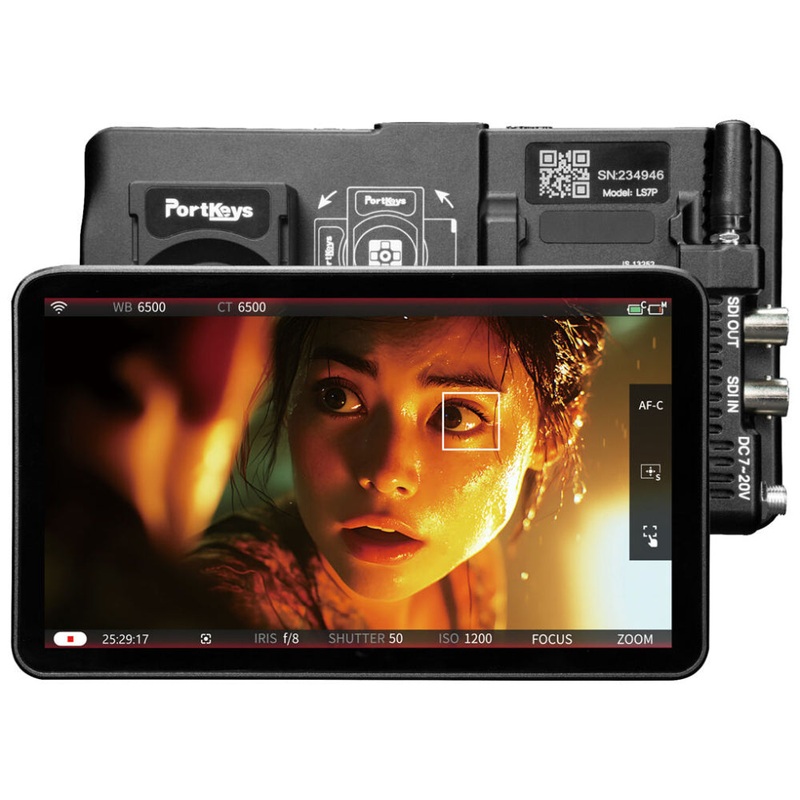

Portkeys LS7P 7″ 3G-SDI/4K HDMI High Brightness Monitor with Wireless Camera Control
Preview and control video on multiple cameras with the 7″ HDMI/SDI High-Bright Monitor with Wireless Camera Control from PORTKEYS. This versatile touchscreen monitor provides up to DCI 4K30 input via HDMI, 1080p input via 3G-SDI, and it can also output to additional displays via HDMI and SDI. You can also wirelessly monitor and control up to four cameras simultaneously using the newest Movnorm OS interface and Wi-Fi or Bluetooth.
High-Quality 4K Monitoring
Monitor up to DCI 4K30 video on the 1920 x 1080 resolution LCD screen, which provides a 16:9 aspect ratio, a 1000:1 contrast ratio, and a 1000 cd/m brightness for easy viewing outdoors as well as inside. The LCD provides a 160 viewing angle, enabling you to see an image without being directly in front of the monitor.
Multi-Camera Control
Control basic functions on a variety of cameras using wired or wireless connectivity. The monitor supports Wi-Fi and Bluetooth connections that make it easy to connect to compatible cameras. You can also connect to up to four cameras simultaneously, choosing each one from the monitor interface. Controls include touch focus, start/stop, and more.
3D LUTs
Apply 3D LUTs on the fly and on the loop outputs to view your footage on a larger external display. You can load custom LUTs via the USB-A input via a flash drive and store them on the monitor.
Professional Built-In Imaging Tools
The LS7P monitor features a variety of image-evaluating tools, including exposure tools such as peaking, zebra, and false colour; waveform tools such as luma, RGB, and audio meters; freeze frame; monitoring tools such as crosshair, grids, and guides; colour adjustment tools such as contrast, sharpness, tint, and chroma; and image ratio adjustments such as anamorphic de-squeeze, rectangle crop, and preset lens ratios.
Quick Mount
On the back of the monitor, there is a flex mount that features an L-series dummy battery that allows you to quickly mount a video transmitter or receiver that features an L-series mount. The battery plate on the monitor can provide power to the external accessory through the mount.
Power Options
The monitor is powered using a Sony L-series-type battery or via the locking DC power input using a separately available power supply.
Connections
The monitor features HDMI input and output, 3G-SDI input and output, USB-A input for 3D LUTs, and a 3.5mm audio output for monitor audio via headphones or a speaker.
Physical Design
The chassis is made from durable, lightweight aluminium to withstand any environment. Customisable control buttons located on top of the monitor allow you to assign often-used controls. There are 1/4″-20 threads on the top, side, and bottom for mounting onto arms, cameras, and rigs.
Key Features:
7″ 1920 x 1080 Resolution Display
Supports DCI 4K30 via HDMI
1080p Input via 3G-SDI
Wireless Control for Cameras
1000 cd/m Brightness and Contrast
Built-in Imaging Tools and LUTs
HDMI and SDI Loop Output
Headphone Jack and Top Buttons
Powered by Battery or DC Input
What’s in the Box:
Portkeys LS7P 7″ 3G-SDI/4K HDMI High Brightness Monitor with Wireless Camera Control
Safety Box
2.5 GHz Mini Antenna
Mini-USB Flash Drive
Screen Wipe
D-tap to Locking DC Power Cable
Screen Protector
