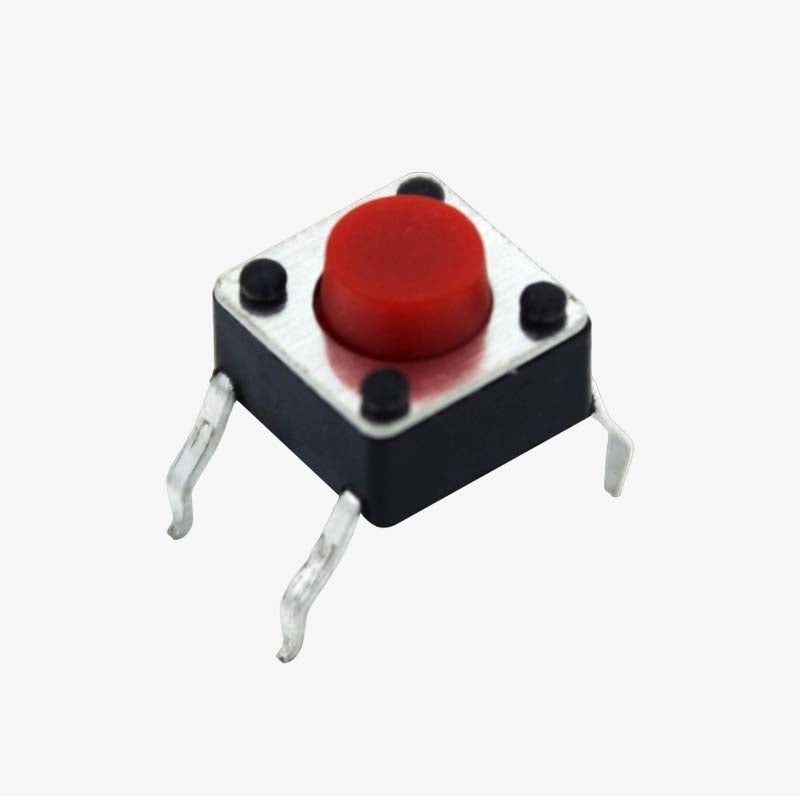

Push Button (4-Pin Tactile Micro Switch)

This is the most commonly used push button having small size and comes in 4 pins. It is in ON while pushed operation and bounces back to OFF on released. By default the circuit is open and when pushed the circuit gets completed.

Specifications:

• Type: normally open
• Rated load: DC 12V 50mA
• Contact resistance: m0.03 Ohm
• Insulation resistance: 100M Ohm
• Temperature: -30 to +70 degree Celsius
• Withstand voltage: AC 250V

Features:

• Prevent flux rise by the insert-molded terminal
• Snap-in mount terminal
• Contact Bounce: MAX 5mS
• Crisp clicking by tactile feedback

Package Includes:

1 xPush Button (4-Pin Tactile Micro Switch)
