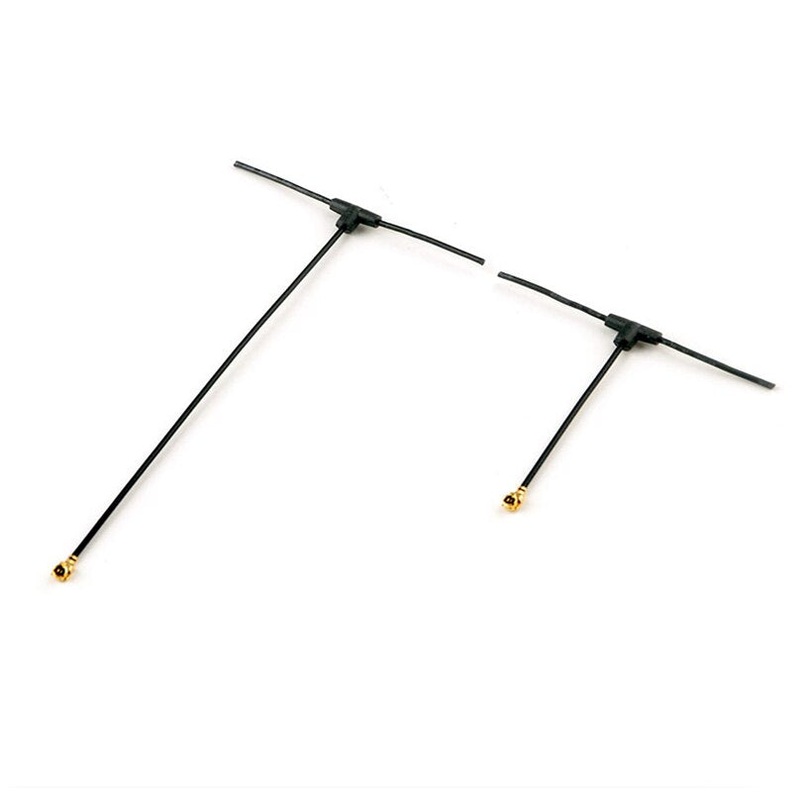

QWinOut 2.4g omnidirectional antenna 40mm / 90mm for ELRS EP1 RX IPEX/IPX/U.FL compatible with TBS Tracer 40mm

Frequency (MHz)2400.0
Efficiency (dBi)-0.89
Gain (dBi)2.23
Efficiency (%)81.46
Directivity (dB)5.12
Peak Gain Position (Theta)180.00
Peak Gain Position (Phi)330.00
Efficiency ThetaPol (%)20.90
Efficiency PhiPol (%)60.56
Upper Hem. Efficiency (%)39.93
Lower Hem. Efficiency (%)41.54
Connector IPEX/IPX/U.FL
Antenna width 52mm

Antenna length 40mm/90mm(optional)
