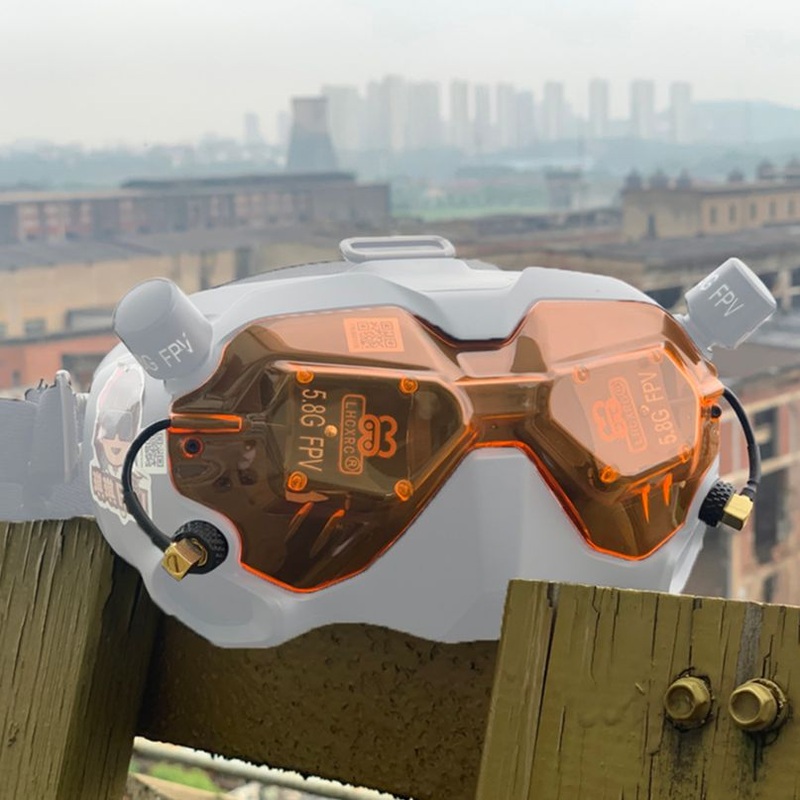

LHCXRC HD-02 5.8GHz 8.4dBi Patch Visor with 2 Stubby LHCP Antenna Combo Set for Digital HD FPV Goggles RP-SMA

Features:

Specially designed for DJI high-definition digital FPV glasses, higher gain, more
stable video transmission effect, better signal penetration for longer
distances, high-gain directional and LHCP circularly polarized
omnidirectional antenna, the shell is translucent black, Translucent
green, semi-transparent orange three colors choose PC injection molding
integrated high-quality shell.

FOR DJI HD 2 Flat Panel Directional Antenna

Model: LHCXRC HD-02

Frequency range: 5.3GHz-6.0GHz

Gain: 8.6 dBiC

VSWR: <=1.3

Radiation efficiency: 94%

Beam width: 75 H. 75 V.

Polarized: (LHCP) Left Hand Circularly Polarized

Interface: RP-SMA (Fits DJI Goggles directly, not to be used on standard SMA)

Weight: 31g

FOR DJI HD2 Cylindrical Antenna

Gain: 3.5dbic

Axle ratio: 0.9

Frequency range: 5.3GHz-6.0GHz

Radiation efficiency: 98%

Beam width: 360 degrees (omni-directional)

VSWR: <=1.5

Weight: 6.5g

Size: 20mm x 28mm

Interface: RP-SMA (custom long)

Polarization: Left Hand Circularly Polarized (LHCP)
