Specification:
Brand:RadioLink

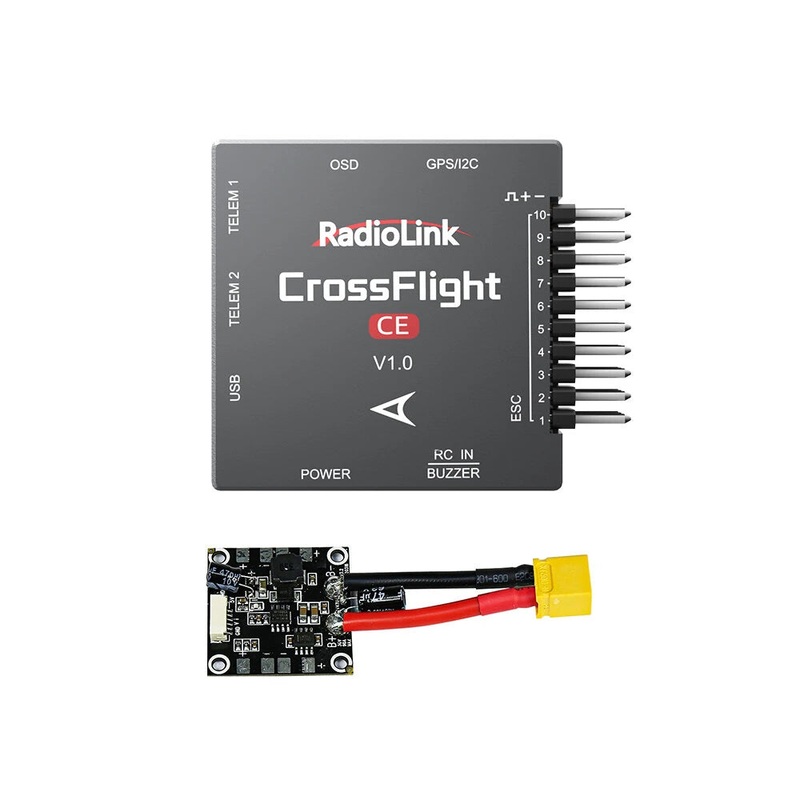

Model:CrossFlight-CE
|
Weight & Dimension |
Dimension |
39.7*39.7*12.1mm (1.56’*1.56’*0.48′) |
|
Weight |
16.5g(0.58oz) 54g(1.9oz when all the connect wires included) |
|
|
Hardware |
Processor |
HC32F4A0PITB |
|
Sensor |
Gyro & Accelerometer |
QMI8658A |
|
Compass |
VCM5883L |
|
|
Barometer |
SPA06-003 |
|
|
OSD Module |
OSD Module AT7456E Integrated |
|
|
FRAM |
Without FRAM, use the internal flash to store parameters, 2617 waypoints for multi-copters, and 2623 waypoints for airplanes, cars, and boats. |
|
|
Buzzer |
1 |
|
|
Switch |
None |
|
|
Connector |
Type |
JST GH1.25 Connector |
|
PWM Output |
10-channel PWM output |
|
|
Mavlink UART |
2(without CTSRTS) |
|
|
USB Port |
1(Type-C) |
|
|
GPS UART/I2C Port |
1 |
|
|
Signal Input |
PPM/SBUS/CRSF |
|
|
RSSI Output |
Support |
|
|
ESC Protocol |
PWM, DShot, and OneShot Protocol |
|
|
RTK |
Support |
|
|
Power ModuleSpecifications |
Weight |
16.5g(0.58oz) without wire |
|
Input Voltage |
2-12S |
|
|
MaximumDetection Current |
90A |
|
