Radiolink Pixhawk PIX APM 32 Bit Flight Controller SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Flight Controller

Tool Supplies: Assembled class

Technical parameters: Value 2

Size: 8.2*4.3*1.7cm

Remote Control Peripherals/Devices: Receivers

Recommend Age: 14+y

RC Parts & Accs: Receivers

Quantity: 1 pcs

Origin: Mainland China

Model Number: VZJU5550

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: U-Angel-1988

• M8N SE100 GPS x 1

• Metal rod bracketx 1

• Connecting cable x 1

• Metal fixing gasket x 2

• Foam fixed sticker x 1

Package Include (Separately Purchase):

• A.GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K

• B.Geomagnetic I2C interface

• Current: 50~55mA

• Sensitivity Tracking&Nav: -167dBm; Reacquisition: -163dBm

• Sensitivity Cold Start: -151dBm; Hot start: -159dBm

GPS Connect Ports:

• Velocity Precision: 0.1m/s

• Max Height: 50000m

• Max Speed: 515m/s

• Max Acceleration: 4G

• Update Rate: 10Hz

• Time to First Fix: Cold start: 26s, Hot start: 1s

• Power Supply: voltage 5VDC5%

• Size: 1.89*1.6*0.59in

• Current: 50~55mA

SE100 GPS Module Specification:

High-performance: Added GPS signal search satellite indicator function, and obtained exclusive patent, achieving high configuration, low price, giving the model friend a very cost-effective product.

Positional Accuracy and Quick: 50 centimeter precision when working with concurrent GNSS, positioning 20 satellites in 6 seconds at open ground and valley station-keeping ability. Support Reception of GPS, QZSS L1 C/A, GLONASS L10F, BeiDou B1.

Top Configuration: Design with U-box UBX-M8030(M8), 72-channel, is better than GNSS 7N. 2.5dbl Ceramic Antenna and HMC5983 from Honeywell.

Mini Size: This mini GPS for Radiolink Pixhawk Flight Controller, only 1.89*1.6*0.59in, its perfect for you racing drone and quadcopter. Excellent Stable: The ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter.Double Filter:SAWF(Surface acoustic wave filter)form Murata,Independent dual filtering technology, stronger anti-interference ability.

SE100 GPS Features:

SE100 GPS Module

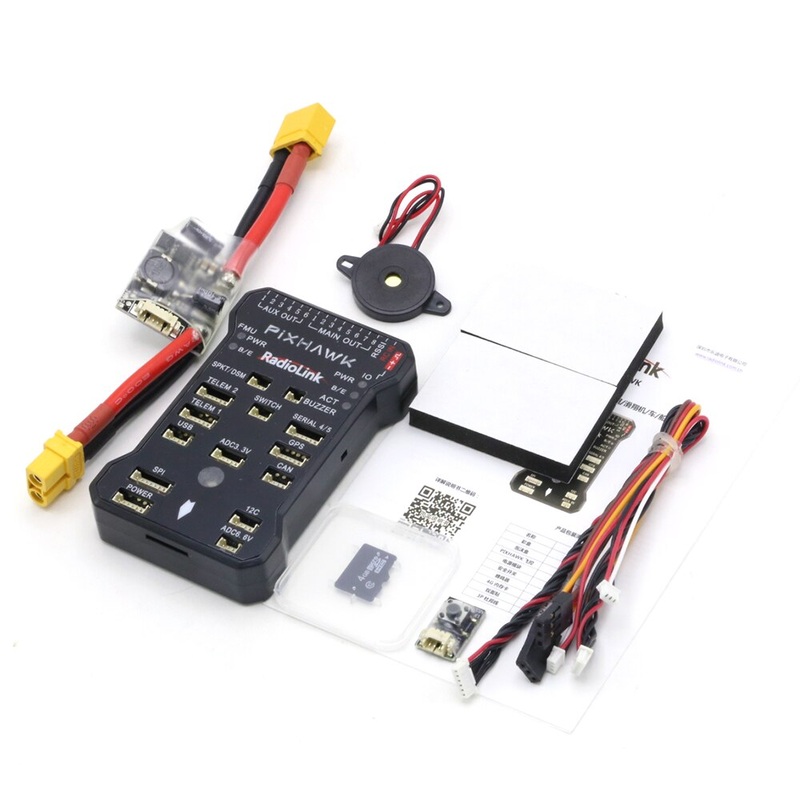

• PIXHAWK x 1

• Power Module (2s-6s)x 1

• Safety Button x 1

• Double-Sided Adhesive Tape x2

• Buzzer x 1

• Micro-SD TF Card(4G) x 1

• Three-wire Servo Cable x 1

• Safety Button Connect Cable x1

• Receiver Connect Cable x1

• Power Module Connect Cable x1

Package Included(Separately Purchase Pixhawl)

• Connector Port: JST GH connector

• Receiver In: PPM/SBUS

• Transmitter: 6 oneshot/PWM

• USB Voltage: 5v+-0.3v

• Work Voltage: 5.1v

• Work Temperature Rang: -40~80

• Support Models:Long-wheelbase Quadcopter/6-8 Axis Multirotor

• Mini Pix Size: 8.2*4.3*1.7cm

• Weight: 30g

PIXHAWK Flight Controller Specifications:

A Good Choice for DIY Drone

Complete installation tutorial, easy to set up, eliminating the cumbersome and complicated installation and calibration process, making your DIY racing drone easier. The Mission Planner can be downloaded from the official website of the Radiolink brand for debugging.

Radiolink PIXHAWK supports a variety of fixed-wing and helicopters, vehicle models and boat models. Supporting Althold, Stabilize, Loiter, Poshold, Returnand other flight modes.

Easy to Set Up
No complicated setup for beginner and professor player, download the Mission Planner from Radiolink website. Via USB cable connect PIX and computer, easy to operation calibration settings on Mission Planner. Then, enjoy your fly.

• 32 bit 32F427 ARM Cortex M4 Core + FPU (floating point unit)

• 168 MHZ / 256 KB RAM / 2 MB Flash

• 32bit Fault Protection Coprocessor

• ST Micro L3GD20H 16 bit gyroscope

• ST Micro LSM303D 14 bit accelerometer/magnetometer

• MPU 6000 3-axis accelerometer/gyroscope

• MEAS MS5611 barometer

Top Configuration

Radiolink Pixhawk Description:

• High-end Configuration–Advanced 32F427 ARM Cortex M4 Core high-performance processor, 32bit fail-safe co-processor, MPU 6000 3-axis accelerometer.

• Excellent Performance–New layout and technical upgrade base on 3DR PIX. A powerful hardware device can create, you can implement more functions as you want by simple programming.
