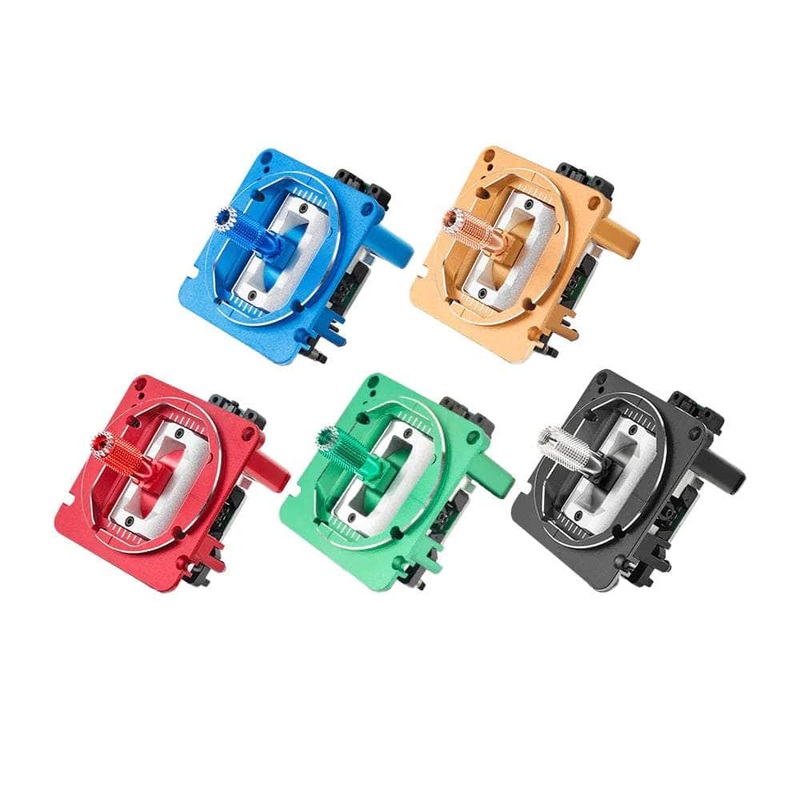

The RadioMaster AG02 CNC Hall Gimbal Set, are precision-engineered from machined aluminum, offering adjustable travel on both vertical and horizontal axis for highly responsive, customizable control. A redesigned, lightweight structure reduces rotational inertia by 21.6% compared to the previous generation, delivering smoother, faster stick input for improved response. Equipped with advanced Hall effect sensors, the AG02 provides low-noise, rapid response, and exceptional accuracy. The anodized aluminum finishavailable in Black, Red, Blue, Green or Goldoffers durability with a refined, professional look. Mounting is fully compatible with AG01 gimbals, ensuring an easy upgrade path.
Check out ourRadioMaster collectionand all ourRC transmitters!
Features
- Full Aluminum Construction: Key structural areas are optimized to reduce rotational inertia by over 20% while maintaining rigidity, delivering smoother and more responsive control.
- Next-Generation Low-Noise Hall Sensors: Offer ultra-fast response without compromising accuracy or stability.
- Adjustable Travel: Vertical and horizontal Travel adjustment for the perfect feel for any pilot.
- Quad precision bearings: For unparalleled stick feel.
- 100% Mounting Compatibility with Previous Generations: If you already use full-size RadioMaster gimbals, the AG02 can be directly installed as an upgradeno modifications required.
- Designed for RadioMaster TX16, TX15, Boxer Radio Controllers
Specifications
- Sensor Type: Hall Analog
- Operating Voltage: DC 3.3V
- X-Axis Travel Adjustment Range: 30 56
- Y-Axis Travel Adjustment Range: 38 54
- Throttle Mode Switch (Mode 1/2) Without Disassembly: Supported
- Spring Tension Adjustment Without Disassembly: Supported
- Quad Ball Bearings: Yes
- Operating Temperature Range: -20C to +85C
- Dimensions (Excluding Stick Ends): 53 53 33.3 mm
- Weight: 73 g 1 g (per unit)
- Gimbal Sticks: M4
Includes
- 2x RadioMaster AG02 CNC Hall Gimbals
- 2x High Tension Springs
- 1x GH1.25-SH1.25 adapter board (Boxer/TX16sMKII)
- 4x PB2.3 x 10 Mounting Screws
- 1x Hex Wrench
- 1x User Manual
