RadioMaster ER4 2.4 PWM ELRS Receiver – Restocking

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

TheER4 PWM receivercan drive 4 servos simultaneously. Designed with a very small volume, it is suitable for small aircraft models, ship models, car models and other models that require a small or lightweight receiver while still providing full range.

Launch Video

Features

• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, fast response speed and ultra-long range
• Support 4 PWM Channel
• Optimized ground up PCB design
• Automatically voltagetelemetry of external battery voltage or built-in receiver voltage
• Supports Wi-Fi updates and WEBUI configuration
• High quality 2.54 mm connector
• Standard 15 cm High Sensitivity Antenna
• For small aircraft, boats and cars and more
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification

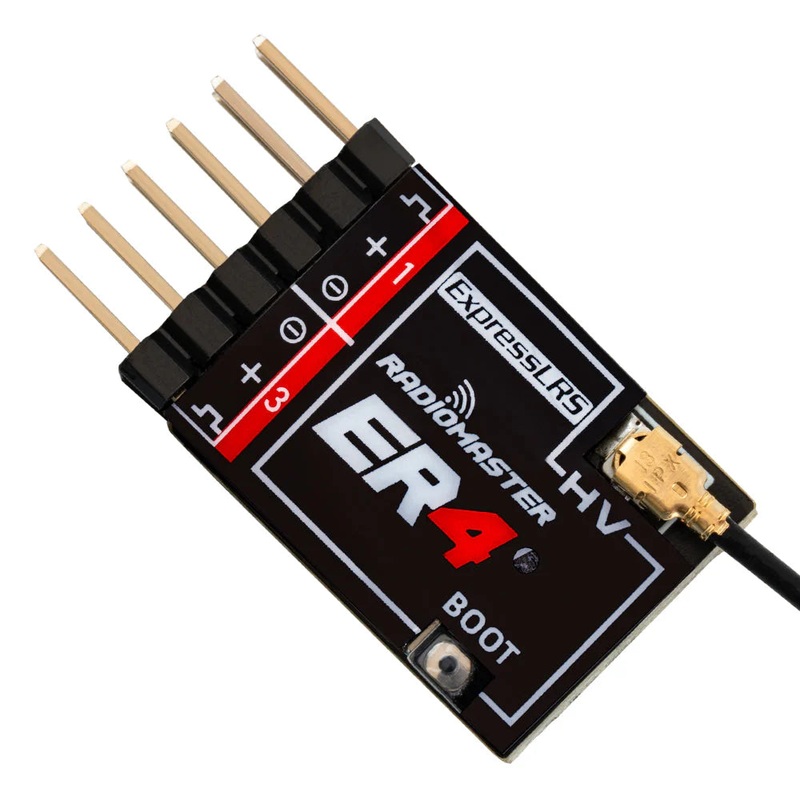

• Item: ER4 2.4GHz ELRS PWM Receiver
• Power supply: DC 4.5 – 8.4V
• Antenna type: 15cm high sensitivity antenna
• Wireless protocol: ExpressLRS 3.3.0 pre-installed
• Output channel: 4CH PWM
• Serial Output: CRSF / Sbus
• Telemetry power: 10mw
• Battery voltage detection range: DC 4.0- 35V
• Weight:3.0 grams
• Dimensions: 30*15*5mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER4 2.4GHz PWM RX

Size

Download

• ER4Receiver User Manual

Package Includes

• 1 * ER4 2.4GHz ELRS PWM Receiver
• 2 * Heat-shrink tube
• 1 * Voltage telemetry wire (Type-A)
• 1 * User Card
