Are you looking to buy a Radiomaster RP3 ELRS Nano Dual Antenna Receiver in Australia?
The RadioMaster RP series of receivers are designed with size, ease of use and range in mind. Utilizing ExpressLRS 2.4ghz Open-source firmware the RP series of nano receivers deliver features and range today’s pilots have come to expect.
Developed around the ESP8285 MCU and SX1280IMLTRT RF Chip the RP series offer Lora and FLRC 2.4ghz RF links offering incredible range and low latency. With Wifi built in FW updates can be done on your craft without the need to remove the receiver. Binding can be done using a bind phrase meaning no more bind plugs or fiddly button presses while trying to plug in your battery.
The RP3 receiver features a Skyworks SE2431L providing an LNA for improved receiver performance, a PA providing up to 250mw of telemetry performance and antenna switching for antenna diversity.
Features
- OptimizedPCBdesignforbetter heatdissipation.
- LNAforbetterreceiverrange.
- PAforbettertelemetryrange.
- AntennaDiversityforimprovedsignalstabilityandrange.
Specifications
- Item:RP3DiversityReceiver
- Type:ISM
- MCU:ESP8285
- RFChip:SX1280IMLTRT
- TelemetryRFpower:max250mw
- Antenna:65mm2.4ghzTAntennax2
- FrequencyRange:2400MHzto2480MHz
- Maximumreceiverefreshrate:500Hz/F1000Hz
- Minimumreceiverrefreshrate:25Hz
- Workingvoltage:5v
- Weight:4.6g(Includingtwoantenna)
- Dimension:22mm*13mm*4mm
- FirmwareVersion:ExpressLRSv3.0pre-installed
- FWTarget:RadioMasterRP3Diversity2400RX
- Businterface:CRSF
Package Includes

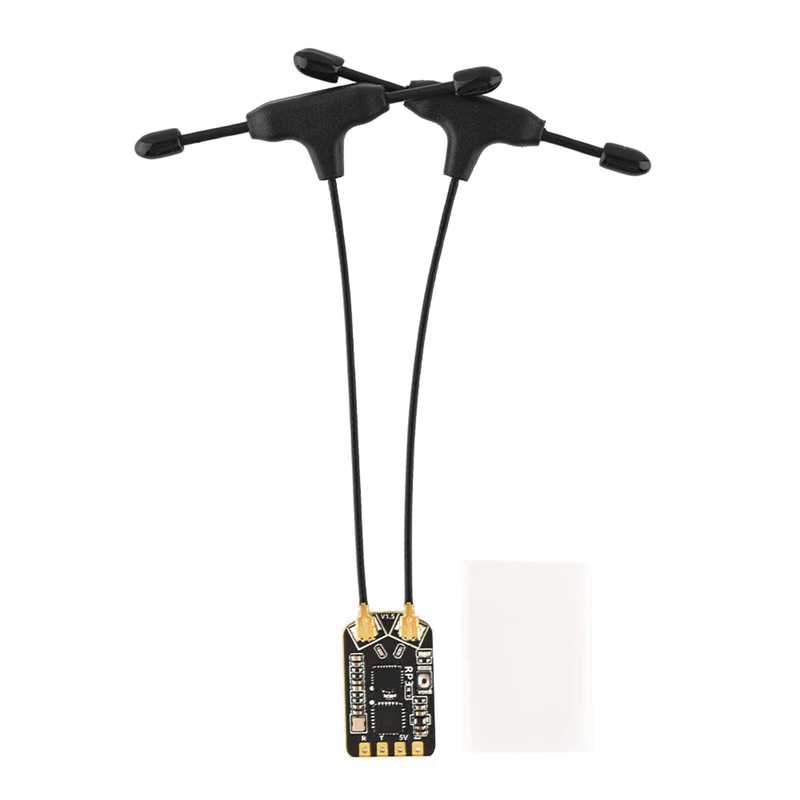

- 1x RP3 ExpressLRS 2.4ghz Nano Receiver
- 2x65mm UFL 2.4Ghz T Antenna
- 1x User Manual
