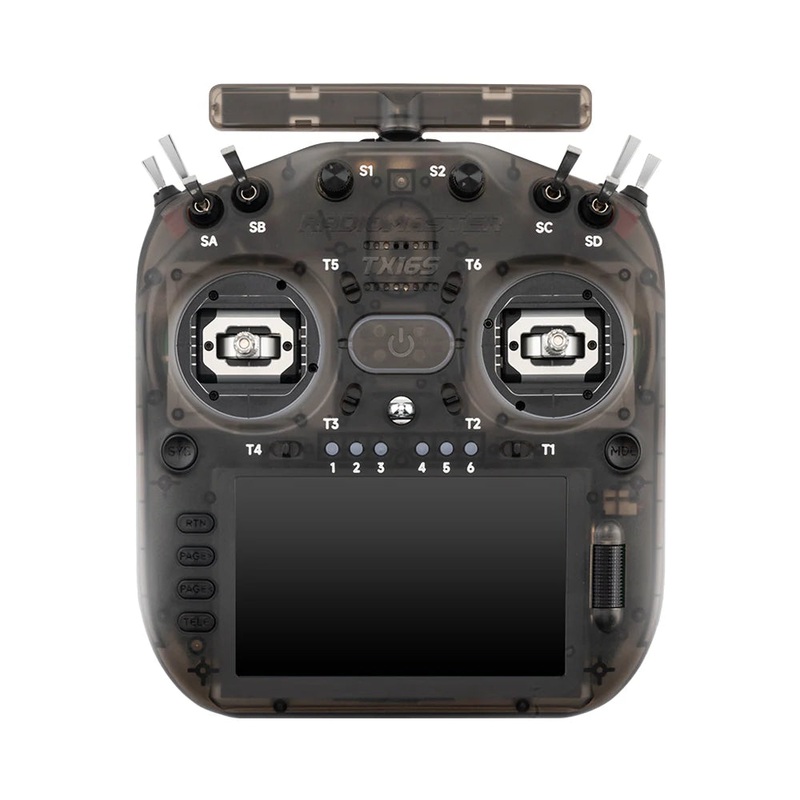

Radiomaster TX16S MK3 Radio Controller – Transparent Charcoal

Radiomaster TX16S MK3 Memory Update

Our current stock of Radiomaster TX16S MK3 radios comes with 4GB internal memory.

Radiomaster has officially announced a transition to 512MB internal flash for all future production of the TX15 and TX16S MK3 radios.

All orders up to now are covered with 4GB units. Once this batch is sold out, incoming radios will feature 512MB internal memory.

If you prefer the 4GB version, now is the timeonce these are gone, theyre gone.

There are no changes to performance or functionality. The 512MB version remains more than sufficient for normal use, and all radios continue to support external SD cards.

RadioMaster TX16S MK3 Radio ControllerThe next evolution of the legendary TX16S platform faster, smoother, and more refined, with a bright 5 IPS touchscreen, V6 Hall gimbals, and a dual-band Gemini ExpressLRS internal RF system.

Launch Video

Features

• High-performance MCU: STM32 H7 for maximum processing power
• 5 800480 IPS touchscreen display with vivid color and sharp detail
• V6 quad-bearing Hall sensor gimbals (AG02 compatible)
• RGB programmable gimbal light rings (LUA-controlled)
• Internal dual-band Gemini RF: 2.4GHz + Sub-G 900MHz
• Smart balance battery circuit to maximize efficiency and longevity
• Cooling system with low-noise fans + aluminum heat sink
• Digital audio for improved sound quality and reduced interference
• Dual foldable antennas for compact storage without sacrificing signal
• Built-in microphone (future feature expansion)
• Automatic backlight adjustment for indoor/outdoor visibility
• Built-in motion sensor (trigger switches, camera pan/tilt, telemetry callouts)
• 4GB onboard flash + microSD support
• Removable shoulder switch panels for personalized layouts

GalleryBlackTransparent CharcoalSpecifications

Item	TX16S MK3 Radio Controller
Color	Black / Transparent Charcoal
Voltage Range	6.6 8.4V DC
Working Current	1.10A (at max RF output power)
Radio Firmware	EdgeTX (requires 3.0.0 or higher)
Built-in RF Module	ExpressLRS (2 LR1121)
Frequency	ISM 2.4GHz and Sub-G 900MHz
Number of Channels	Up to 16ch
Gimbals	V6 Hall sensor gimbals (standard)
MicroSD Card Slot	Yes (card not included)
Internal Storage	Integrated 4GB onboard flash memory
Display	5 IPS touchscreen (800 480)
Battery (not included)	2 18650 Li-ion / 21700 5000mAh Li-ion / 2S 7.4V 6200mAh LiPo
Upgrade Method	USB / EdgeTX Companion PC software
Module Bay	JR-compatible module bay
Dimensions	200 178 88mm
Weight	813g (without battery)

More DetailsPackage Includes

• 1 TX16S MK3 Radio Controller
• 1 TX16S MK3 Signature Carry Case
• 1 18650 Battery Tray
• 2 Replacement Shoulder Panels
• 1 Type-C Cable
• 1 Screen Protector
• 1 1.5mm Hex Wrench
• 4 Low Tension Gimbal Springs
• 2 Gimbal Stick Set Screws
• 1 Nylon Neck Strap (Lanyard)
• 1 RadioMaster Sticker Set
• 1 TX16S MK3 Manual
• 1 Inventory Card

More Photos
