Overview

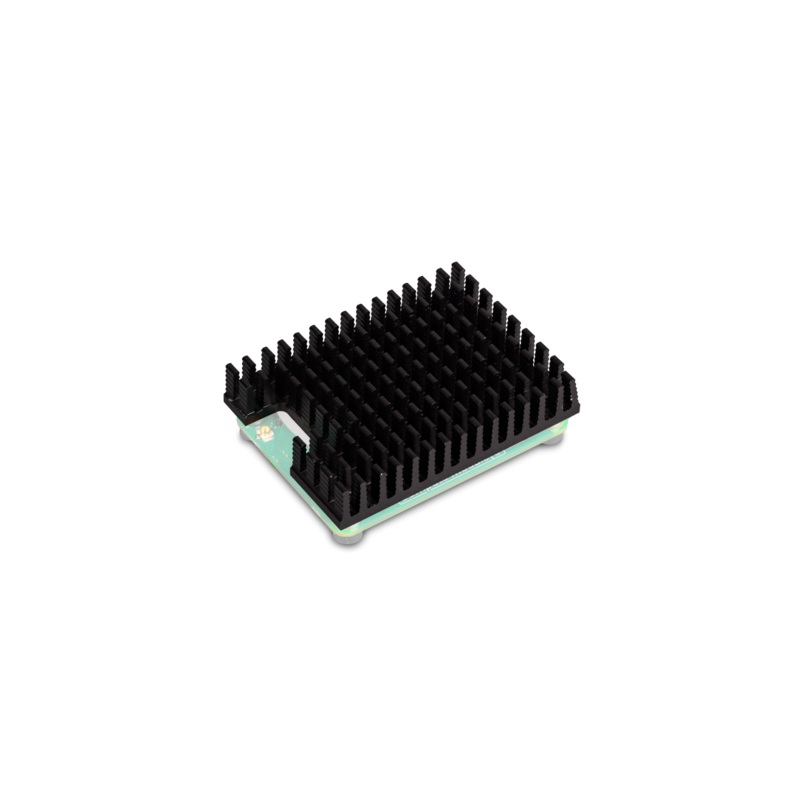

The Raspberry Pi Compute Module 5 Passive Cooler is a passive heatsink designed for the Raspberry Pi Compute Module 5 (CM5). It aids heat dissipation to help maintain CPU performance and adds mechanical protection. A thermally conductive silicone layer on the underside couples the cooler to the CM5 CPU, wireless module, and power management chip for efficient heat transfer.
Note: Passive Cooler only CM5 not included.
Key Features
- Passive aluminum heatsink engineered for Raspberry Pi Compute Module 5
- Thermally conductive silicone interface couples to CPU, wireless module, and PMIC
- Improves heat dissipation and helps sustain processor performance
- Four M2.5 mounting points (per drawing)
- Production lifetime guaranteed until at least January 2036
Specifications
| Form factor | 56 mm 41 mm 12.7 mm |
| Product material | Aluminium profile, thermally conductive silicone |
| Mounting holes | 4 M2.5 |
| Production lifetime | The Raspberry Pi Cooler for Raspberry Pi Compute Module 5 will remain in production until at least January 2036 |
| Compliance | For a full list of local and regional product approvals, please visit pip.raspberrypi.com |
| HSCODE | 7616999000 |
| USHSCODE | 7612905000 |
| EUHSCODE | 7616991091 |
| COO | CHINA |
Whats Included
- Raspberry Pi Compute Module 5 Passive Cooler 1
Manuals
- Raspberry Pi Cooler product brief
Details
Raspberry Pi Compute Module 5 Cooler dimensions in mm, approximate for reference only, subject to change and manufacturing tolerances.
